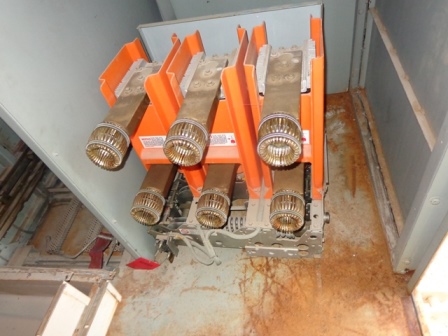

3800/4200 Amp, GENERAL ELECTRIC, VB13.8-1000-3, 15 KV, 125 VDC
VACUUM BREAKER
Product Number:
039561
Full Product Description
CB-17847:
ONE (1) 3800 AMP GENERAL ELECTRIC VACUUM BREAKER
TYPE VB13.8-1000-3
4200 AMP FORCE AIR COOLED RATING
15 KV
60 HERTZ
95 KV BIL
5 CYCLE INTERRUPT
37 KA SHORT CIRCUIT
1.3 RATED VOLTAGE RANGE FACTOR
77 KA CLOSE & LATCH
125 VDC CLOSE & TRIP
ML-18 MECHANISM
43A7 VACUUM INTERRUPT
INST. BOOK GEK-39671
CONNECTION DIAGRAM 0209B3713P002
MFG. 1988
760 LBS.
S/N 0329A9186-001-01
