20090/30000 KVA, Pri 60000Y/34640 X 115000Y/66395 , Sec 12000 Y, GE, LTC

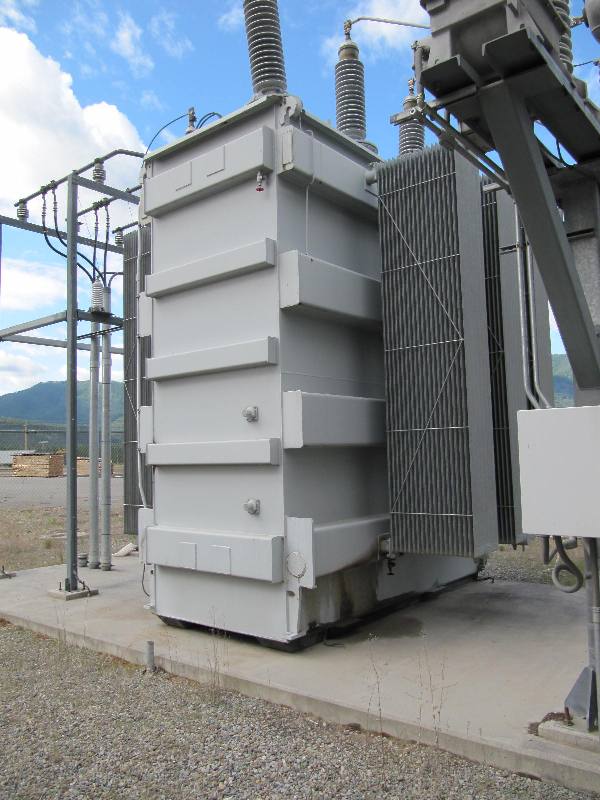

ONE (1) 20090/26785/30000 KVA GENERAL ELECTRIC LOAD TAP CHANGING TRANSFORMER,
3 PHASE, 60 HERTZ, CLASS OA/FA/FA, 55/65 DEG. C RISE, 7.93% IMPEDANCE

HIGH VOLTAGE: 60000GRY/34640 BIL: 550 KV
HIGH VOLTAGE: 115000GRY/66395 BIL: 350 KV
LOW VOLTAGE: 12000 WYE BIL: 110 KV
HV TAPS: 121000-118000-115000-112000-109000
LV TAPS: 13200 TO 10660 IN 32 STEPS

TOTAL WEIGHT: 149,200 LBS.
CORE & COILS: 57,300 LBS.
TANK & FIT.: 36,700 LBS.
TANK OIL: 55,100 LBS.
LTC OIL: 1,100 LBS.
