  2. 7500 KVA, Pri 34500 D, Sec 4160Y/2400, 1998, CAST COIL, OUTDOOR, COPPER:1

7500 KVA, Pri 34500 D, Sec 4160Y/2400, 1998, CAST COIL, OUTDOOR, COPPER:1

https://belyeapower.redstormlabs.com/web/image/product.template/29131/image_1920?unique=e3adc27

OUTDOOR DRY TYPE TRANSFORMER

$ 0.00 0.0 USD $ 0.00

$ 0.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Product Number: 039509
    Request Quote

    Full Product Description

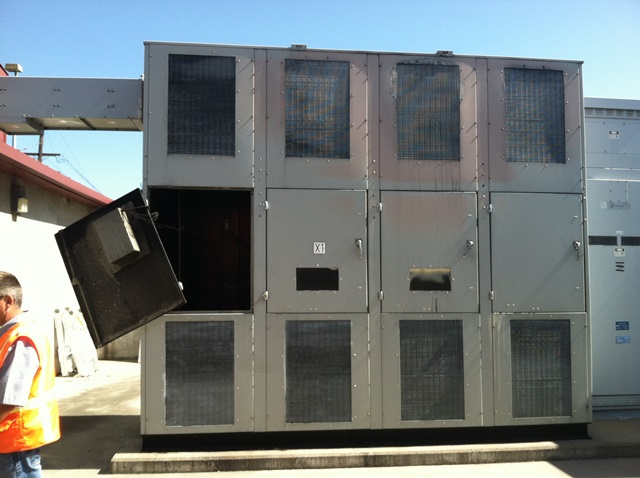

    ONE (1) 7500 KVA CUTLER-HAMMER OUTDOOR CAST COIL TRANSFORMER, 3 PHASE,
    60 HERTZ, CLASS AA, 80 DEG. C RISE, COPPER WINDINGS, ELECTRONIC
    TEMPERATURE CONTROLLER, MFG. 1998

    HIGH VOLTAGE: 34500 DELTA BIL: 170 KV
    LOW VOLTAGE: 4160Y/2400 BIL: 60 KV
    TAPS: 36225-35362-34500-33637-32775

    TOTAL WEIGHT: 45,000 LBS.
    DIMENSIONS: 140"H X 160"L X 80"D
    HV BUSHING: 13"H
    LV BUSHING: 128"H
