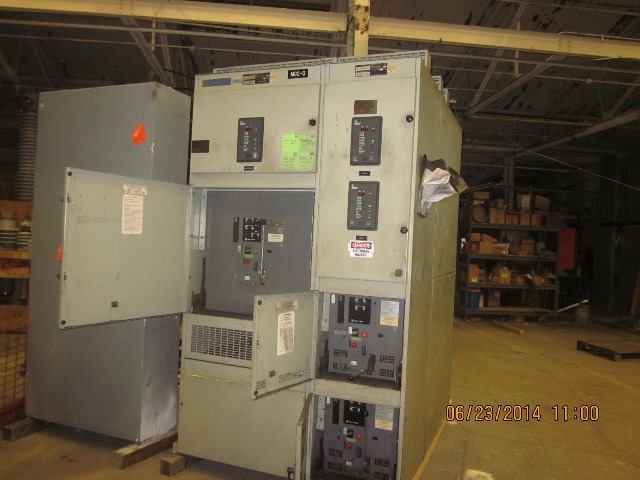

1600 Amp, WESTINGHOUSE, DSL-416, 480 V., FUSED, MO/DO, 1600A SENSORS, AMPTECTOR
AIR CIRCUIT BREAKER
Product Number:
039485
Full Product Description
CB-17802

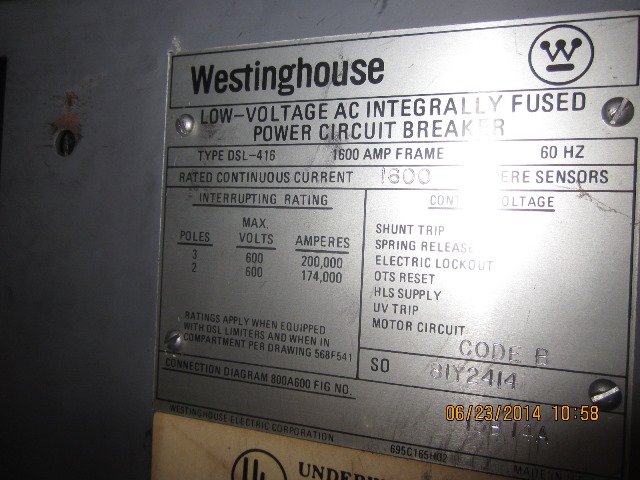

(1EA) WESTINGHOUSE AIR CIRCUIT BREAKER
480 VOLT
1600 AMP
TYPE: DSL-416
MANUALLY OPERATED
DRAW-OUT
FUSED

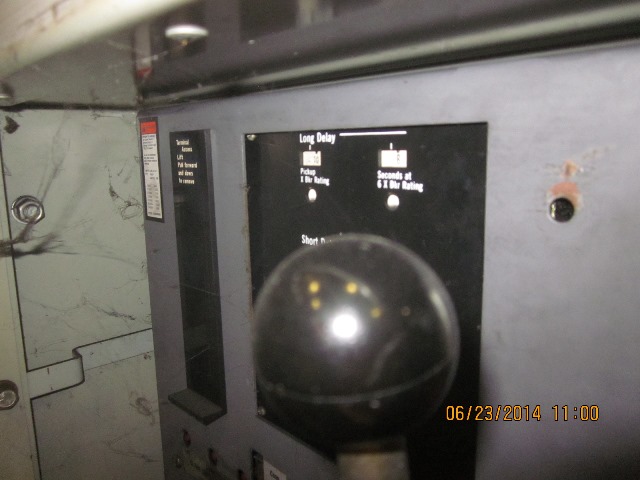

AMPTECTOR II LS
1600 AMP SENSORS
3 POLES - 600 VOLT MAX. - 200 KA INTERRUPT
2 POLES - 600 VOLT MAX. - 174 KA INTERRUPT
CONNECTION DIAGRAM 800A600 FIG. NO. 13B 14A
UL LISTED
(1EA) WESTINGHOUSE AIR CIRCUIT BREAKER
480 VOLT
1600 AMP
TYPE: DSL-416
MANUALLY OPERATED
DRAW-OUT
FUSED
AMPTECTOR II LS
1600 AMP SENSORS
3 POLES - 600 VOLT MAX. - 200 KA INTERRUPT
2 POLES - 600 VOLT MAX. - 174 KA INTERRUPT
CONNECTION DIAGRAM 800A600 FIG. NO. 13B 14A
UL LISTED
