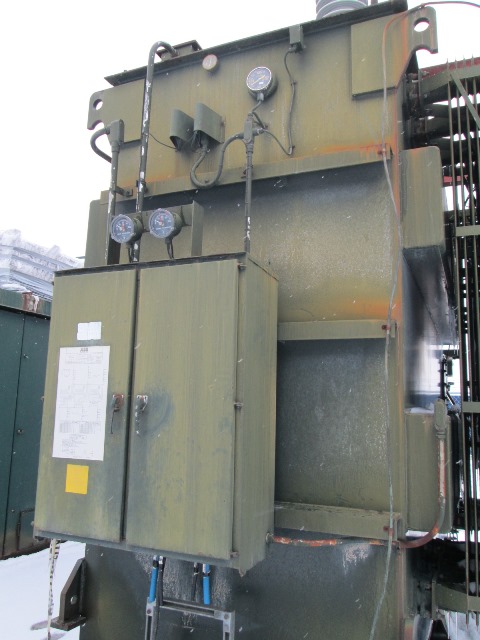

10000/13333 KVA, Pri 141450 D, Sec 13800Y/7967.4, 1991, ABB:1

ONE (1) 10/13.33* MVA ABB SUBSTATION LOAD TAP CHANGING TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS ONAN/ONAF, 55 DEG. C RISE, 6.9% IMPEDANCE, ALUMINUM
WINDINGS, MFG. 1991

HIGH VOLTAGE: 141450 DELTA BIL: 650 KV
LOW VOLTAGE: 13800Y/7967.4 BIL: 95 KV
NEUTRAL: BIL: 95 KV
TAPS: 158700 - 124200 IN 16 STEPS

TOTAL WEIGHT: 104,300 LBS.
CORE & COILS: 32,000 LBS.
TANK & FIT.: 32,800 LBS.
OIL: 39,500 LBS. (4,540 GALS.)


*11200/14933 WITH A 65 DEG. C WINDING RISE
12500/15833 KVA AT 0 DEG. C AMBIENT
