  2. 1200 Amp, GENERAL ELECTRIC, VB1-13.8-500-1, 15 KV, 125VDC CLOSE & TRIP;

1200 Amp, GENERAL ELECTRIC, VB1-13.8-500-1, 15 KV, 125VDC CLOSE & TRIP;

https://belyeapower.redstormlabs.com/web/image/product.template/28968/image_1920?unique=fb47b93

VACUUM CIRCUIT BREAKER

$ 0.00 0.0 USD $ 0.00

$ 0.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Product Number: 039342
    Request Quote

    Full Product Description



    CB-17739

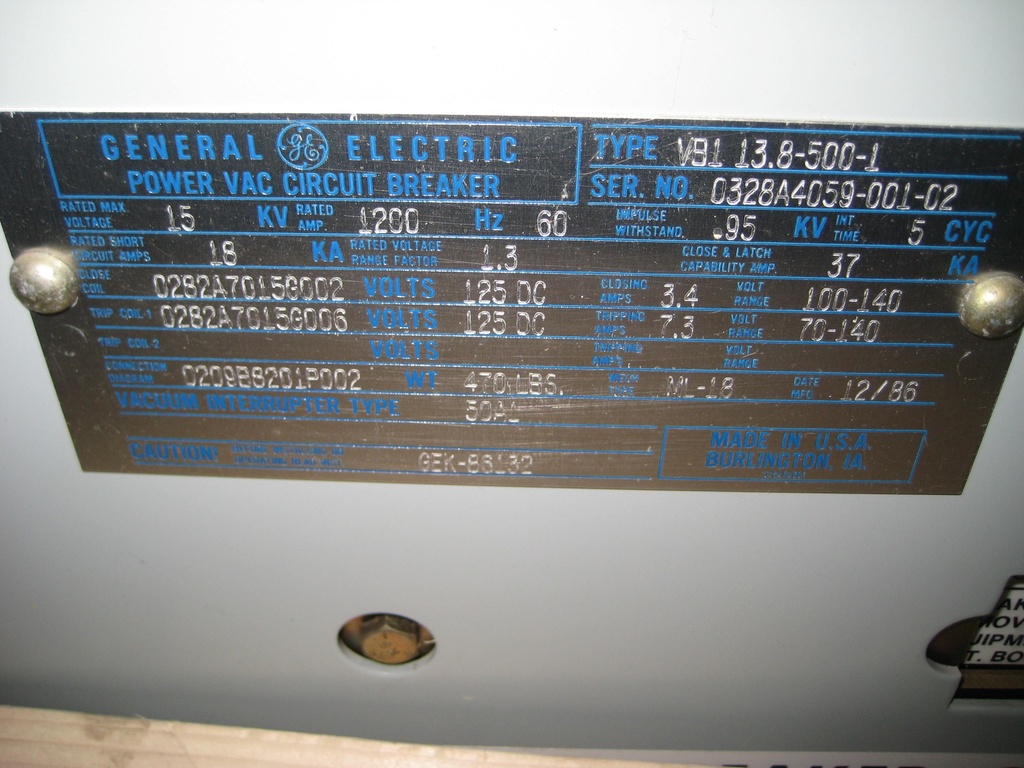

    ONE (1)- GENERAL ELECTRIC VACUUM CIRCUIT BREAKER
    - 15KV MAX
    - 1200 AMP
    - TYPE VB1-13.8-500-1
    - 3 PHASE
    - 95KV BIL
    - 5 CYCLE INTERRUPT
    - 18KA SHORT CIRCUIT
    - 37KA CLOSE & LATCH
    - 1.3 VOLTAGE RANGE FACTOR
    - ELECTRICALLY OPERATED (125VDC CLOSE & TRIP)
    - ML-18 OPERATING MECHANISM
    - VACUUM INTERRUPTER TYPE 50A1
    - WEIGHT: 470 LBS
