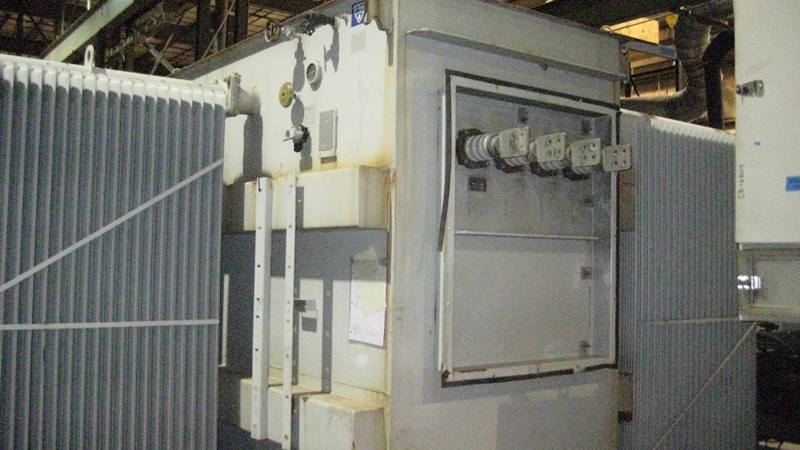

7500/10500 KVA, Pri 34500 D, Sec 4160Y/2400, 1997, COOPER, SUBSTATION:1
SUBSTATION TRANSFORMER
Product Number:
039208
Full Product Description
ONE (1) 7500/8400/9375/10500 KVA COOPER SUBSTATION TRANSFORMER, R-TEMP,
3 PHASE, 60 HERTZ, CLASS OA/FFA, 55/65 DEG. C RISE, 6.0% IMPEDANCE,

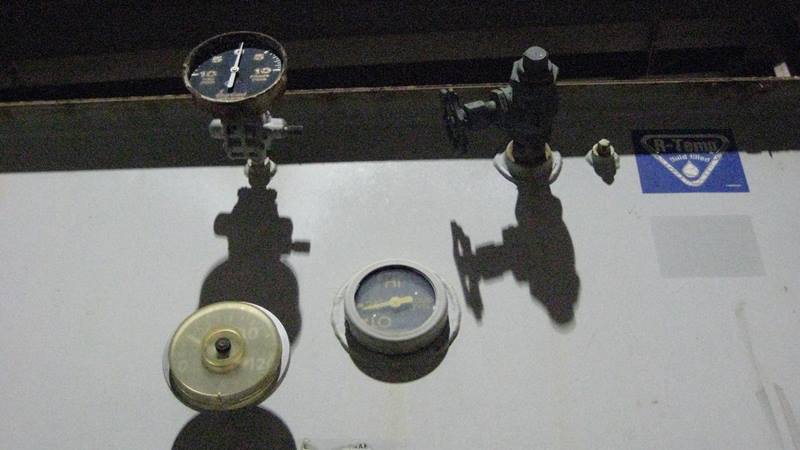

ALUMINUM WINDINGS, LIQUID LEVEL INDICATOR, LIQUID TEMPERATURE
INDICATOR, PRESSURE VACUUM GAUGE, DRAIN AND LOWER FILTER PRESSURE
VALVE WITH SAMPLER, UPPER FILTER PRESS VALVE, PRESSURE RELIEF DEVICE,
FLANGE X FLANGE BUSHINGS, MFG. 1997, S/N 976000639
HIGH VOLTAGE: 34500 DELTA BIL: 150 KV
LOW VOLTAGE: 4160Y/2400 BIL: 60 KV
TAPS: 36230-35360-34500-33640-32780
TOTAL WEIGHT: 38,560 LBS.
CORE & COILS: 16,755 LBS.
TANK & FIT.: 10,730 LBS.
R-TEMP: 11,075 LBS. (1,510 GALS.)

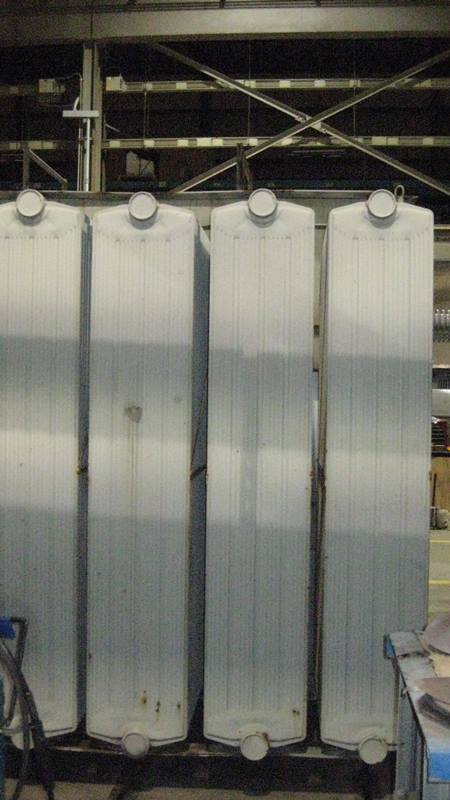

DIMENSIONS: 106.5"H X 120.1"W X 154.4"D (106.9"W WHEN RADS REMOVED)
3 PHASE, 60 HERTZ, CLASS OA/FFA, 55/65 DEG. C RISE, 6.0% IMPEDANCE,
ALUMINUM WINDINGS, LIQUID LEVEL INDICATOR, LIQUID TEMPERATURE
INDICATOR, PRESSURE VACUUM GAUGE, DRAIN AND LOWER FILTER PRESSURE
VALVE WITH SAMPLER, UPPER FILTER PRESS VALVE, PRESSURE RELIEF DEVICE,
FLANGE X FLANGE BUSHINGS, MFG. 1997, S/N 976000639
HIGH VOLTAGE: 34500 DELTA BIL: 150 KV
LOW VOLTAGE: 4160Y/2400 BIL: 60 KV
TAPS: 36230-35360-34500-33640-32780
TOTAL WEIGHT: 38,560 LBS.
CORE & COILS: 16,755 LBS.
TANK & FIT.: 10,730 LBS.
R-TEMP: 11,075 LBS. (1,510 GALS.)
DIMENSIONS: 106.5"H X 120.1"W X 154.4"D (106.9"W WHEN RADS REMOVED)
