  2. 7500/9375 KVA, Pri 46000 D, Sec 4160Y/2400, 1969, GENERAL ELECTRIC, SUBSTATION

7500/9375 KVA, Pri 46000 D, Sec 4160Y/2400, 1969, GENERAL ELECTRIC, SUBSTATION

https://belyeapower.redstormlabs.com/web/image/product.template/28805/image_1920?unique=632d99c

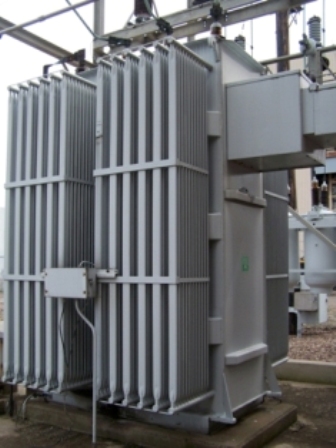

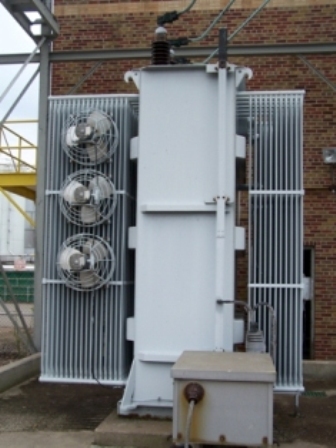

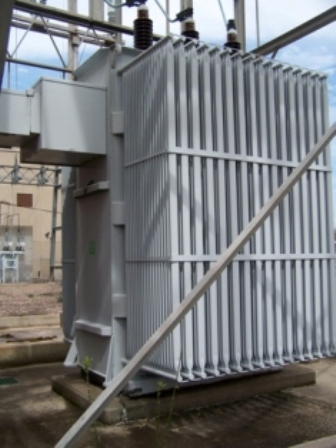

GENERAL ELECTRIC SUBSTATION TRANSFORMER

$ 0.00 0.0 USD $ 0.00

$ 0.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Product Number: 039174
    Request Quote

    Full Product Description

    ONE (1) 7500/9375 KVA GENERAL ELECTRIC SUBSTATION TRANSFORMER, 3 PHASE, 60
    HERTZ, CLASS OA/FA, 55 DEG. C RISE, 6.48% IMPEDANCE, MFG. 1969

    HIGH VOLTAGE: 46000 DELTA BIL: 250 KV
    LOW VOLTAGE: 4160Y/2400 BIL: 75 KV
    TAPS: 48500-47250-46000-44730-43500

    TOTAL WEIGHT: 42,000 LBS.
    CORE & COILS: 19,900 LBS.
    TANK & FIT.: 10,700 LBS.
    OIL: 11,400 LBS. (1,525 GALS.)
