1500/2000 KVA, Pri 13800 D, Sec 480Y, 1996, CUTLER HAMMER, CORE & COILS, COPPER

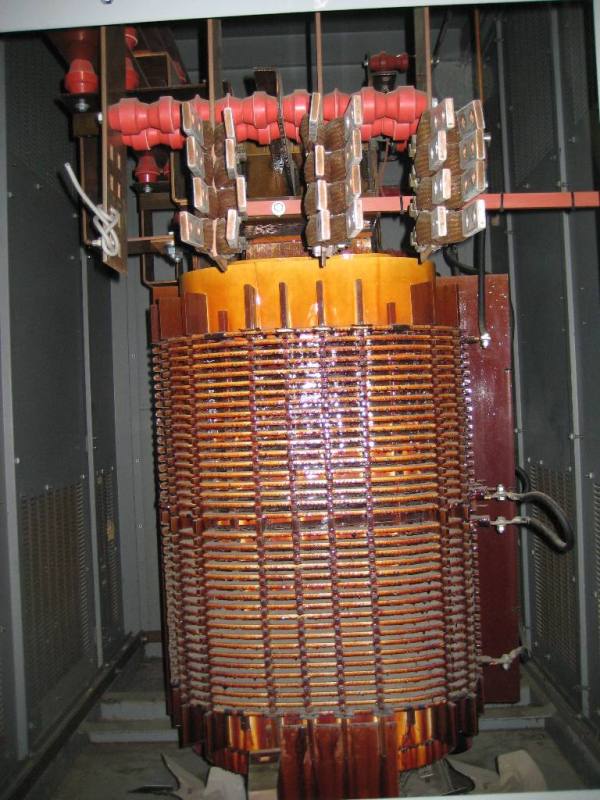

DRY TYPE TRANSFORMER - CORE & COILS
Product Number:
039166
Full Product Description
T-5672:

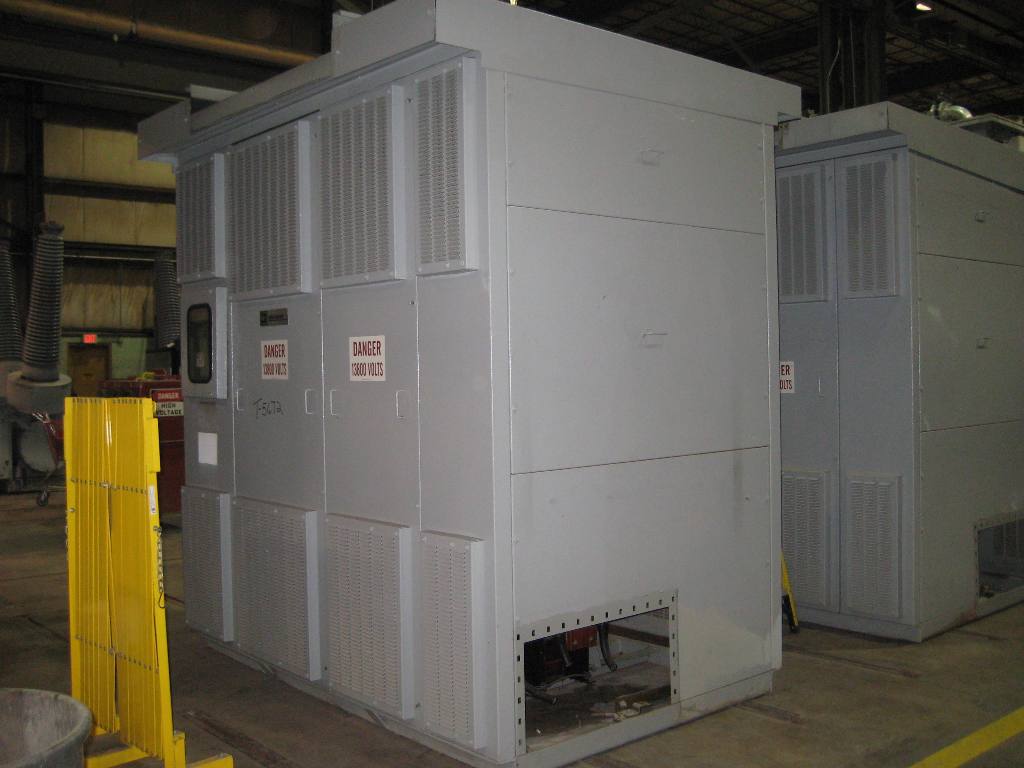

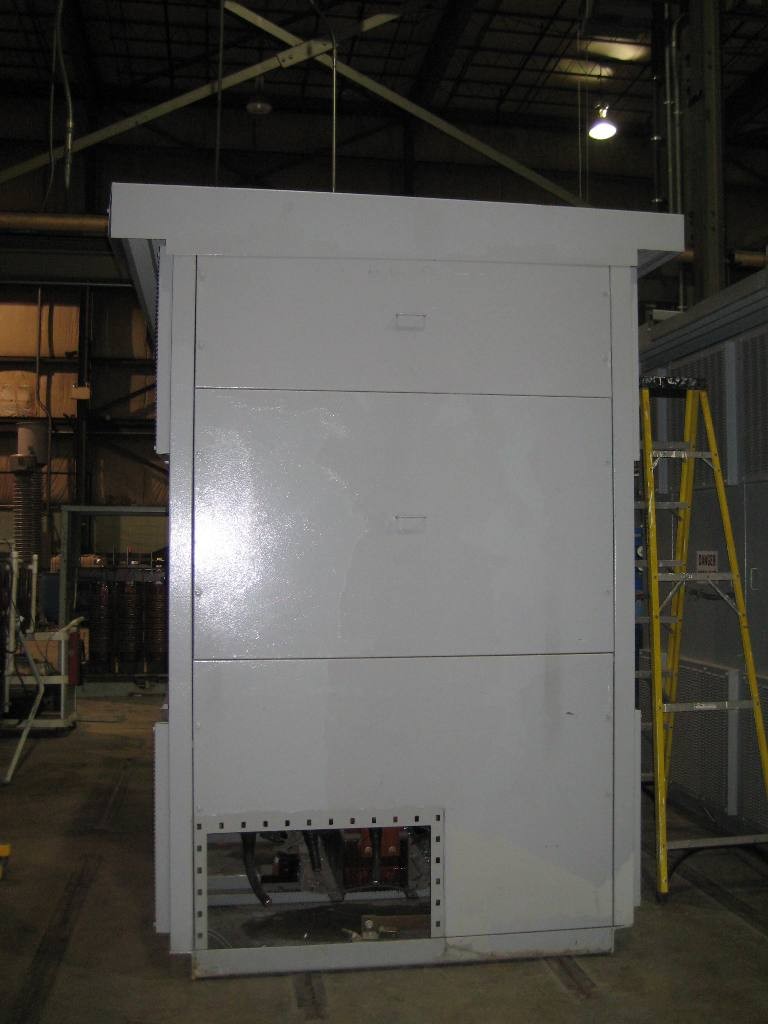

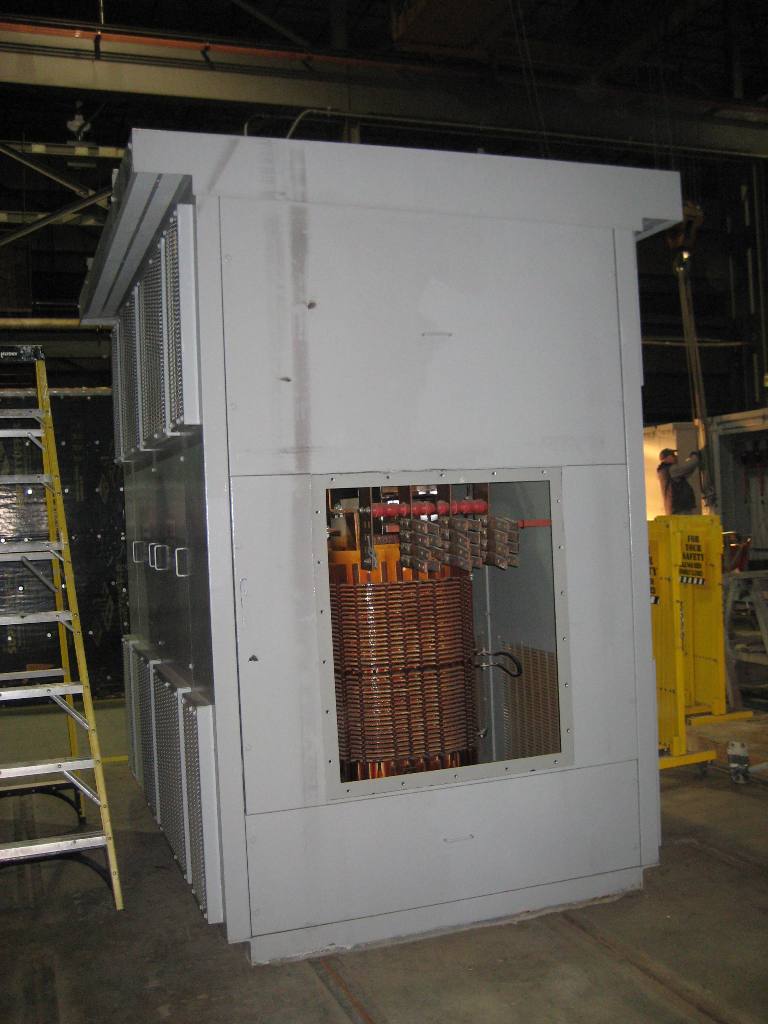

ONE (1) 1500/2000 KVA CUTLER HAMMER DRY TYPE TRANSFORMER, TYPE VPE, CORE &
COILS, 3 PHASE, 60 HERTZ, CLASS AA/FA, 150 DEG. C RISE, 5.61%
IMPEDENCE, COPPER WINDINGS, HV RIGHT SIDE, LV LEFT SIDE, INSTRUCTION

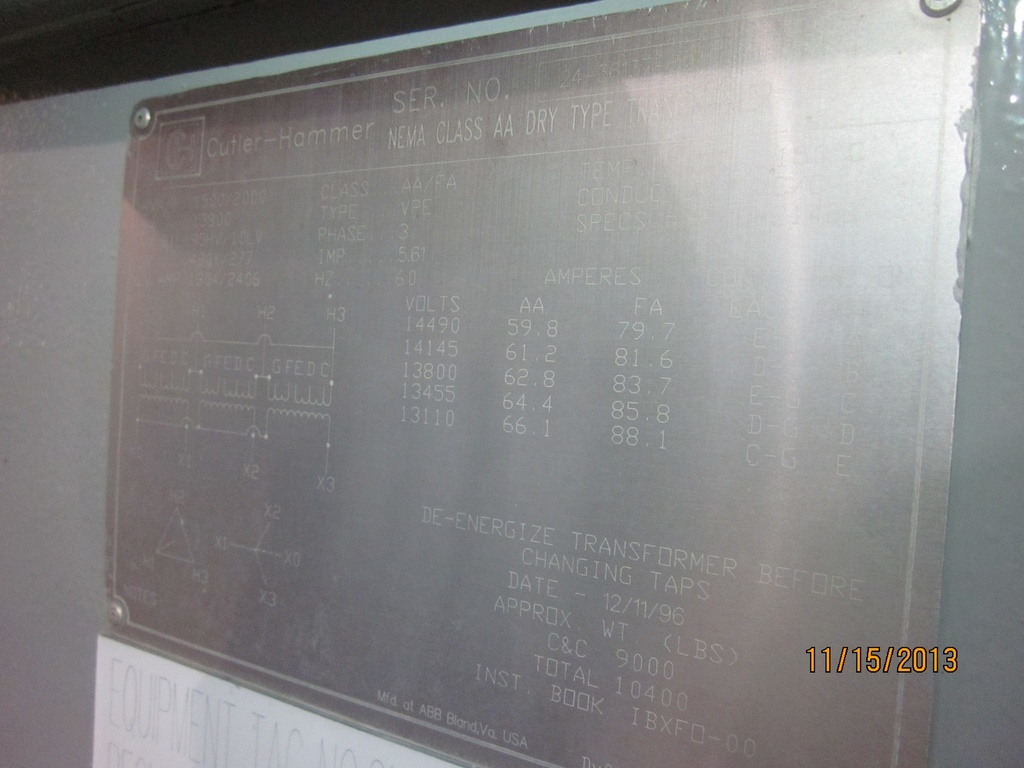

BOOK #IBXFO-00, SPEC. HPCO-21481, MFG. 1996, S/N 24-36137-02
HIGH VOLTAGE: 13800 DELTA BIL: 95 KV
LOW VOLTAGE: 480Y/277 BIL: 10 KV
TAPS: 14490-14145-13800-13455-13110
CORE & COILS: 9,000 LBS.
CORE & COILS: 80"H X 39"W X 89"L
