1200 Amp, GENERAL ELECTRIC, PVDB2 25.8-20-0, 28 KV, 125 VDC CLOSE & TRIP
SUBSTATION VACUUM BREAKER
Product Number:
039151
Full Product Description
CB-17679

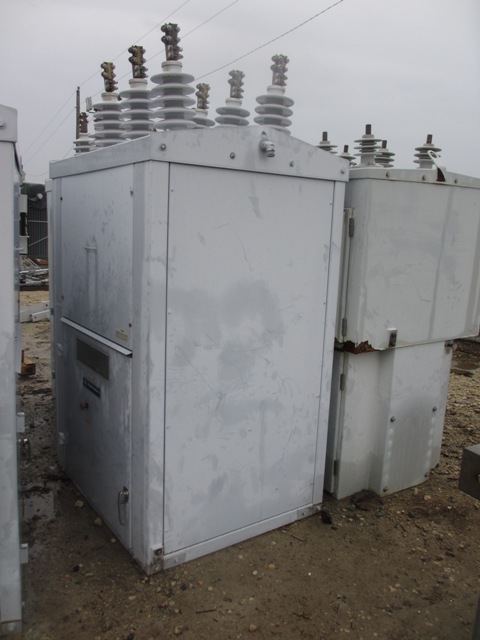

ONE (1) 1200 AMP GENERAL ELECTRIC OUTDOOR SUBSTATION VACUUM CIRCUIT BREAKER
TYPE PVDB2 25.8-20-0
28 KV MAX.
3 PHASE
60 HERTZ
20 KA SHORT CIRCUIT
1.0 VOLTAGE RANGE FACTOR
150 KV BIL
54 KA CLOSE & LATCH
125 VDC CLOSE & TRIP
120 VAC CHARGING MOTOR
31.5 LOCKED ROTOR AMPS
ML18H MECHANISM
VACUUM INTERRUPTER 81A
CONNECTION DIAGRAM #0242B8400P002
MFG. 06/2000
2200 LBS.
INST. MANUAL GEK-105495
S/N 0357A7290-001-02
