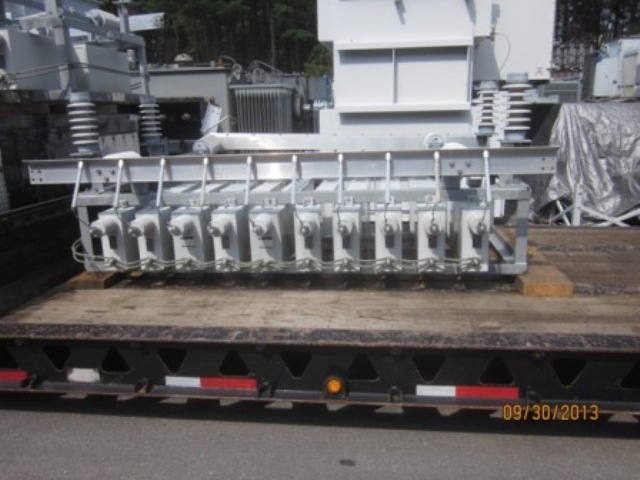

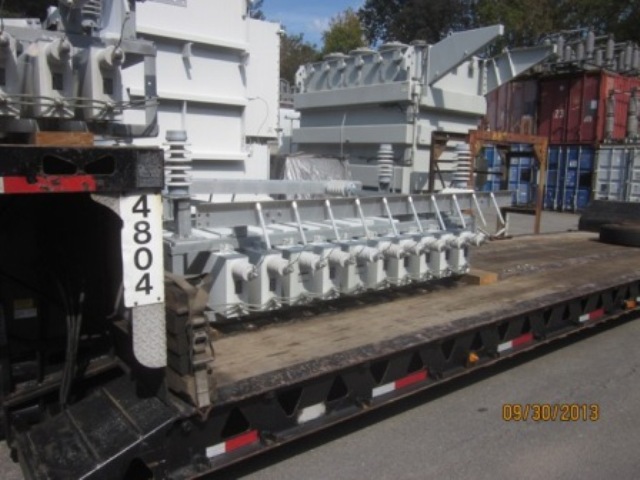

35000 KVAR, ABB, 3 PHASE, CAP BANK W/ 4 RACKS CONTAINING (20EA) 500KVAR CANS, 13280V

B-13496A-D

35,000 KVAR, 13280V ABB 3 PHASE CAPACITOR BANK COMPRISED OF:

CB-13496A - RACK 1:

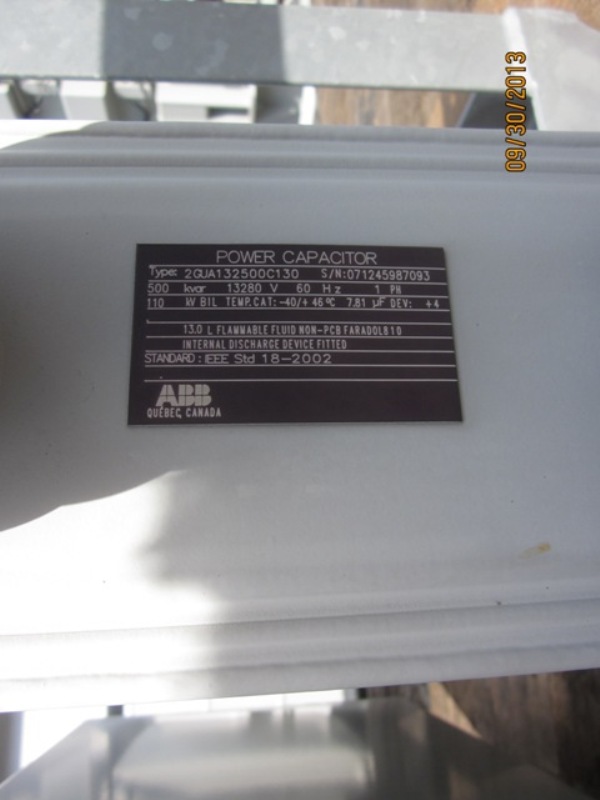

20 X 500 KVAR CANS, FUSED, 110 KV BIL, 13280 VOLT, TYPE
2GUA132500C130, NON-PCB, 13 LITERS OF FARADOL810 FLUID

CB-13496B - RACK 2:

20 X 500 KVAR CANS, FUSED, 110 KV BIL, 13280 VOLT, TYPE
2GUA132500C130, NON-PCB, 13 LITERS OF FARADOL810 FLUID


CB-13496C - RACK 3:

20 X 500 KVAR CANS, FUSED, 110 KV BIL, 13280 VOLT, TYPE
2GUA132500C130, NON-PCB, 13 LITERS OF FARADOL810 FLUID

CB-13496D - RACK 4:

10 X 500 KVAR CANS, FUSED, 110 KV BIL, 13280 VOLT, TYPE
2GUA132500C130, NON-PCB, 13 LITERS OF FARADOL810 FLUID

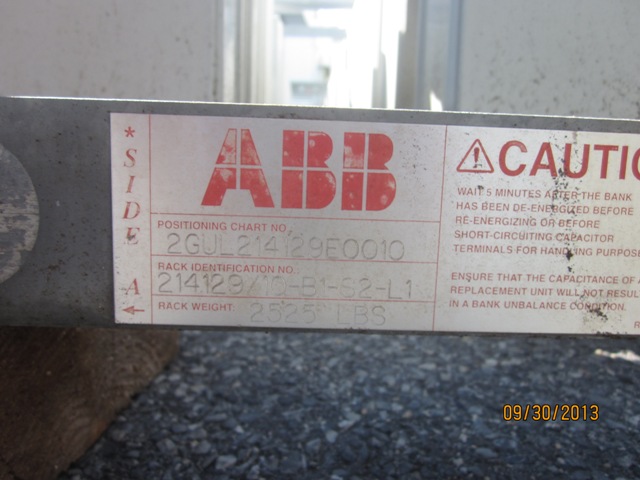

POSITIONING CHART # 2GUL214129E0010
RACK ID # 214129/10/B1/S2/L2
RACK WEIGHT 2,252 LBS.
