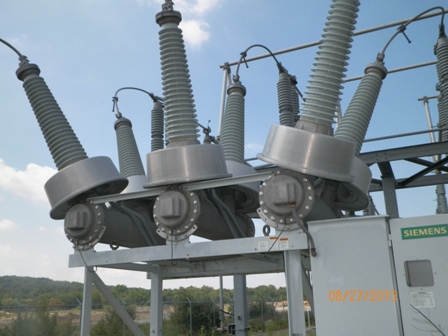

2000 Amp, SIEMENS, SPS-145-40-2000, 145 KV, 125 VDC CLOSE/TRIP/MOTOR

CB-17631:

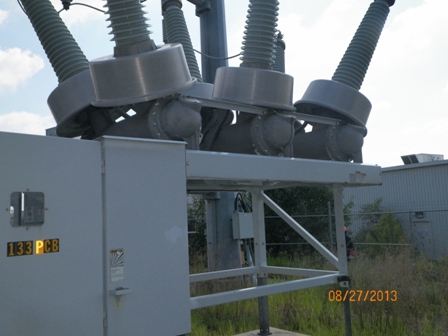

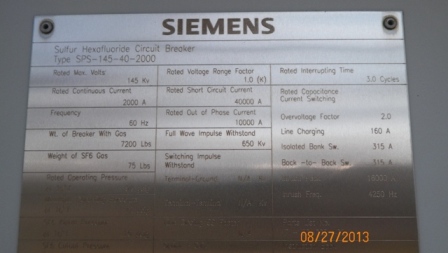

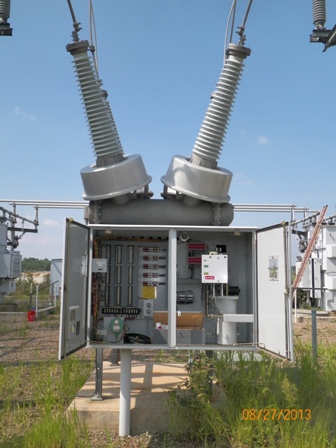

ONE (1) 2000 AMP SIEMENS SF6 CIRCUIT BREAKER
TYPE SPS-145-40-2000
145 KV
1.0 K VOLTAGE RANGE FACTOR
3.0 CYCLE INTERRUPT
40 KA SHORT CIRCUIT
60 HERTZ
10 KA OUT OF PHASE CURRENT
650 KV BIL
125 VDC CLOSE & TRIP
125 VDC MOTOR
6 X 2000:5 MRCT'S C-800 TYPE BCM

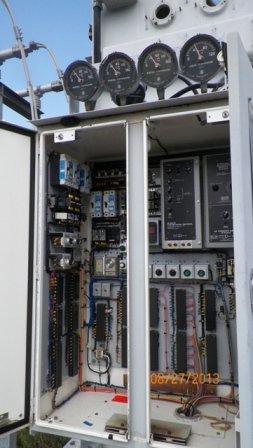

SPS-SE4 MECHANISM
7200 LBS. WITH GAS
75 LBS. OF GAS

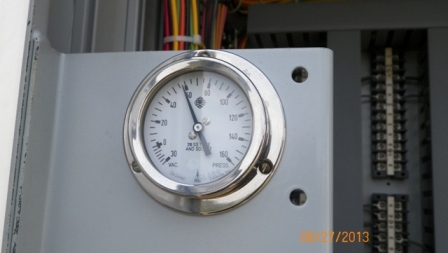

94 PSIG OPERATING PRESSURE
72 PSIG MINIMUM OPERATING PRESSURE
75 PSIG ALARM PRESSURE
72 PSIG CUTOUT PRESSURE
INST. BOOK PB-3508
CONTROL DIAGRAM 72-480-380-486S
120"H X 79"W X 140"D
