12000/22400 KVA, Pri 120000GRDY/69280, Sec 13800 D, 1989, ABB, GSU, COPPER:1

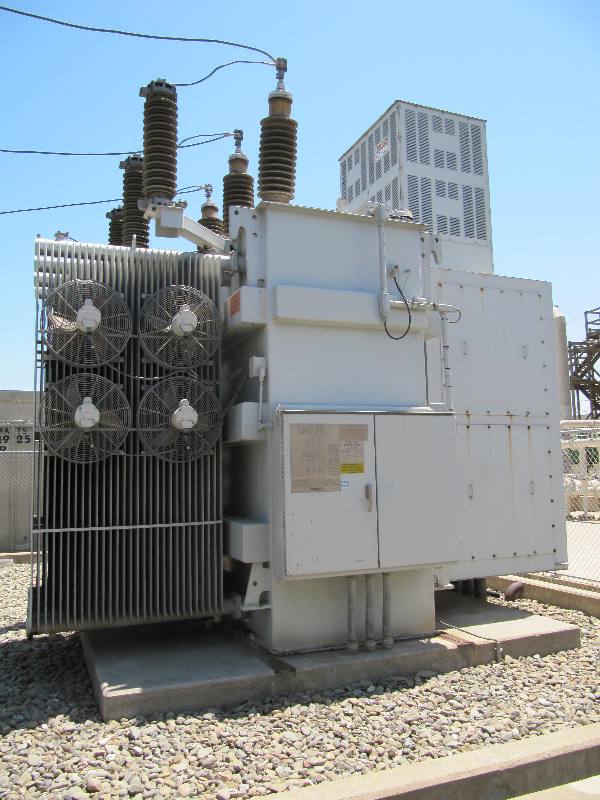

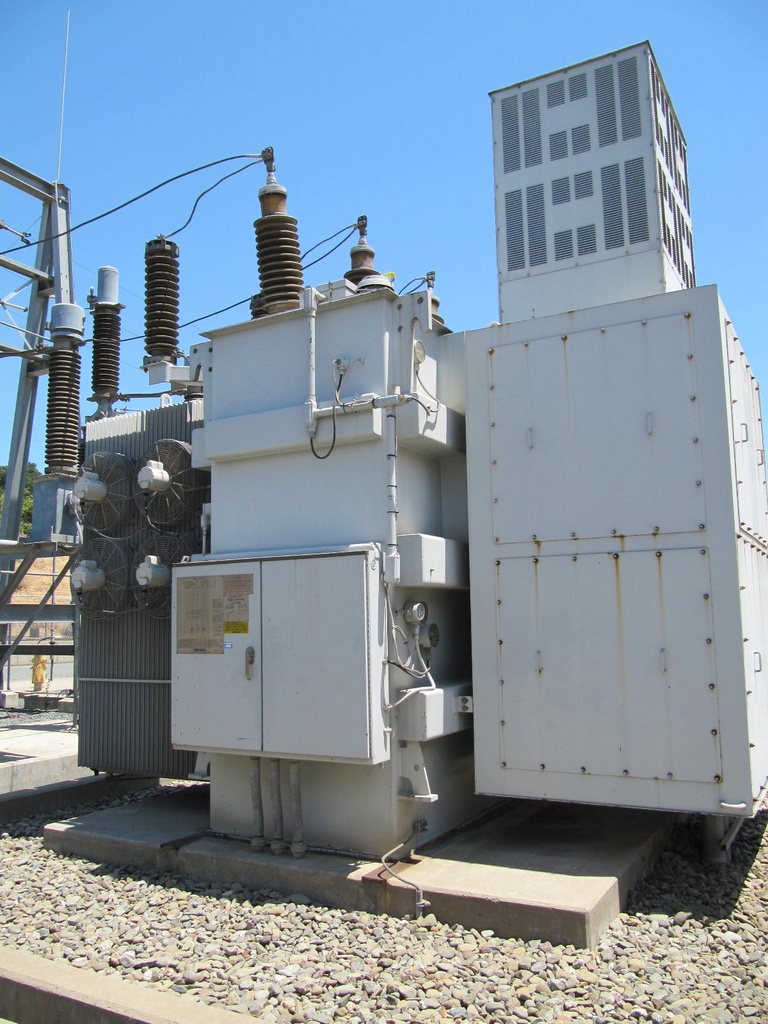

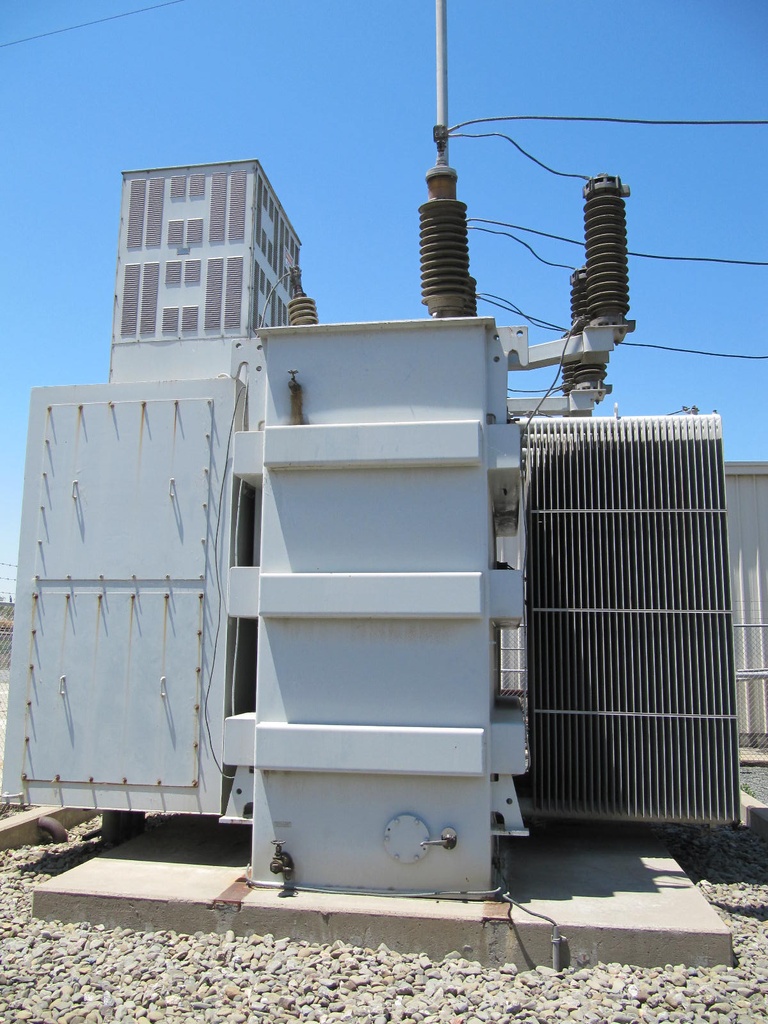

ONE (1) 12/13.4/16/17.9/20/22.4 MVA ABB GENERATOR STEP-UP TRANSFORMER,
3 PHASE, 60 HERTZ, CLASS OA/FA/FA, 55/65 DEG. C RISE, 8.26%
IMPEDANCE, COPPER WINDINGS, 3 X LV 1200:5 MRCT'S, MFG. 1989

HIGH VOLTAGE: 120000 GRDY/69280 BIL: 450
LOW VOLTAGE: 13800 DELTA BIL: 110
TAPS: 126000-123000-120000-117000-114000

TOTAL WEIGHT: 99,300 LBS.
CORE & COILS: 44,100 LBS.
TANK & FIT.: 30,600 LBS.
RADIATOR: 6,500 LBS. (BOLT-ON)
OIL: 24,600 LBS. (3,280 GALS.)
MAIN TANK OIL: 3,010 GALS.
RADIATOR OIL: 270 GALS.
