5200 HP, 700 AMP, GE, 4160 V, INDOOR, FULL VOLTAGE, VACUUM, FUSED, CR7160A108J

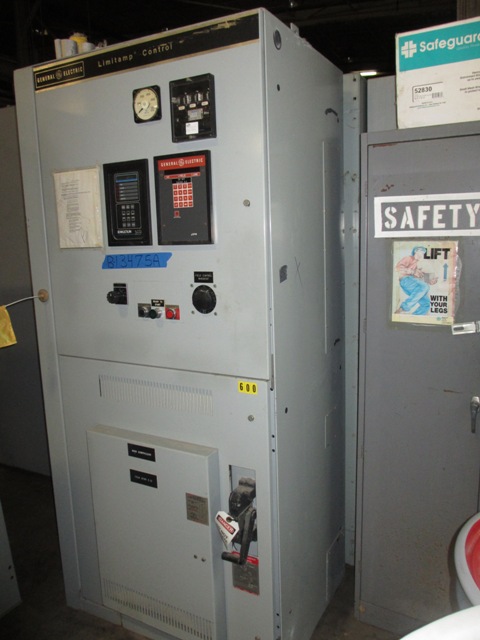

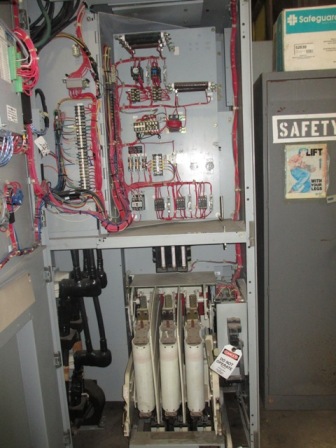

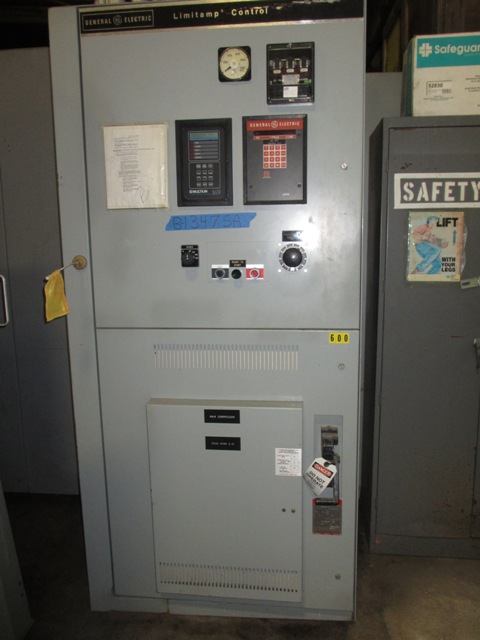

ONE (1) SINGLE HIGH COLUMN OF INDOOR FUSED GE LIMITAMP SWITCHGEAR CONTAINING 1
X FULL VOLTAGE SYNCHRONOUS MOTOR STARTER WITH FIELD CONTROLLER

B-13475A:

1 X SINGLE HIGH GE LIMITAMP FULL VOLTAGE SYNCHRONOUS MOTOR STARTER
- 5200 HP
- 4160 VOLT
- 575 AMP
- 630 AMP MAX.
- 350 MVA
- 3 PHASE
- 60 HERTZ
- 115 VAC CONTROLS
- TYPE CR7160A108J

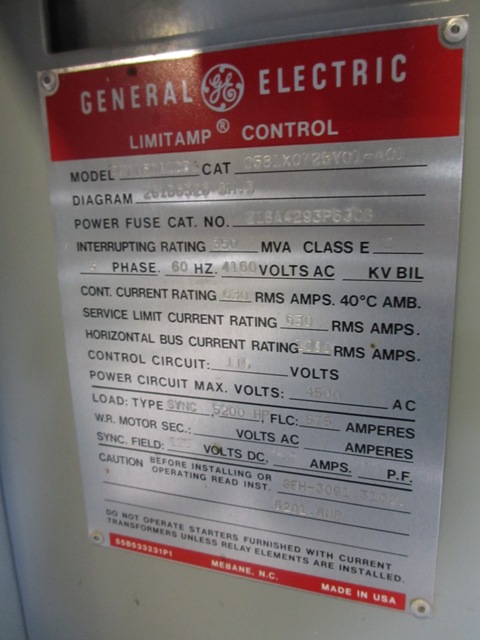

- CAT. #581X0725V01-A01
- DIAGRAM #261B6326
- INSTR. BOOK GEH-3091, GEH-3102, GEH-5201SUP
- 90"H X 42"W X 30"D
- 1 X GREEN READY TO RUN LIGHT, 1 X EMERGENCY STOP BUTTON, 1 RESET BUTTON
- 1 X VOLTMETER & SELECTOR SWITCH
- 1 X CONTROL POWER TRANSFORMER RATED 3 KVA, 4160V-115V WITH 3E FUSES
- 1 X FIELD RHEOSTAT CONTROLLER KNOW

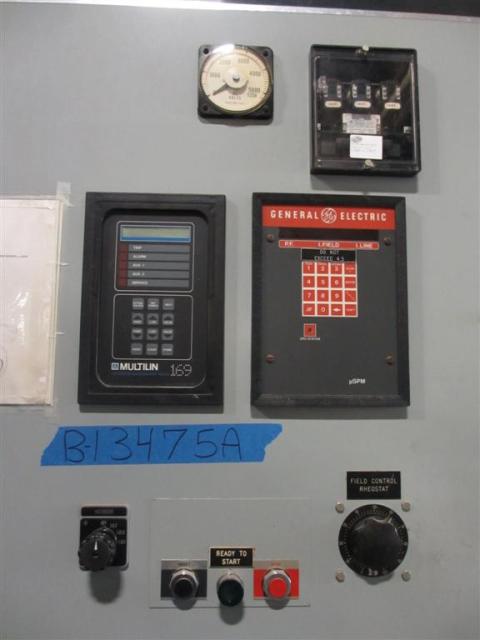

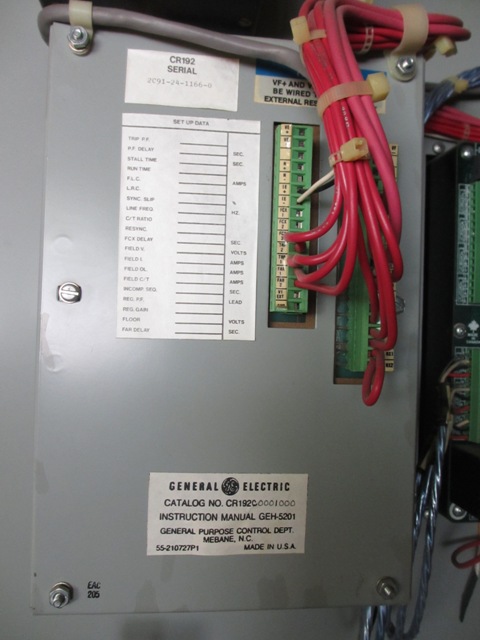

- 1 X GE TYPE SPM MODEL CR192 MICROPROCESSOR-BASED STARTING & PROTECTION
MODEL
- 1 X GE MULTILIN 169 MOTOR MANAGEMENT RELAY
- 1 X GE AUXILIARY RELAY TYPE HFC

B-13475 CONTACTOR:

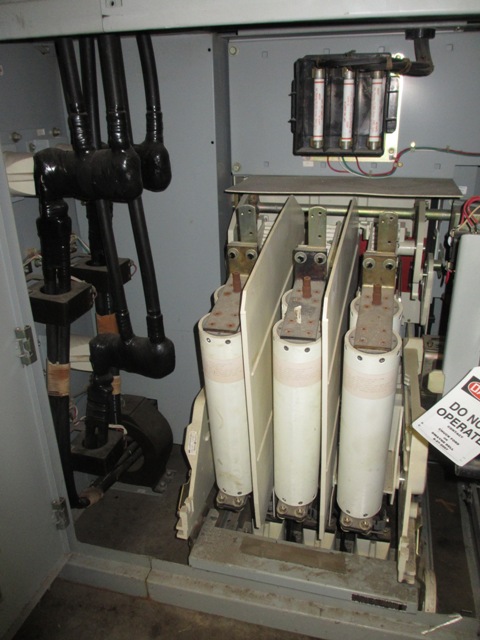

ONE (1) 630 AMP GENERAL ELECTRIC FUSED VACUUM CONTACTOR
700 AMP MAX.
4800 VOLT

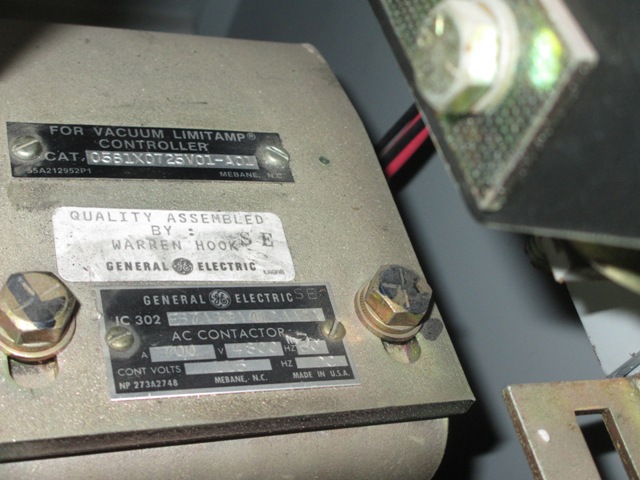

TYPE CR302EB7AB2A412AA2A
60 HERTZ
115 VDC CONTROLS
3 X BOLT-IN DOUBLE BARREL FUSES RATED AT 630 AMPS, 5.5 KV
