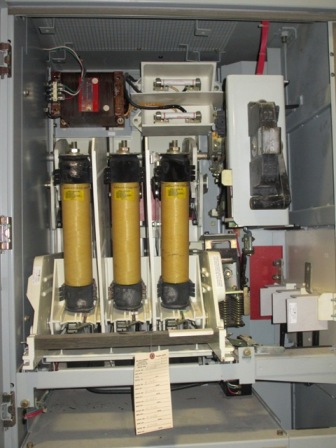

750 HP, 400 AMP, GE, 4800 V, INDOOR, FULL VOLTAGE, VACUUM, FUSED, CR7160A118KM

PART OF A LINE-UP OF INDOOR HOUSED GENERAL ELECTRIC STARTERS, CONSISTING OF 1
X INCOMING SECTION & 5 X 2 HIGH COLUMNS CONTAINING 8 X NON-LATCHING TYPE AND 2
X LATCHING TYPE CONTACTORS

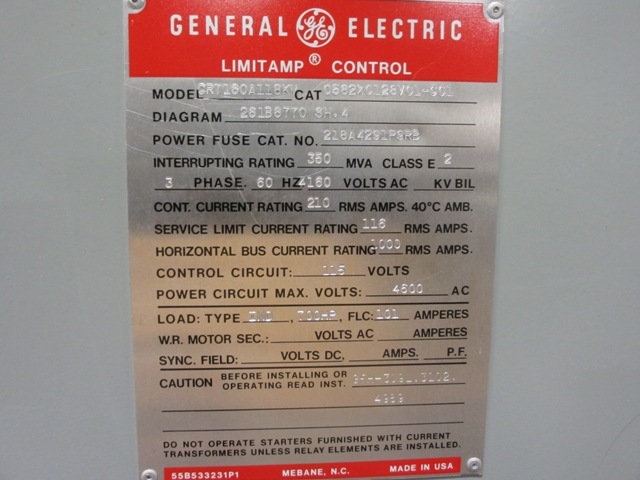

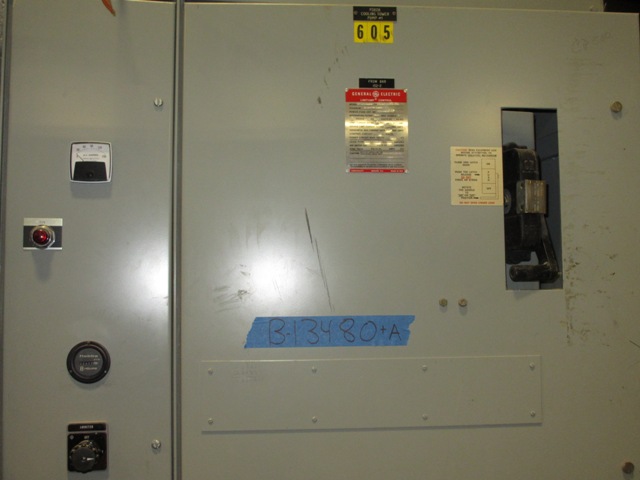

B-13480A:
- FULL VOLTAGE, NON-REVERSING TYPE
- 750 HP
- MODEL CR7160A118KM
- CAT #0582X0128V01-A02
- DIAGRAM 261B6770 SH.5
- INST. BOOK GEH-3091, 3102, 4989
- 350 MVA INTERRUPTING RATING
- 3 PHASE/60 HERTZ
- 4160 VOLT (4600 VOLT MAX.)
- 210 AMP CONTINUOUS, CLASS E2
- 1000 RMS AMPS HORIZONTAL BUS RATING
- 115 VOLT CONTROL CIRCUIT
- 1 X OPEN & 1 X CLOSE INDICATING LIGHTS
- 1 X RED RUN LIGHT & 1 X EMERGENCY STOP/RESET BUTTON
- 1 X AMMETER & SELECTOR SWITCH
- 1 X CPT RATED 3 KVA, 4160V - 115V (WITH 3E FUSES)

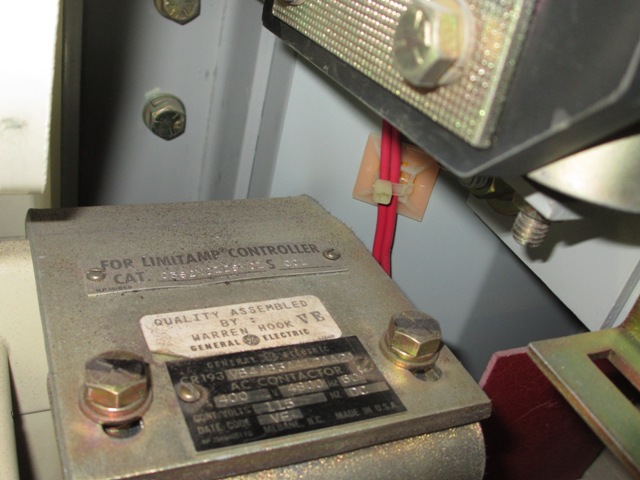

B-13480 CONTACTOR:
- 400 AMP GE FUSED AC VACUUM CONTACTOR
- 4800 VOLT
- 750 KVA LOAD
- CAT #CR193VB4AB3A412AA2A
- 60 HERTZ
- 115 VDC CONTROL
