135000/225000 KVA, Pri 165000 Y, Sec 34500 Y, HICO, STEP-UP
STEP-UP TRANSFORMER
Product Number:
037901
Full Product Description

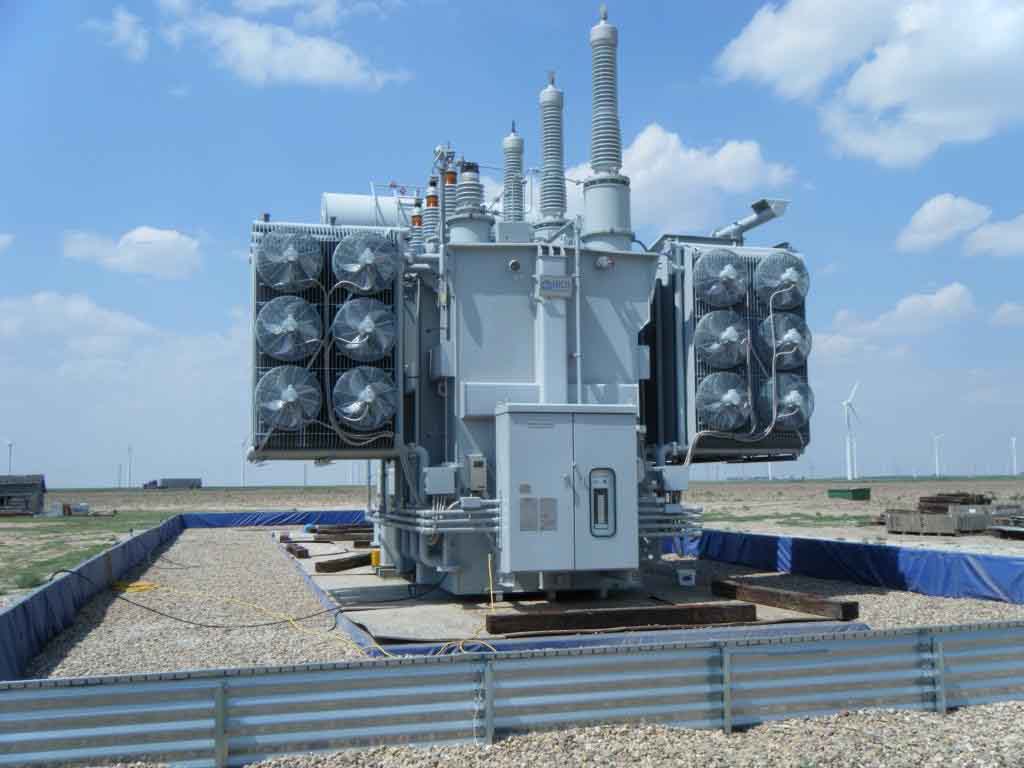

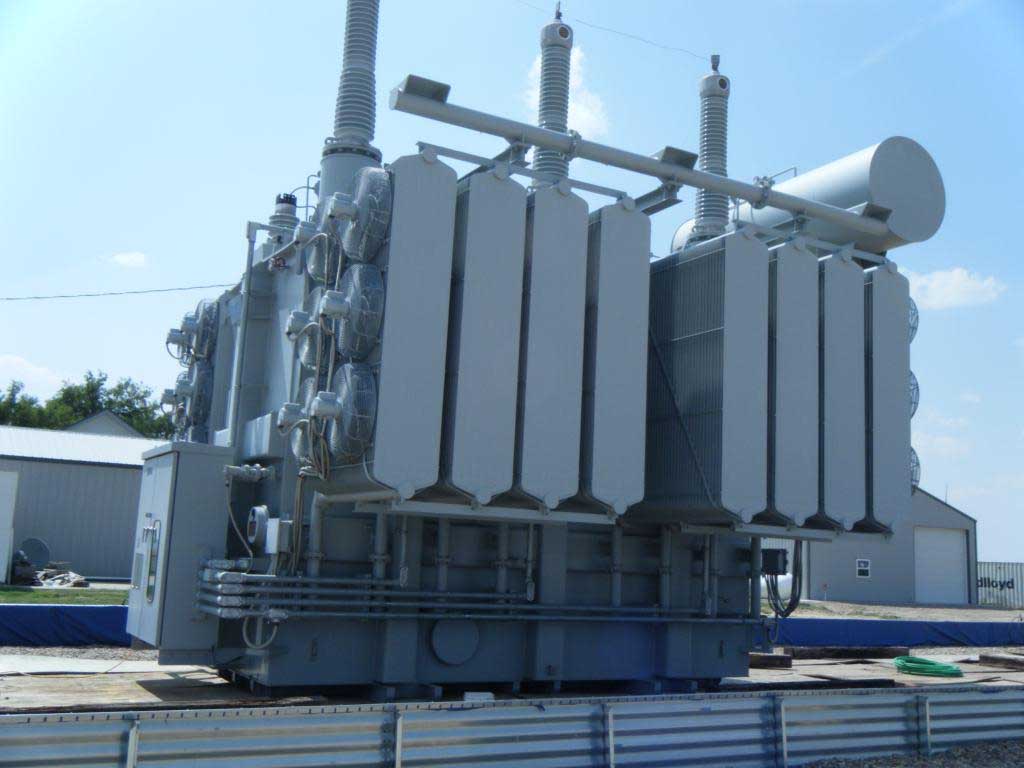

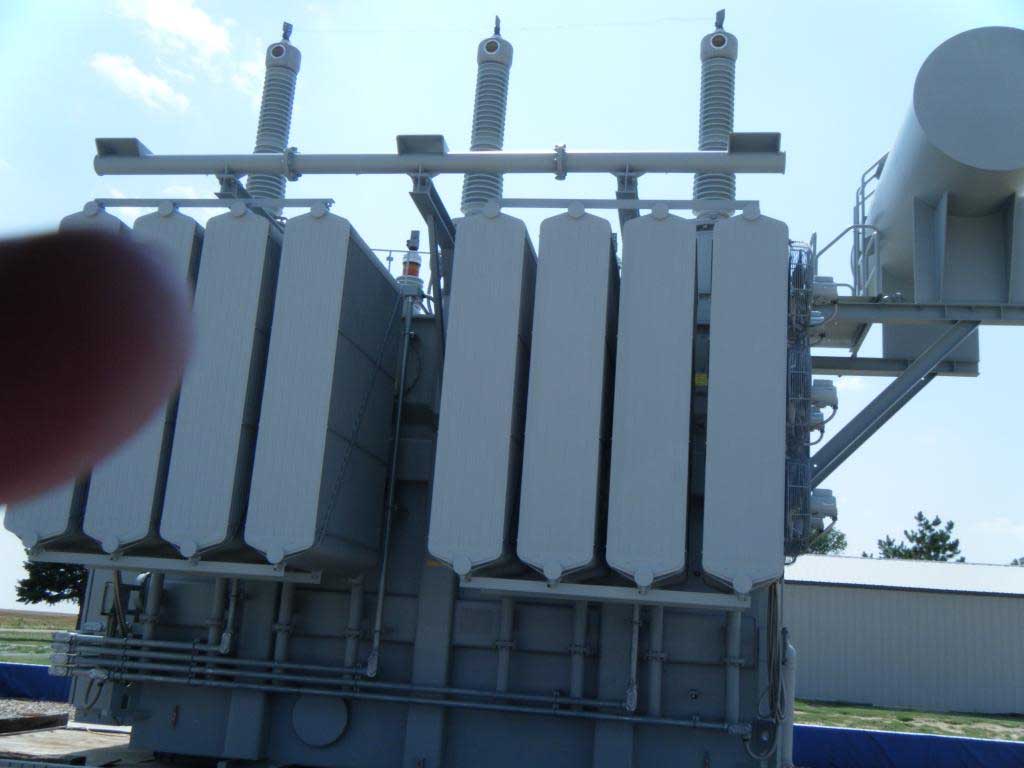

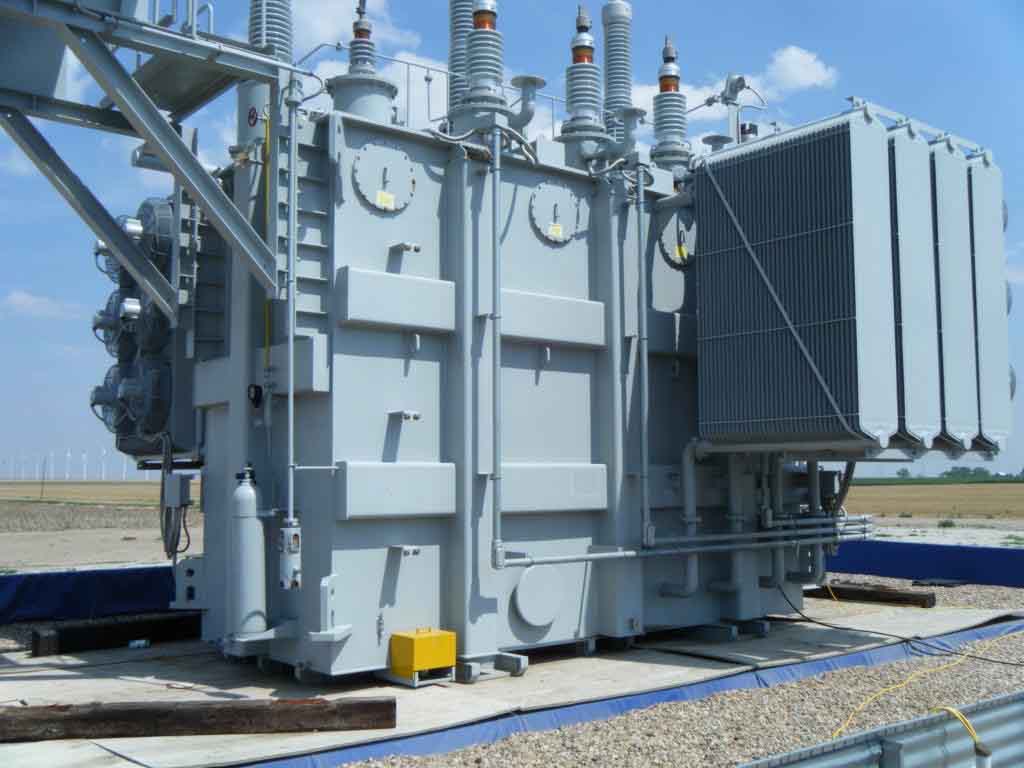

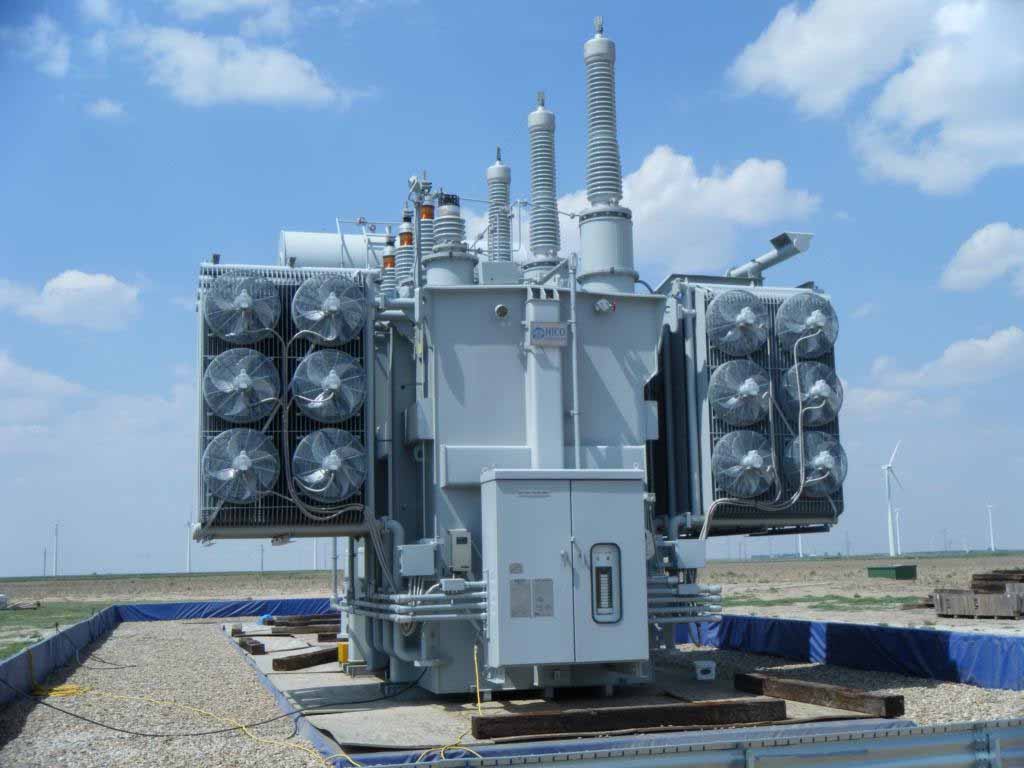

ONE (1) UNUSED 135/180/225 MVA HICO STEP-UP TRANSFORMER, 3 PHASE, 60 HZ,
CLASS ONAN/ONAF/ONAF, 65 DEGREE C RISE, 7.89% IMPEDANCE, COPPER
WINDINGS, CONSERVATOR, MFG. 2009

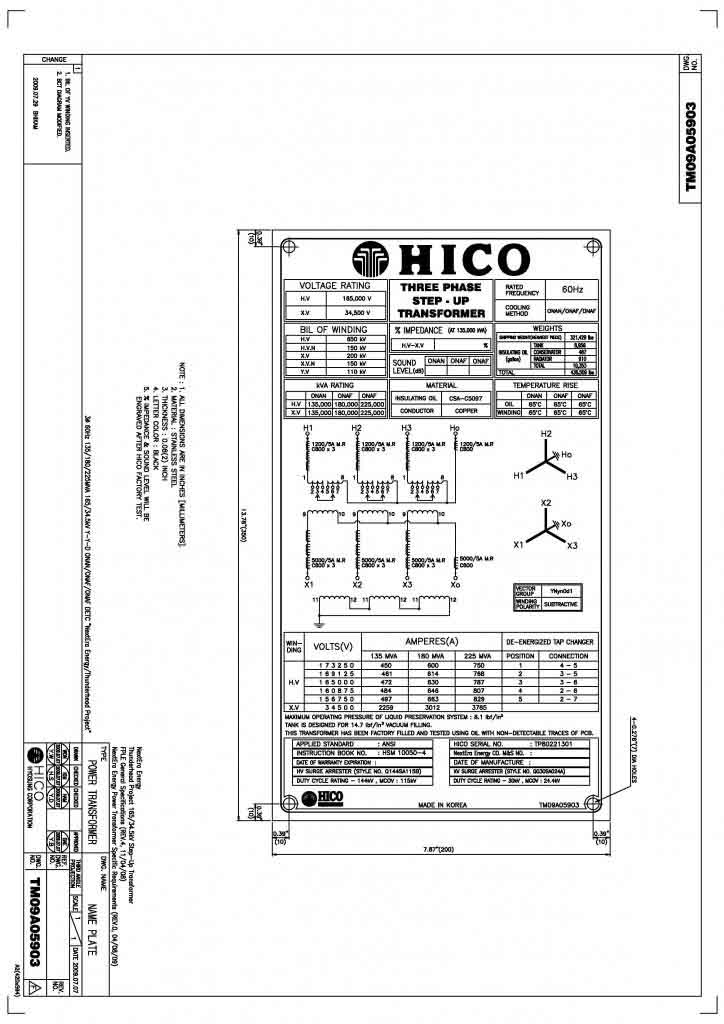

HIGH VOLTAGE: 165000 WYE BIL: 650 KV
LOW VOLTAGE: 34500 WYE BIL: 110 KV
TAPS: 173250-169125-165000-160875-156750
TOTAL WEIGHT: 436,509 LBS.
SHIPPING: 321,429 LBS.
OIL: 10,353 GALS.
