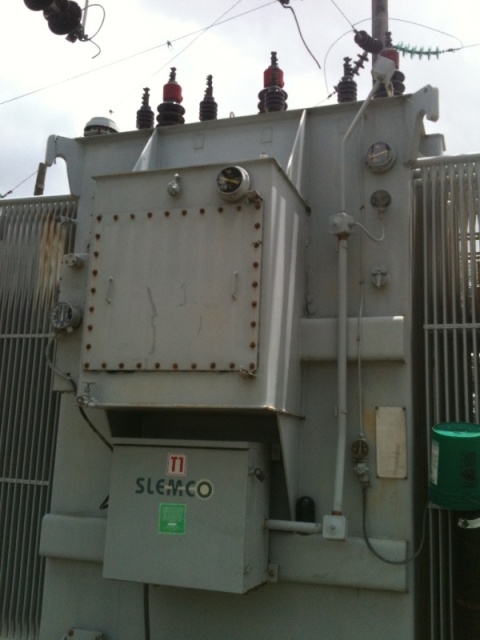

5000/5600 KVA, Pri 67000 D, Sec 13200Y/7620, WESTINGHOUSE, LTC
LOAD TAP CHANGING TRANSFORMER
Product Number:
037898
Full Product Description
ONE (1) 5000/5600 KVA WESTINGHOUSE LOAD TAP CHANGING TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS OA/FFA, 55/65 DEG. C RISE, 7.5% IMPEDANCE, WILL DO 7
MVA WITH PROPER COOLING
HIGH VOLTAGE: 67000 DELTA BIL: 350 KV
LOW VOLTAGE: 13200Y/7620 BIL: 110 KV
TAPS: 70600-68800-67000-65200-63400
LV TAPS: 11880 TO 14520 IN 16 STEPS
TOTAL WEIGHT: 44,650 LBS.
CORE & COILS: 14,530 LBS.
TANK & FIT.: 11,600 LBS.
OIL: 18,520 LBS. (2,255 IN MAIN TANK)
(214 IN LTC)
