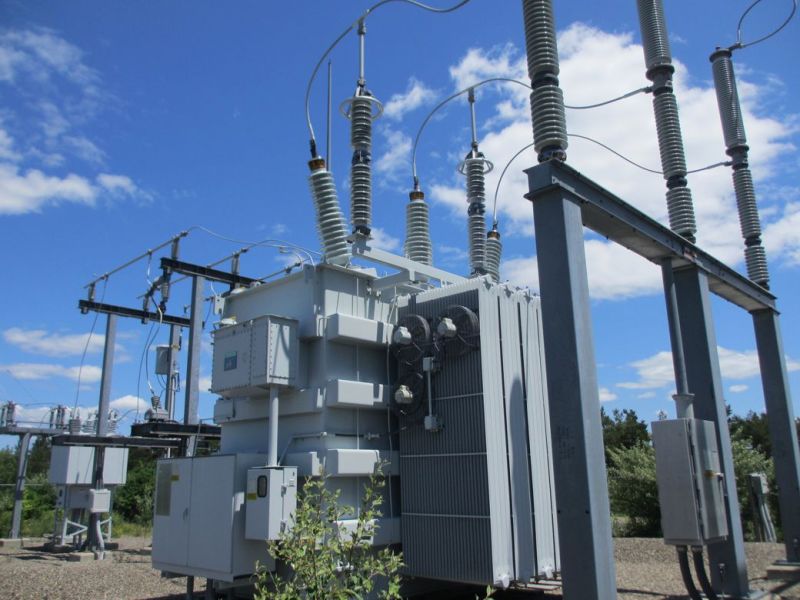

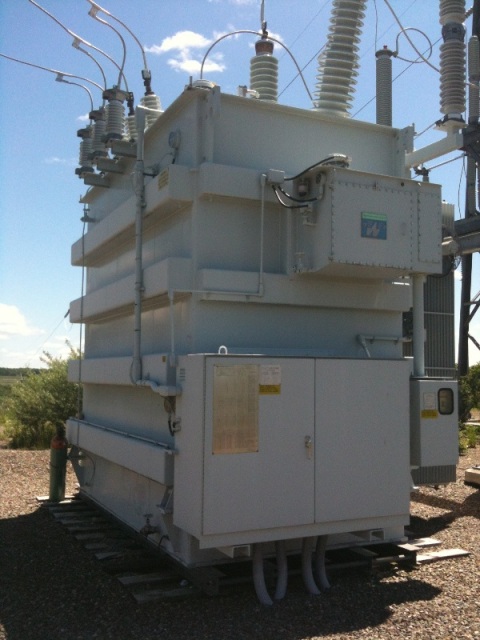

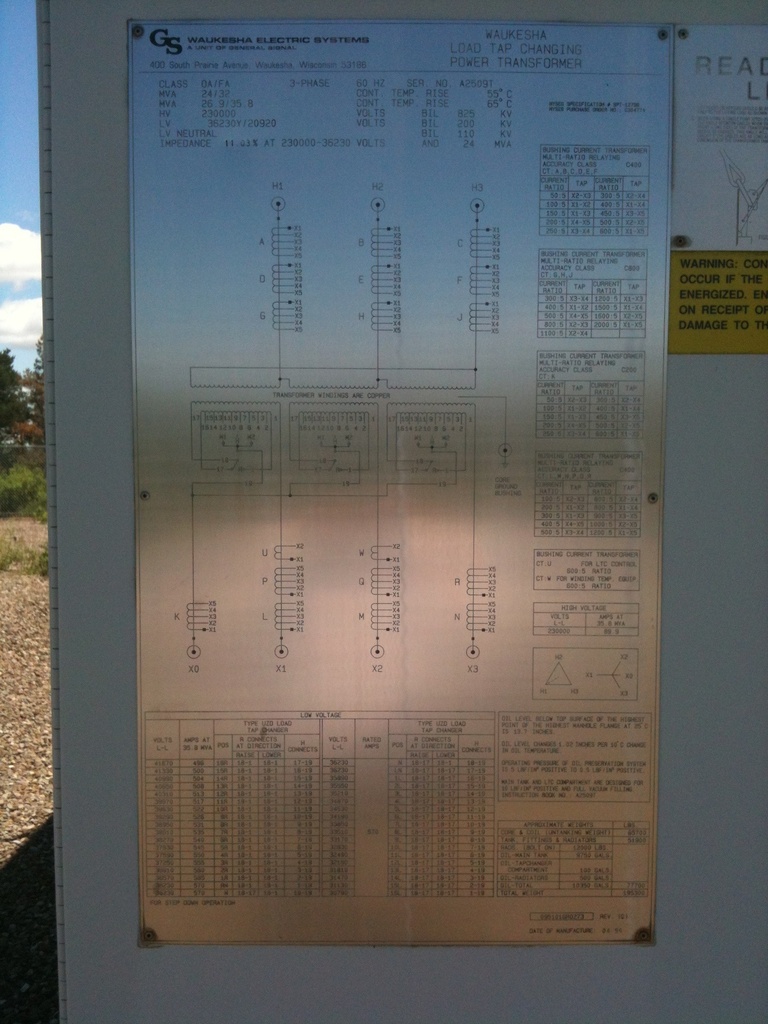

24000/35800 KVA, Pri 230000 D, Sec 36230Y/20920, 1996, WAUKESHA, LTC:1
LOAD TAP CHANGING TRANSFORMER
Product Number:
037896
Full Product Description
ONE (1) 24/26.9/32/35.8 MVA WAUKESHA LOAD TAP CHANGING TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS OA/FA, 55/65 DEG. C RISE, 11.03% IMPEDANCE, COPPER
WINDINGS, 6 X 600:5 HV MRCT'S, 3 X 2000:5 HV MRCT'S, 6 X 1200:5 LV
MRCT'S, 1 X 600:5 NEUTRAL MRCT, 1 X 600:5 CT FOR LTC CONTROL, 1 X
600:5 CT FOR WINDING TEMPERATURE EQUIPMENT, MFG. 1996
HIGH VOLTAGE: 230000 DELTA BIL: 825 KV
LOW VOLTAGE: 36230Y/20920 BIL: 200 KV
LV NEUTRAL: BIL: 110 KV
LV TAPS: 30790 TO 41670 IN 32 STEPS
TOTAL WEIGHT: 195,300 LBS.
CORE & COILS: 65,700 LBS.
TANK & FIT.: 51,900 LBS.
OIL: 77,700 LBS. (10,350 GALS.)
RADIATORS: 12,000 LBS.
MAIN TANK OIL: 9,750 GALS.
TAP CHANGER OIL: 100 GALS.
RADIATOR OIL: 500 GALS.
DIMENSIONS: 255"H X 234"W X 179"D
SHIPPING: 184"H X 232"W X 120"D
