4000 Amp, SQUARE D POWERZONE III, 480 V., 2000, INDOOR LINE-UP, MAIN-TIE-MAIN

CB-17516 THRU CB-17536:

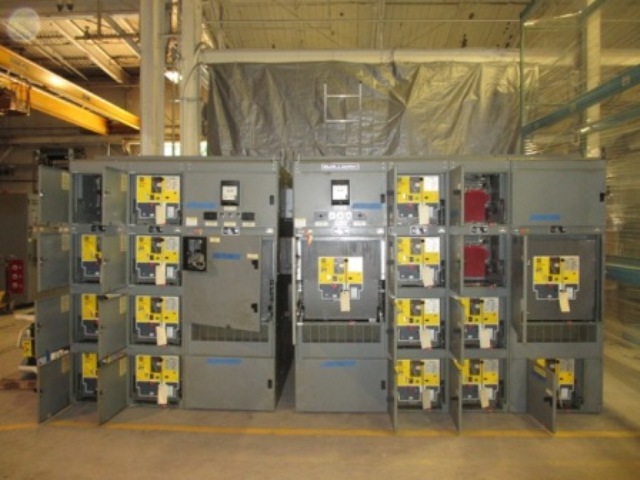

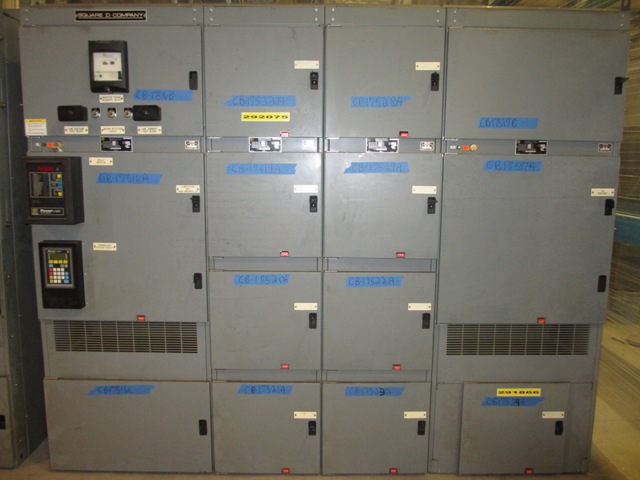

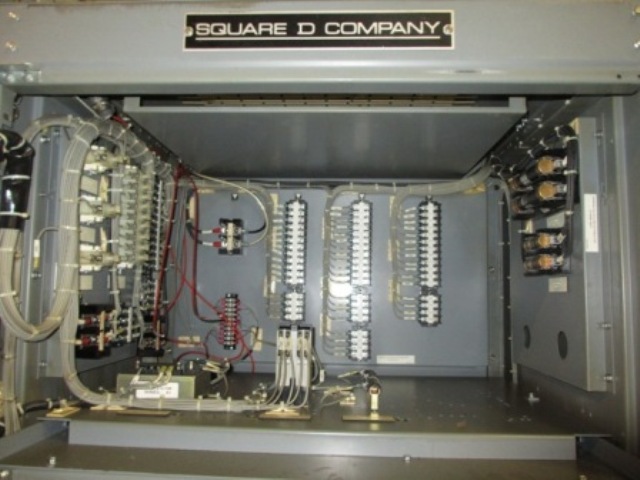

INDOOR HOUSED LINE-UP OF SQUARE D POWERZONE III SWITCHGEAR IN A MAIN-TIE-MAIN
CONFIGURATION CONSISTING OF 7 COLUMNS WITH 3 X 4000 AMP MAINS, 9 X 1600 AMP
FEEDERS, 5 X 800 AMP FEEDERS, 3 X FUTURES AND 5 X METERING SECTIONS SPLIT
BETWEEN COLUMNS 5 AND 6

CB-17516 THRU CB-17518:

4000 AMP SQUARE D AIR CIRCUIT BREAKERS
TYPE DSII-840
480 VOLT
635 VOLT MAX.
60 HERTZ
MANUALLY OPERATED
DRAW-OUT
4000 AMP RATING PLUG & SENSOR
85 KA @ 635 VOLT
85 KA @ 508 VOLT
130 KA @ 254 VOLT
CONNECTION DIAGRAM 44023-850
DIGITRIP RMS 810D WITH LSI FUNCTIONS
MFG. 05/2000

CB-17519 THRU CB-17527:

1600 AMP SQUARE D AIR CIRCUIT BREAKERS
TYPE DSII-616
480 VOLT
635 VOLT MAX.
60 HERTZ
MANUALLY OPERATED
DRAW-OUT
1600 AMP RATING PLUG & SENSOR
50 KA @ 635 VOLT
65 KA @ 508 VOLT
65 KA @ 254 VOLT
CONNECTION DIAGRAM 44021-850
DIGITRIP RMS 810D WITH LSI FUNCTIONS
MFG. 05/2000

CB-17532 THRU CB-17536:

800 AMP SQUARE D AIR CIRCUIT BREAKERS
TYPE DSII-608
480 VOLT
635 VOLT MAX.
60 HERTZ
MANUALLY OPERATED
DRAW-OUT
800 AMP RATING PLUG & SENSOR
50 KA @ 635 VOLT
65 KA @ 508 VOLT
65 KA @ 254 VOLT
CONNECTION DIAGRAM 44023-500
DIGITRIP RMS 810D WITH LSI FUNCTIONS
MFG. 05/2000

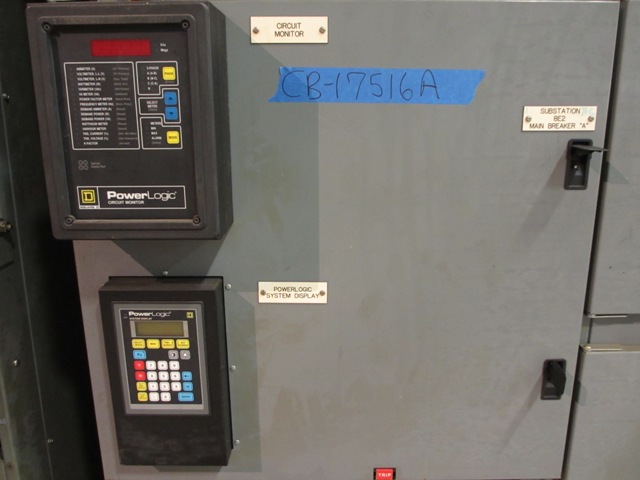

CB-17516A:

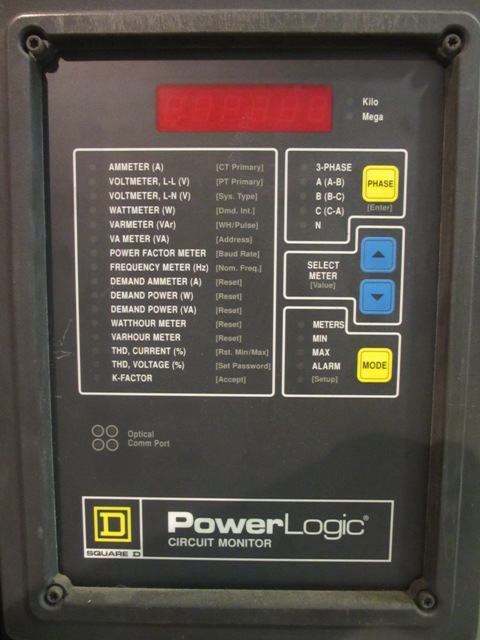

1 X SQUARE D POWERLOGIC CIRCUIT MONITOR RELAY

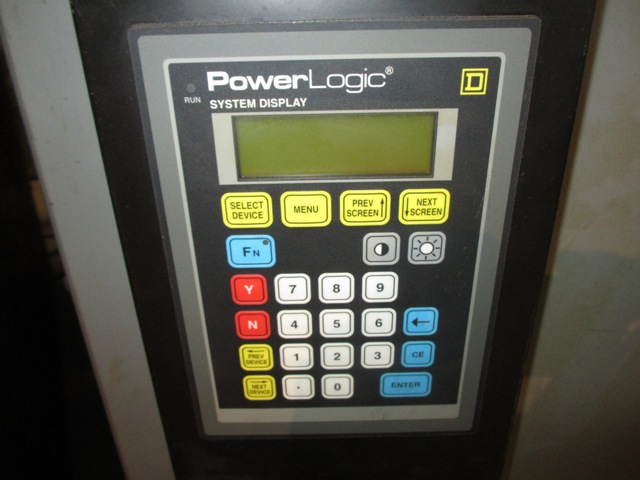

1 X SQUARE D POWERLOGIC SYSTEM DISPLAY RELAY

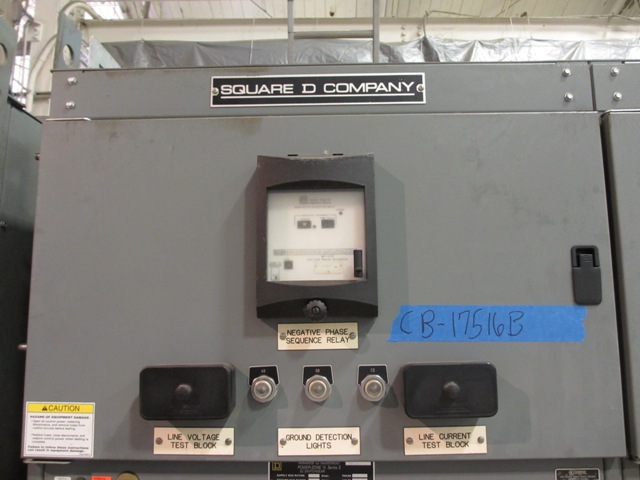

CB-17516B & CB-17518B:

1 X BASLER SOLID STATE PROTECTIVE RELAY TYPE BE1-47N
1 X LINE VOLTAGE TEST BLOCK & 1 X LINE CURRENT TEST BLOCK
3 X INDICATING LIGHTS FOR GROUND DETECTION ON EACH PHASE

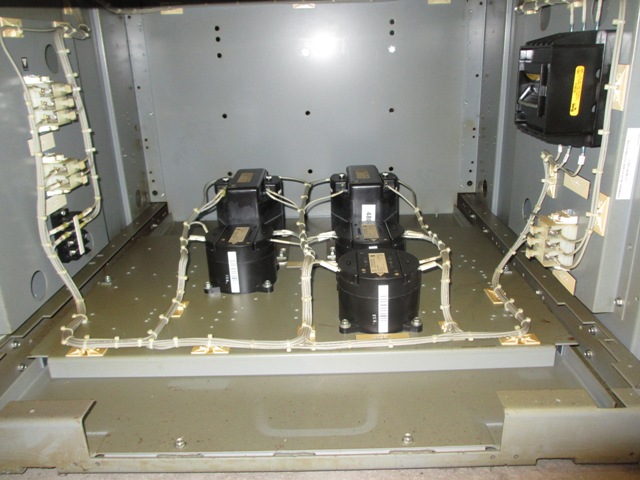

CB-17516C & CB-17518C:

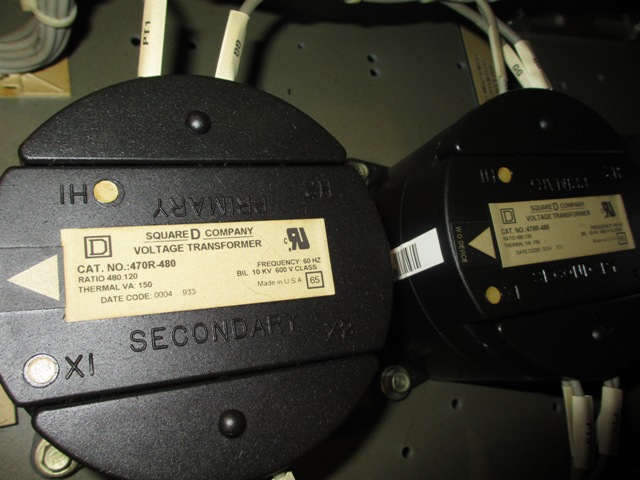

3 X SQUARE D 600 VOLT CLASS VOLTAGE TRANSFORMERS RATED 480-120,
10 KV BIL, 60 HERTZ, 150 THERMAL VA, CAT #470-480R
3 X SQUARE D 600 VOLT CLASS VOLTAGE TRANSFORMERS RATED 480-120,
10 KV BIL, 60 HERTZ, 500 THERMAL VA, CAT #450-480R

CB-17517B:

1 X SQUARE D SIZE 3, 600 VOLT, REVERSING CONTACTOR RATED 25 HP AT
200 VOLT, 30 HP AT 230 VOLT AND 50 HP AT 460/575 VOLT, 50/60
HERTZ, CAT. #8702SE02
1 X UNDER VOLTAGE RELAY RATED 240 VOLT, WITH 5 AMP CONTACTS @ 240
VAC, 211 VA RESISTANCE
