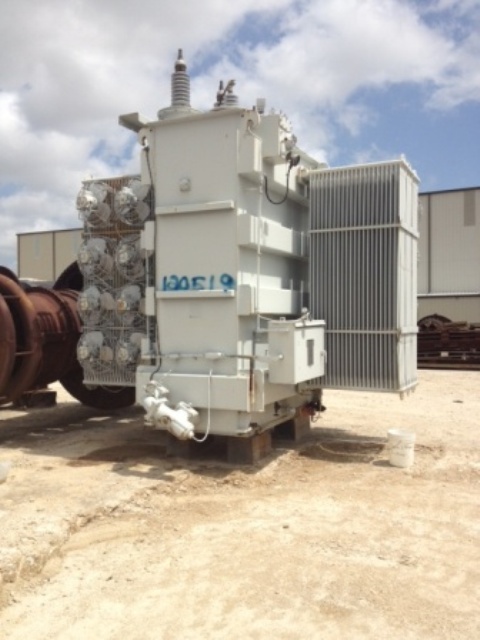

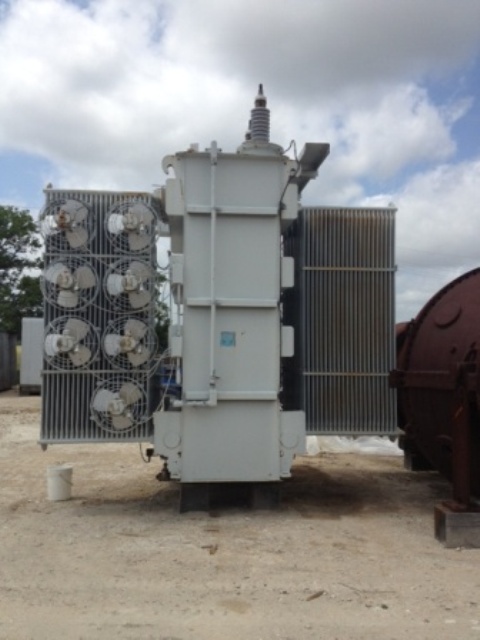

12000/22400 KVA, Pri 46000GRY/26560, Sec 13200 D, GENERAL ELECTRIC, GSU:1

ONE (1) 12/16/20/22.4 MVA GENERAL ELECTRIC GENERATOR STEP-UP TRANSFORMER,
3 PHASE, 60 HERTZ, CLASS OA/FA/FOA, 55/65 DEG. C RISE, 6.63%
IMPEDANCE, DRAIN & SAMPLE VALVE, DIAL TYPE THERMOMETER, LIQUID LEVEL
GAUGE, PRESSURE VACUUM GAUGE, PRESSURE RELIEF VALVE, HV ALUMINUM,
LV COPPER, TOP X TOP MOUNTED BUSHINGS, S/N G-851355

HIGH VOLTAGE: 46000GRY/26560 BIL: 250 KV
LOW VOLTAGE: 13200 DELTA BIL: 110 KV
TAPS: 48300-47150-46000-44850-43700

TOTAL WEIGHT: 58,000 LBS
CORE & COILS: 25,900 LBS
TANK & FIT.: 16,600 LBS
OIL: 2,030 GALS. 15,500 LBS
