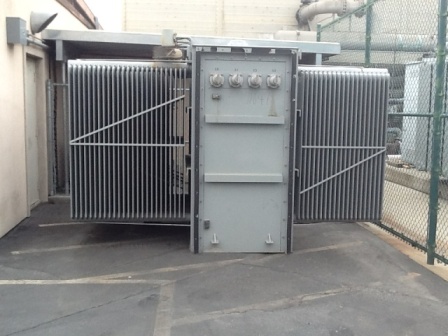

5000/7000 KVA, Pri 12000 D, Sec 4160Y/2400, 1995, SQUARE D, COPPER:1

ONE (1) 5000/7000 KVA SQUARE D SUBSTATION TRANSFORMER, 3 PHASE, 60 HERTZ,
CLASS OA/FA, 65 DEG. C RISE, 6.02% IMPEDANCE, COPPER WINDINGS,
SIDE X SIDE BUSHINGS, MFG. 1995

HIGH VOLTAGE: 12000 DELTA BIL: 95 KV
LOW VOLTAGE: 4160Y/2400 BIL: 30 KV
TAPS: 12600-12300-12000-11700-11400

TOTAL WEIGHT: 25,200 LBS.
COOLANT: 6,113 LBS. (315 GALS.)
DIMENSIONS: 98"H X 90"W X 140"D
FOOTPRINT: 69"W C 45"D
