1200 Amp, GENERAL ELECTRIC, VB1-4.16-250-1, INDOOR SWITCHGEAR LINE-UP

ONE (1) INDOOR LINE-UP OF 5 KV, 1200 AMP GENERAL ELECTRIC POWERVAC SWITCHGEAR
IN A MAIN-TIE-MAIN CONFIGURATION WITH 2 FEEDERS

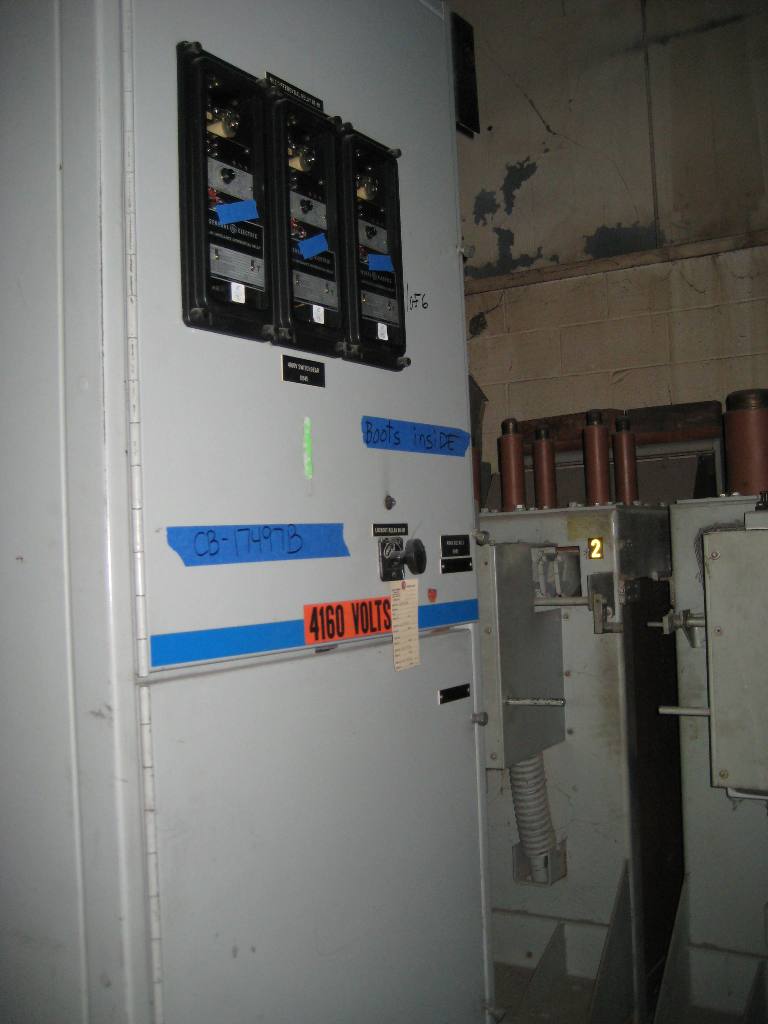

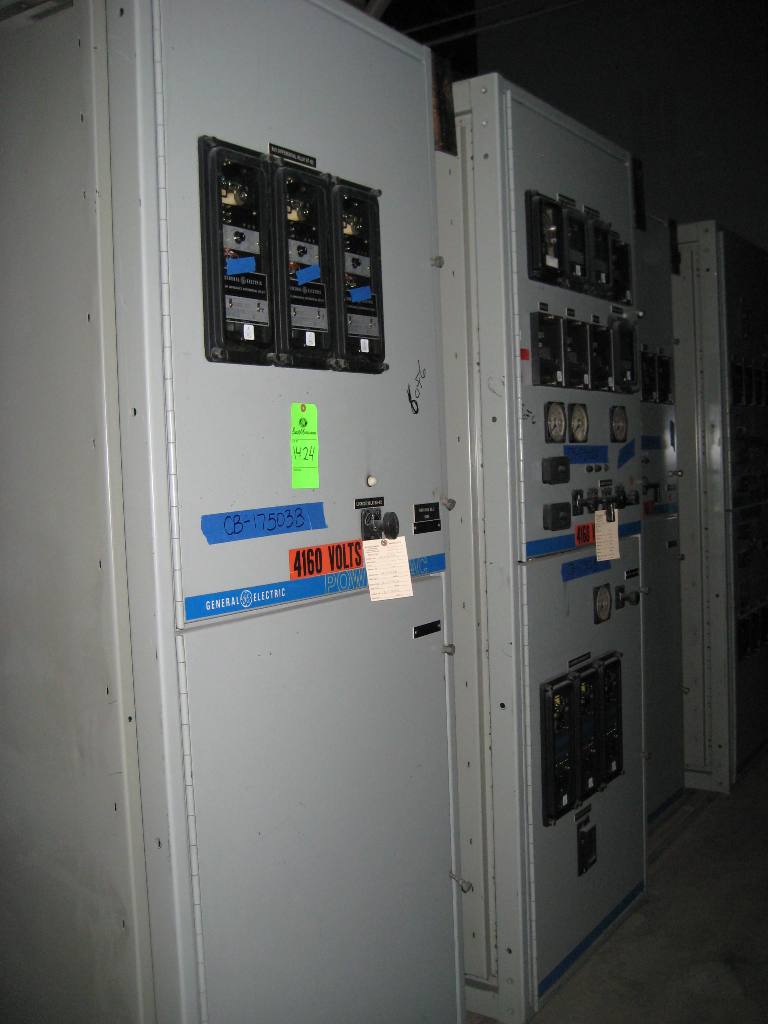

CB-17497B:

INCOMING SECTION

CB-17498 THRU CB-17502:

ONE (1) 1200 AMP GENERAL ELECTRIC VACUUM BREAKER
TYPE VB1-4.16-250-1
5 KV MAX.
29 KA SHORT CIRCUIT
58 KA CLOSE & LATCH
5 CYCLE INTERRUPT
125 VDC CLOSE & TRIP
ML-18 OPERATING MECHANISM
VACUUM INTERRUPTER TYPE 42B1
470 LBS.
MFG. 1985

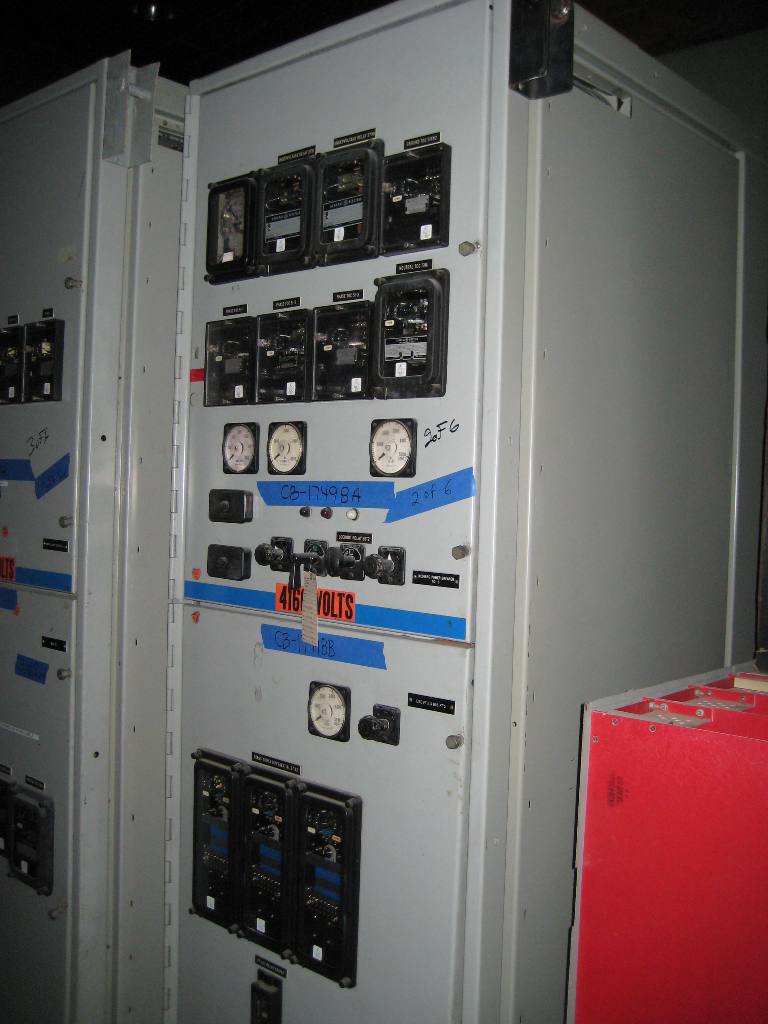

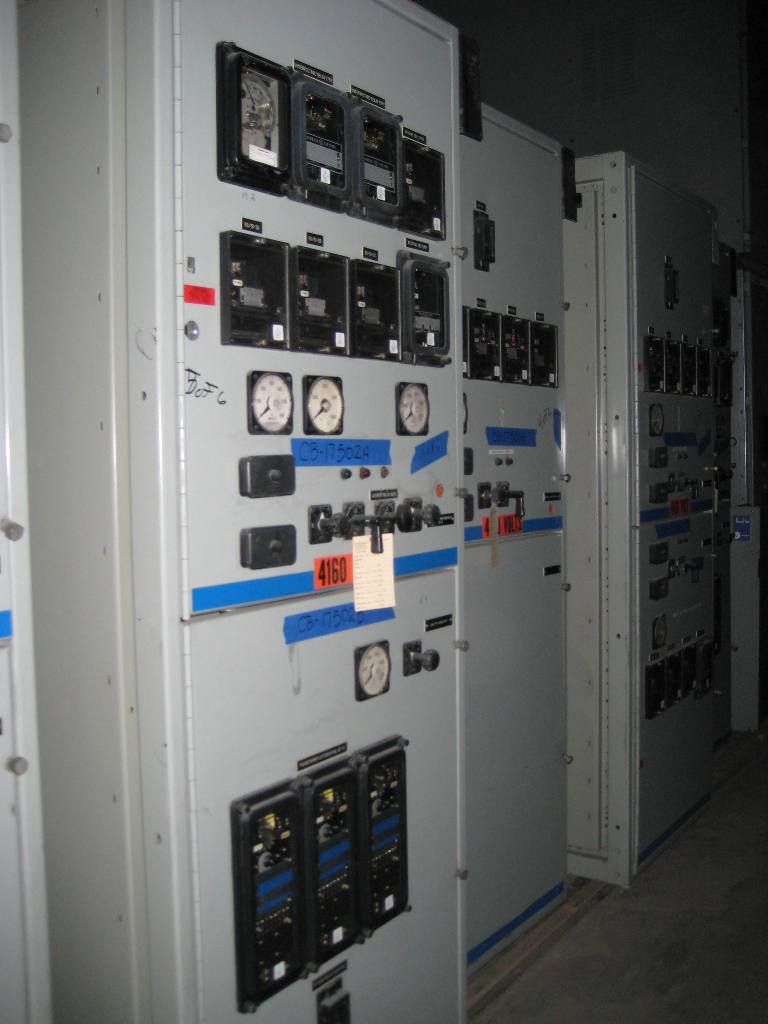

CB-17498A

2 X GE NGV UV RELAYS
3 X GE IFC TOC RELAYS
1 X GE IFC GROUND TOC
1 X GE IAC NEUTRAL TOC

CB-17498B

2 X PT DRAWERS
2 X DOUBLE FUSED 4200:120 PT'S
3 X GE STD TRANSFORMER DIFFERENTIAL RELAYS

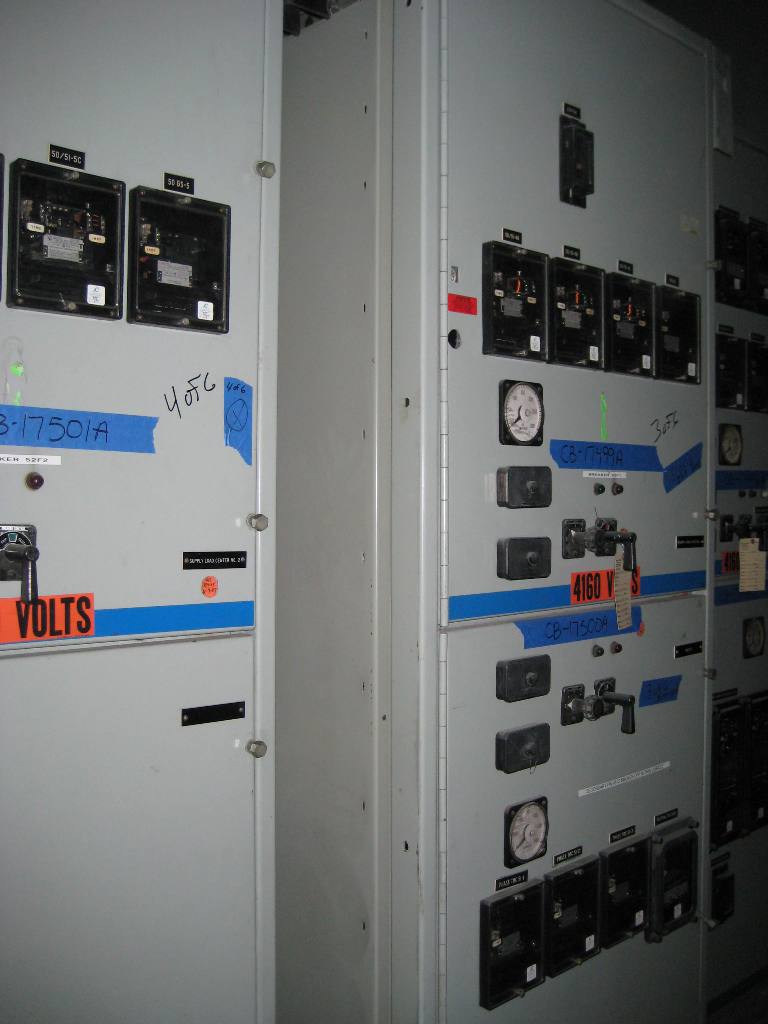

CB-17499A & CB-17501A (EACH):

3 X GE IFC 50/51 TOC RELAYS
1 X GE HFC GROUND TOC RELAY

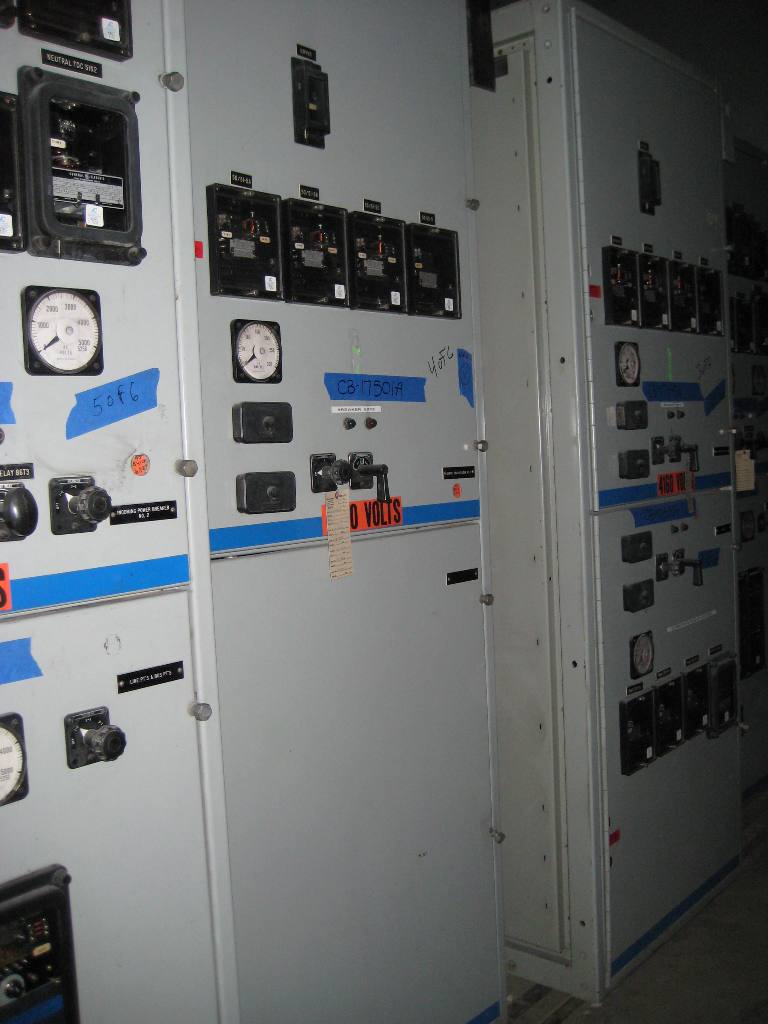

CB-17500A:

3 X GE IFC TOC RELAYS
1 X GE IAC NEUTRAL TOC RELAY
