  2. 1200 Amp, GENERAL ELECTRIC, VB1-4.16-250-1, 5000 V., 125 VDC CLOSE & TRIP, ML-18

1200 Amp, GENERAL ELECTRIC, VB1-4.16-250-1, 5000 V., 125 VDC CLOSE & TRIP, ML-18

https://belyeapower.redstormlabs.com/web/image/product.template/27399/image_1920?unique=e9162e8

VACUUM CIRCUIT BREAKER

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Product Number: 037761
    Request Quote

    Full Product Description

    CB-17502:

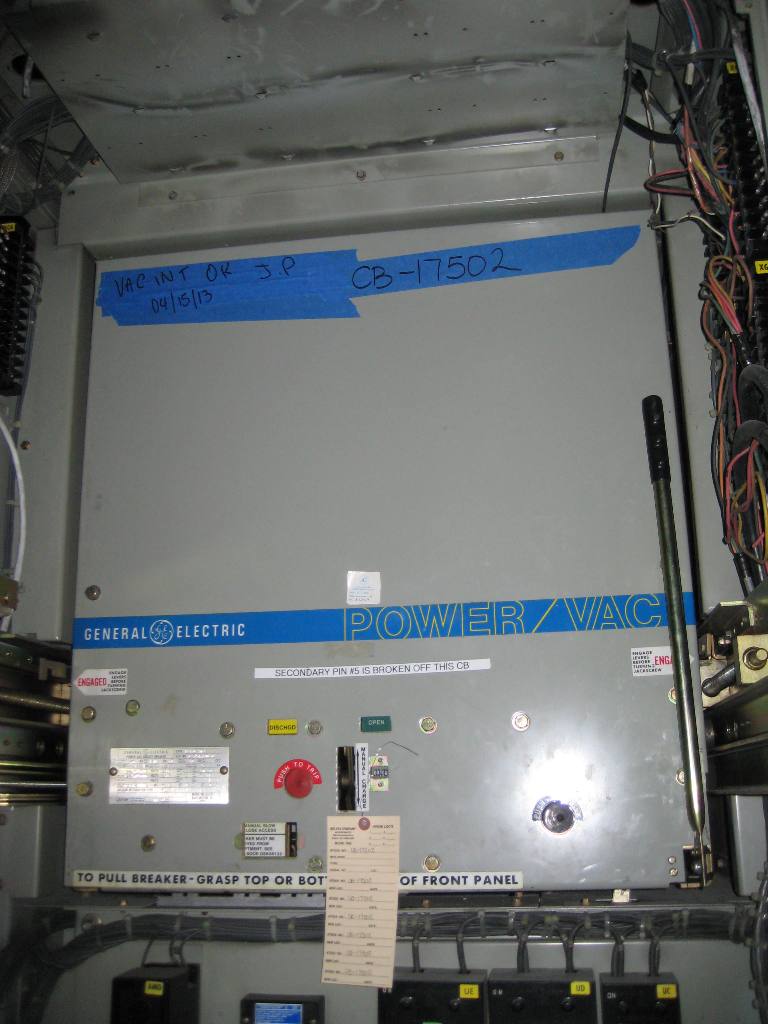

    ONE (1) 1200 AMP GENERAL ELECTRIC VACUUM BREAKER
    TYPE VB1-4.16-250-1
    4.76 KV MAX
    60 HERTZ
    60 BIL
    5 CYCLE INTERRUPT
    29 KA SHORT CIRCUIT
    58 KA CLOSE & LATCH
    125 VDC CLOSE & TRIP
    CONNECTION DIAGRAM: 0209B8201P002
    WEIGHT: 470 LBS
    ML-18 OPERATING MECHANISM
    VACUUM INTERRUPTER TYPE 42B1
    IB: GEK86132
