7500/11200 KVA, Pri 12470Y/7200, Sec 2400 D, ABB, GSU, COPPER
GENERATOR STEP-UP TRANSFORMER
Product Number:
037677
Full Product Description
JVT-3446:

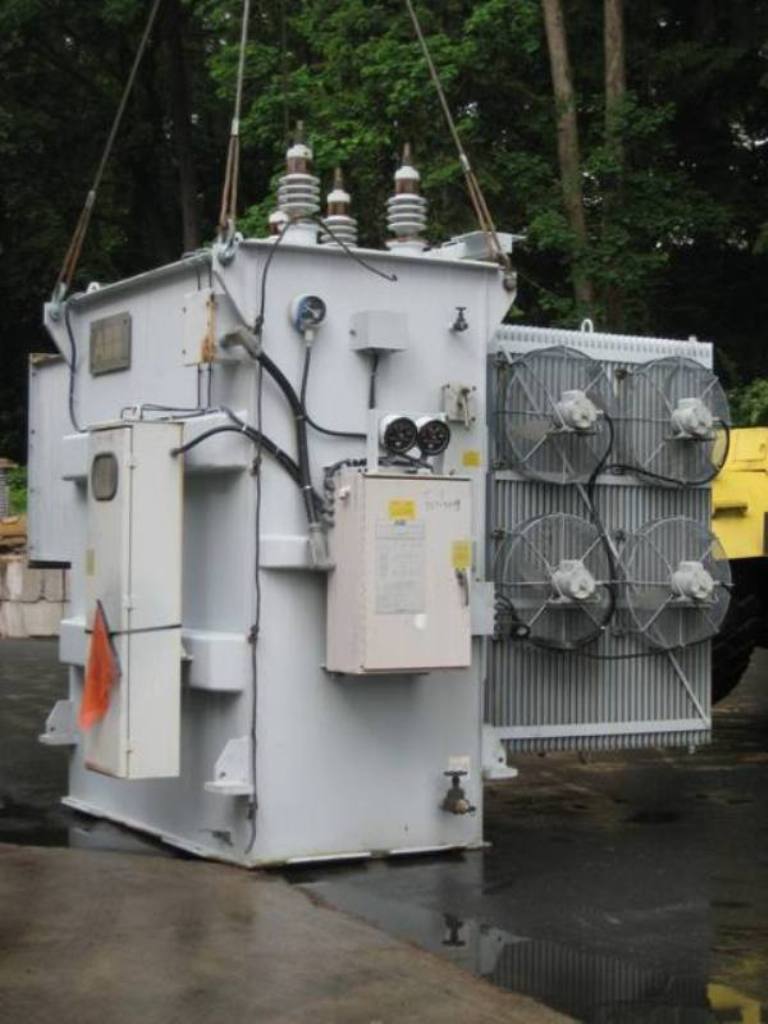

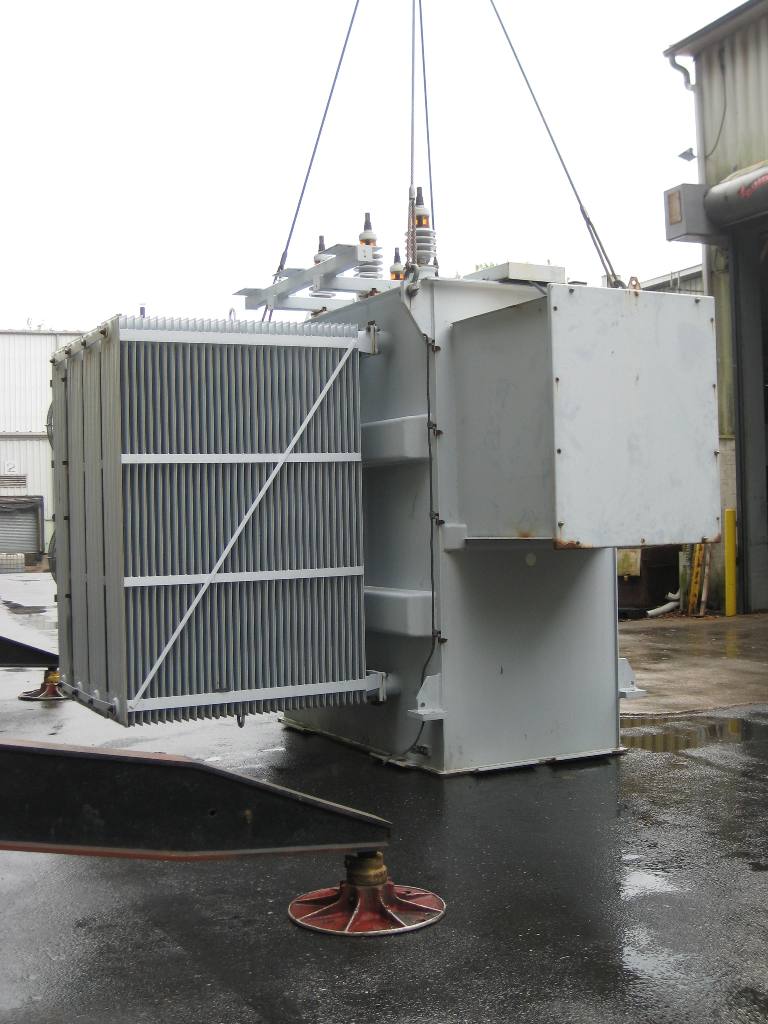

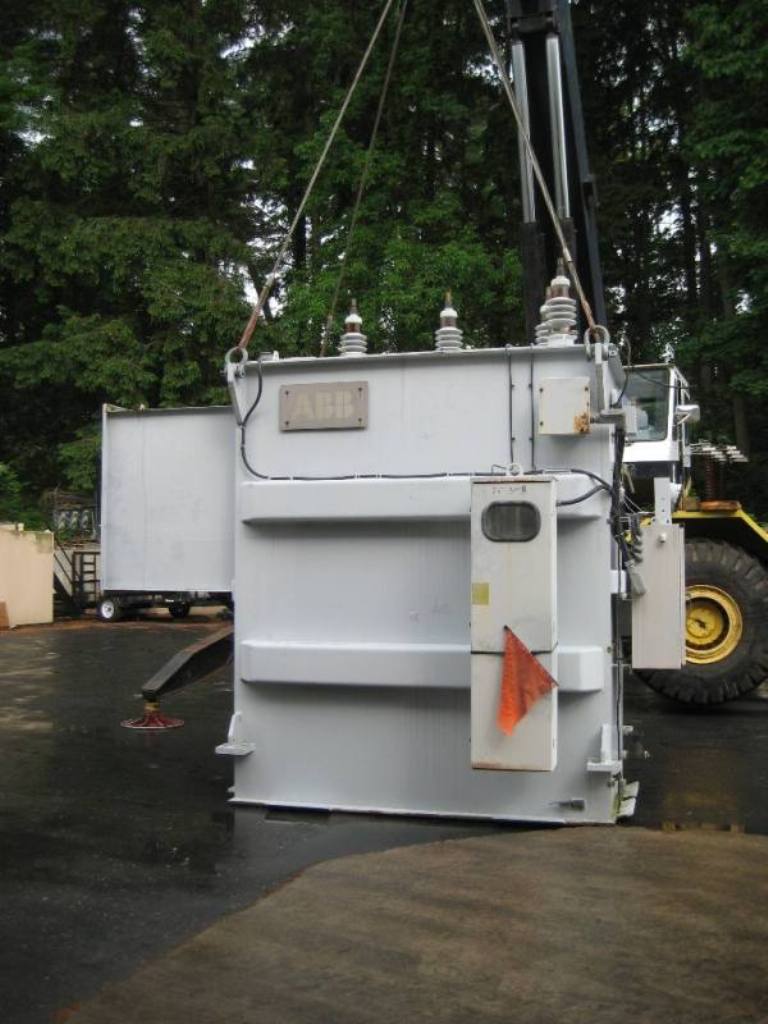

ONE (1) 7500/8400/10000/11200 KVA ABB GENERATOR STEP-UP TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS OA/FA, 55/65 DEG. C RISE, 6.5% IMPEDANCE, COPPER
WINDINGS, HV TOP X LV SIDE, 3 X 600:5 HV MRCT'S ACCURACY CLASS C400,
3 X 2000:5 LV MRCT'S ACCURACY CLASS C400, REMOVABLE RADIATORS, MFG.
1996, S/N 168801BEM
HIGH VOLTAGE: 12470Y/7200 BIL: 110 KV
LOW VOLTAGE: 2400 DELTA BIL: 60 KV
TAPS: 13094-12782-12470-12158-11846
TOTAL WEIGHT: 48,504 LBS.
CORE & COILS: 19,409 LBS.
TANK & FIT.: 14,750 LBS.
OIL: 14,345 LBS. (1,979 GALS.)
DIMENSIONS: 141.71"H X 142.92"W X 156.51"D
ONE (1) 7500/8400/10000/11200 KVA ABB GENERATOR STEP-UP TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS OA/FA, 55/65 DEG. C RISE, 6.5% IMPEDANCE, COPPER
WINDINGS, HV TOP X LV SIDE, 3 X 600:5 HV MRCT'S ACCURACY CLASS C400,
3 X 2000:5 LV MRCT'S ACCURACY CLASS C400, REMOVABLE RADIATORS, MFG.
1996, S/N 168801BEM
HIGH VOLTAGE: 12470Y/7200 BIL: 110 KV
LOW VOLTAGE: 2400 DELTA BIL: 60 KV
TAPS: 13094-12782-12470-12158-11846
TOTAL WEIGHT: 48,504 LBS.
CORE & COILS: 19,409 LBS.
TANK & FIT.: 14,750 LBS.
OIL: 14,345 LBS. (1,979 GALS.)
DIMENSIONS: 141.71"H X 142.92"W X 156.51"D
