2000/2576 KVA, Pri 12470 D, Sec 480 Y, 2008, SUBSTATION TYPE, ENVIRO-TEMP FR3
OIL FILLED SUBSTATION TRANSFORMER
Product Number:
037645
Full Product Description

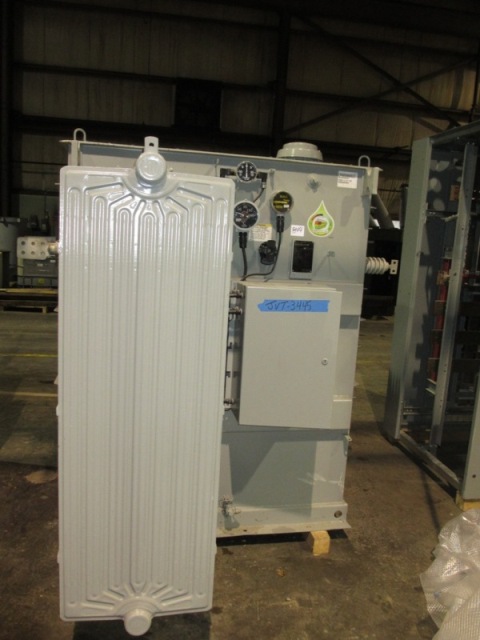

BELYEA STOCK # JVT-3445

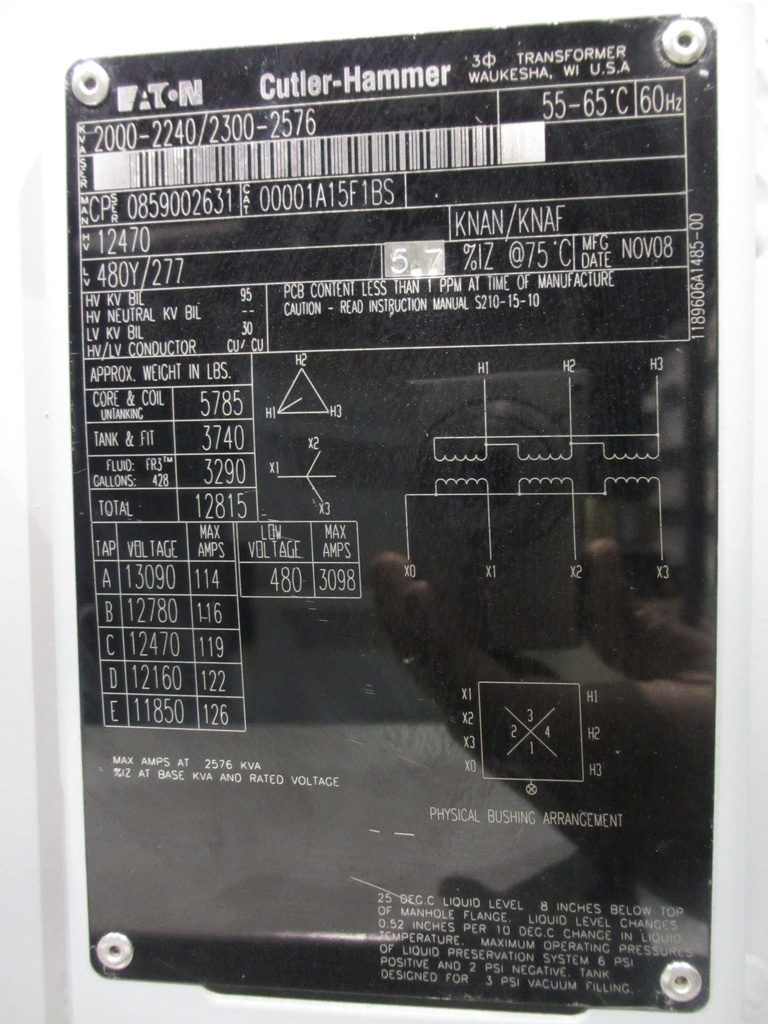

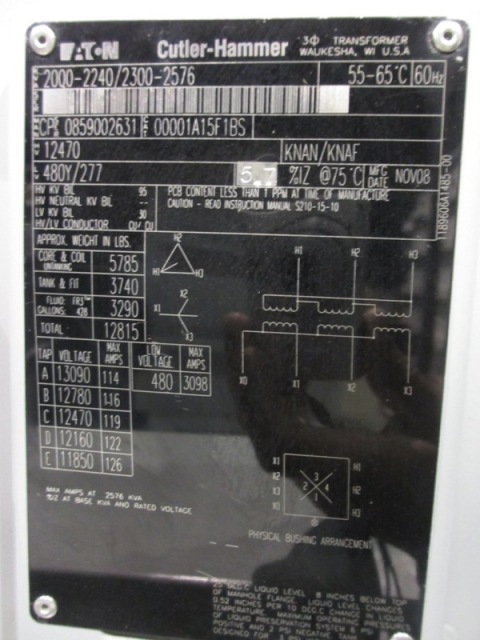

ONE (1) 2000/2576KVA CUTLER HAMMER TRANSFORMER
- SUBSTATION TYPE
- ENVIRO-TEMP FR3 TYPE OIL FILLED (428 GAL)
- 3PH/60 HZ

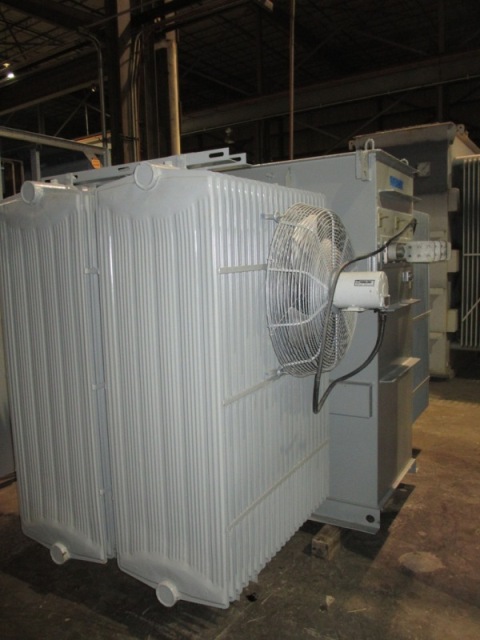

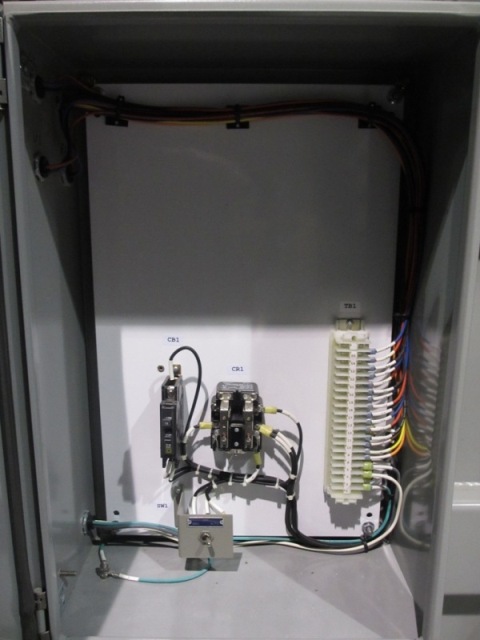

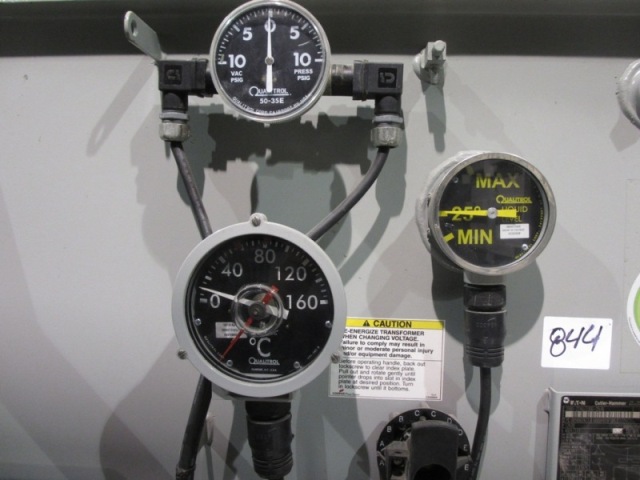

- CLASS KNAN/KNAF
- 55/65 DEGREE C RISE
- 5.7% IMPEDENCE
- MFG 2008
HV: 12470 VOLTS DELTA BIL: 90KV
LV: 480Y/277 VOLTS WYE BIL: 30KV
TAPS: 13090, 12780, 12470, 12160, 11850
BUSHING LOCATION: HV-SIDE LV-SIDE
BUSHING HEIGHTS : HV:55.5" LV:55.5"
WEIGHTS
CORE & COILS : 5,785 LBS
TANK & FITTINGS: 3,740 LBS
FLUID (428 GAL): 3,290 LBS
TOTAL -------- : 12,815 LBS
DIMENSIONS: 79"H x 62"W x 109"D
