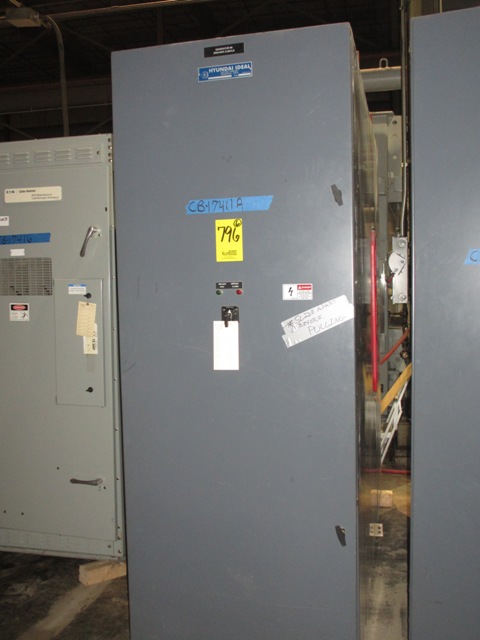

1200 Amp, CUTLER HAMMER, 150VCP-W500, 13.8 KV, INDOOR HOUSED, SWITCHGEAR

CB-17412 & A/B:

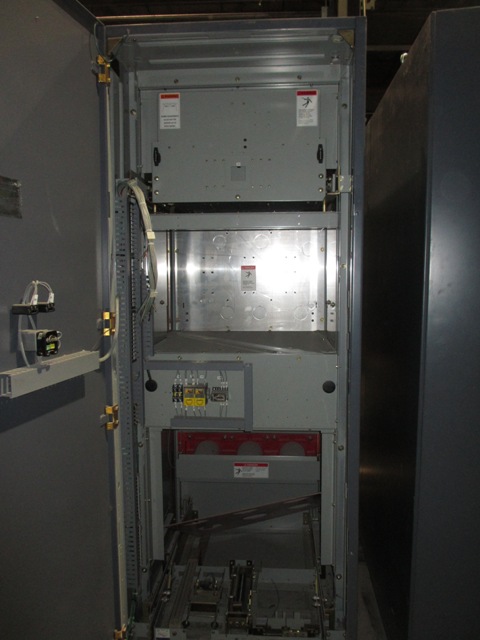

ONE (1) INDOOR HOUSED, SINGLE HIGH COLUMN OF OEM SWITCHGEAR CONTAINING:

CB-17412:

ONE (1) 1200 AMP CUTLER HAMMER VACUUM CIRCUIT BREAKER
TYPE 150VCP-W500
13.8 KV (15 KV MAX.)
60 HERTZ
95 KV BIL
18 KA
5 CYCLES
62 KA CLOSE & LATCH
125 VDC MOTOR
125 VDC CLOSE & TRIP
WL-35338B VACUUM INTERRUPTER TYPE
INSTRUCTION BOOK 32-255-1G
WIRING DIAGRAM 691C386H44
350 LBS.
135 OPERATIONS

CB-17412A:

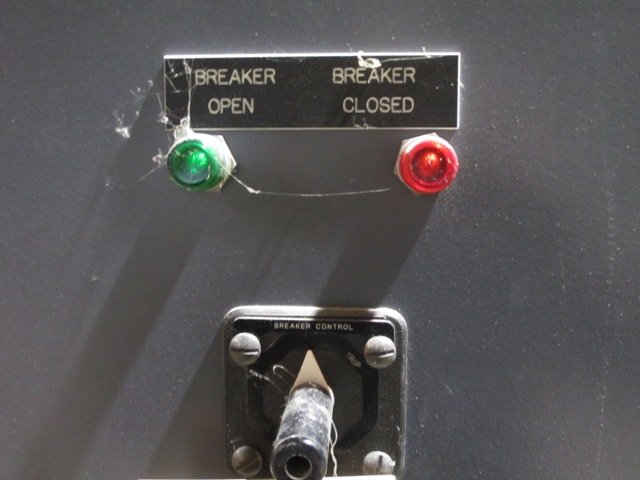

1 X BREAKER CONT. SWITCH
1 X SET OF INDICATING LIGHTS

CB-17412B:

1 X DRAW-OUT PT DRAWER
100:1 (12000:12V) DOUBLE FUSED PT
