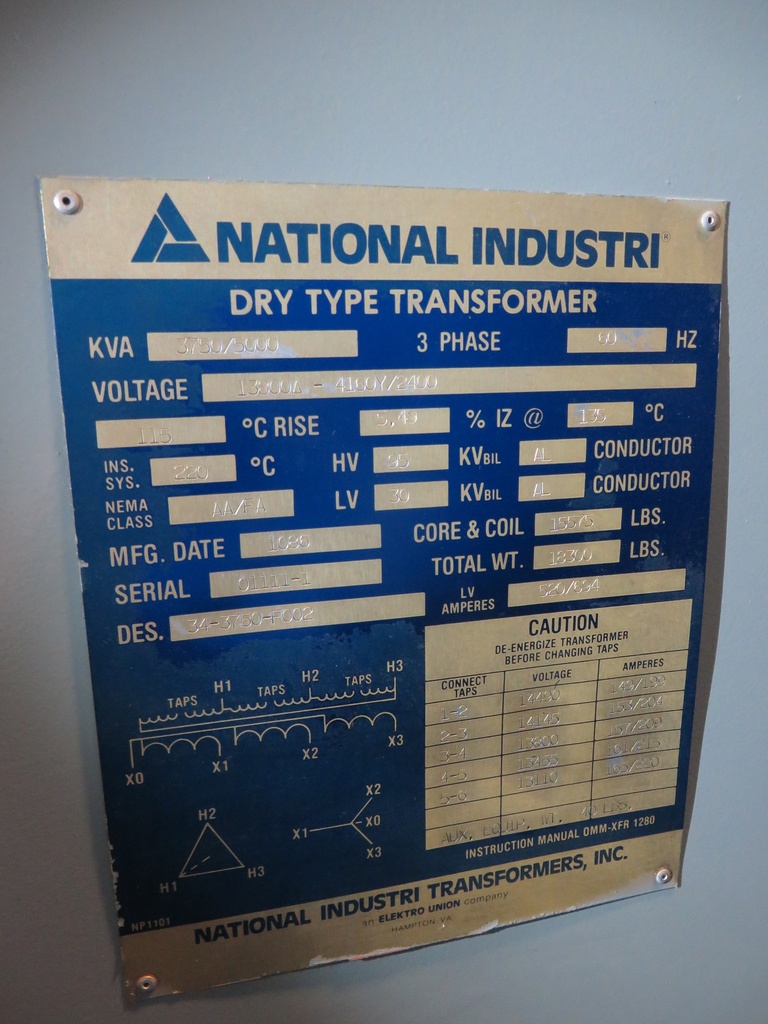

3750/5000 KVA, Pri 13800 D, Sec 4160Y/2400, NATIONAL INDUSTRI, INDOOR
INDOOR DRY TYPE TRANSFORMER
Product Number:
037550
Full Product Description
T-5663
ONE (1) 3750/4168/5000 KVA NATIONAL INDUSTRI INDOOR DRY TYPE TRANSFORMER,
3 PHASE, 60 HERTZ, CLASS AA/FA, 115/150 DEG. C RISE, 5.49% IMPEDANCE,
ALUMINUM WINDINGS, HV LEFT AND LV RIGHT, S/N 01111-1
HIGH VOLTAGE: 13800 DELTA BIL: 95 KV
LOW VOLTAGE: 4160Y/2400 BIL: 30 KV
TAPS: 14490-14145-13800-13455-13110
TOTAL WEIGHT: 18,300 LBS.
CORE & COILS: 15,575 LBS.
DIMENSIONS: 120"H X 87"W X 108"D
C & C: 97"H X 76.5"W X 35"D
