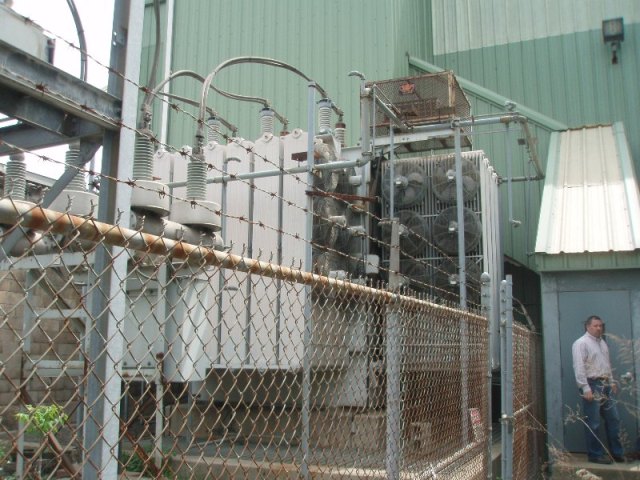

42000/70000 KVA, Pri 26400 D, Sec 13800Y/7970, DELTA STAR, SUBSTATION:1

ONE (1) 42/56/70 MVA DELTA STAR SUBSTATION TRANSFORMER, 3 PHASE, 60 HERTZ,
CLASS OA/FA/FA, 65 DEG. C RISE, 12.1% IMPEDANCE, DRAIN & SAMPLE
VALVE, DIAL TYPE THERMOMETER WITH CONTACTS, LIQUID LEVEL GAUGE
WITH CONTACTS, PRESSURE VACUUM GAUGE, PRESSURE RELIEF VALVE,
PRESSURE RELIEF DEVICE WITH CONTACTS, HV ARRESTERS AND BRACKET,
WINDING TEMPERATURE INDICATOR, SUDDEN PRESSURE RELAY, AUXILIARY
CONTROL CABINET, NITROGEN PRESERVATION SYSTEM,
HV TOP ANSI 3, LV SIDE ANSI 1 FLANGE, MFG. 1989

HIGH VOLTAGE: 26400 DELTA BIL: 200 KV
LOW VOLTAGE: 13800Y/7970 BIL: 110 KV
TAPS: 27720-27060-26400-25740-25080

TOTAL WEIGHT: 145,300 LBS.
CORE & COILS: 68,900 LBS.
TANK & FIT.: 43,800 LBS.
RAD OIL: 9,100 LBS. (1210 GALS.)
TANK OIL: 23,500 LBS. (3430 GALS.)
DIMENSIONS: 299"H X 261"W X 236"D
SHIPPING: 162"H X 112"W X 140"D
