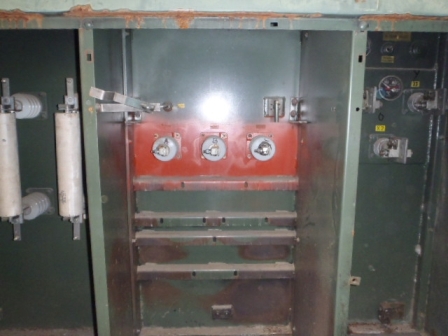

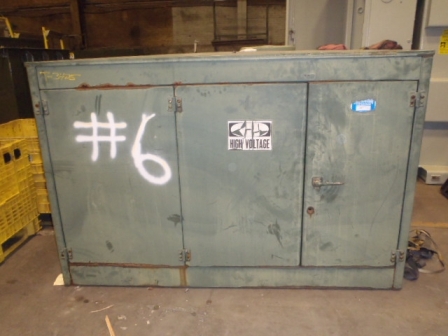

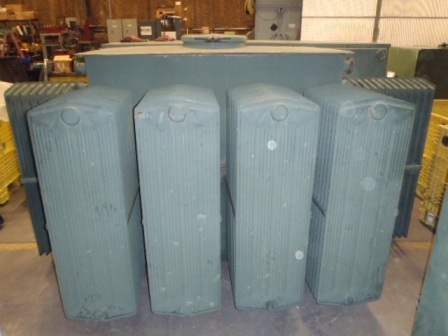

1500 KVA, Pri 13200 D, Sec 575 Y, BALTEAU, LIVE FRONT, RADIAL FEED, R-TEMP:1

JVT-3425

ONE (1) 1470 KVA BALTEAU COMPARTMENTALIZED PADMOUNT TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS OA, 65 DEG. C RISE, 5.92% IMPEDANCE, LIVE FRONT,
RADIAL FEED, 2 POS. LBOR SWITCH, ALUMINUM WINDINGS, DRAIN & SAMPLE
VALVE, DIAL TYPE THERMOMETER, LIQUID LEVEL GAUGE, PRESSURE RELIEF
VALVE, PRESSURE VACUUM GAUGE, HV EYEBOLT, LV 2 HOLE, S/N PQK-0989,
R-TEMP

HIGH VOLTAGE: 13200 DELTA BIL: 95 KV
LOW VOLTAGE: 575 WYE BIL: 30 KV
TAPS: 13860-13530-13200-12870-12540

TOTAL WEIGHT: 9,365 LBS.
R-TEMP: 318 GALS.
DIMENSIONS: 58"H X 89"W X 78"D
HV BUSHING: 36"H
LV BUSHING: 44"H X 36"H
