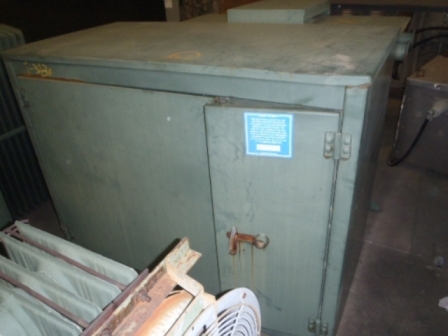

75 KVA, Pri 13200 D, Sec 460Y/266, BALTEAU, LIVE FRONT, RADIAL FEED, R-TEMP:1

JVT-3430

ONE (1) 75 KVA BALTEAU COMPARTMENTALIZED PADMOUNT TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS OA, 80 DEG. C RISE, 4.80% IMPEDANCE, LIVE FRONT,
RADIAL FEED, BAYONET FUSES, HV COPPER, LV ALUMINUM, DRAIN & SAMPLE

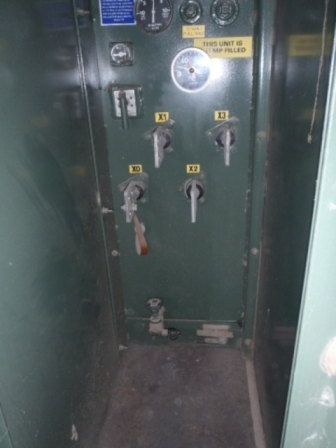

VALVE, DIAL TYPE THERMOMETER, LIQUID LEVEL GAUGE, PRESSURE VACUUM

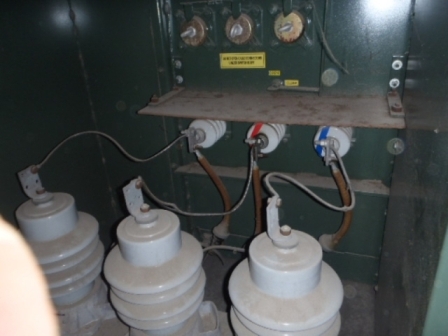

GAUGE, PRESSURE RELIEF DEVICE, HV ARRESTERS, FUSED, HV 2 HOLE,
LV 4 HOLD, S/N PUC-0178, R-TEMP

HIGH VOLTAGE: 13200 DELTA BIL: 95 KV
LOW VOLTAGE: 460Y/266 BIL: 30 KV
TAPS: 13860-13530-13200-12870-12540

TOTAL WEIGHT: 2,200 LBS.
DIMENSIONS: 44"H X 58"W X 54"D
HV BUSHING: 24"H
LV BUSHING: 31"H X 26"H
