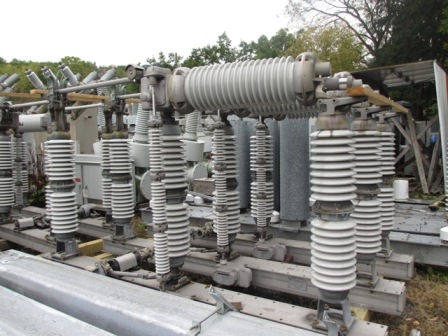

1200 Amp, S & C, No. MARK II, 115000 V., CIRCUIT SWITCHER

CB-17312

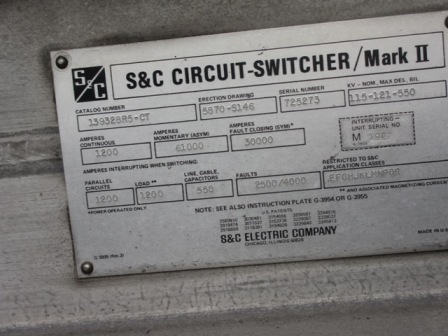

ONE (1) 1200 AMP S&C CIRCUIT SWITCHER
TYPE MARK II
115 KV NOM.
121 KV MAX.
61 KA MOM.
30 KA RMS., FAULT CLOSING, 3 PHASE SYM. DUTY CYCLE
550 KV BIL
RESTRICTED TO S&C APPLICATION CLASSES EFGHJKLMNPQR
CAT. #139328R5-CT
ERECTION DRAWING 5870-S146
AMPERES INTERRUPTING WHEN SWITCHING:
1200 AMPS PARALLEL CIRCUITS
1200 AMPS LOAD
550 AMPS LINE CAPABLE CAPACITORS
2500/4000 AMP FAULTS

OPTIONAL S&C SWITCH OPERATOR INFO:
TYPE MOTO-MECH
STYLE HEAVY-DUTY
OPERATOR VOLTAGE 125 VDC
CAT. #38706BJLQS100
