1200 Amp, GENERAL ELECTRIC, VB7.2-500-3, 7.2 KV, SWITCHGEAR, INDOOR HOUSED:1

CB-17245 & A AND CB-17246 & A:

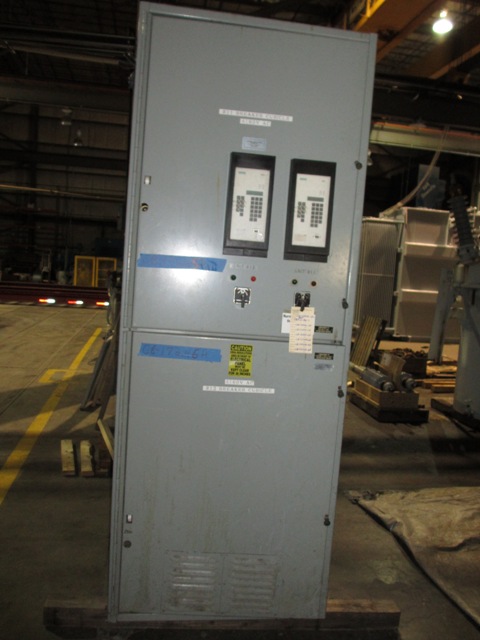

ONE (1) 2 HIGH, SINGLE COLUMN, INDOOR HOUSED GENERAL ELECTRIC SWITCHGEAR
CONTAINING:

CB-17245 & CB-17246:

TWO (2) 1200 AMP GENERAL ELECTRIC VACUUM BREAKERS
TYPE VB7.2-500-3
7.2 KV
8.25 KV MAX.
60 HERTZ
95 KV BIL
5 CYCLE
33 KA INTERRUPT
1.25 VOLTAGE RANGE FACTOR
66 KA CLOSE & LATCH ABILITY
125 VDC CLOSE & TRIP
ML-17 OPERATING MECHANISM
VACUUM INTERRUPTER TYPE 41A4/41G2
INSTRUCTION BOOK GEK-39671
MFG. 01/1982

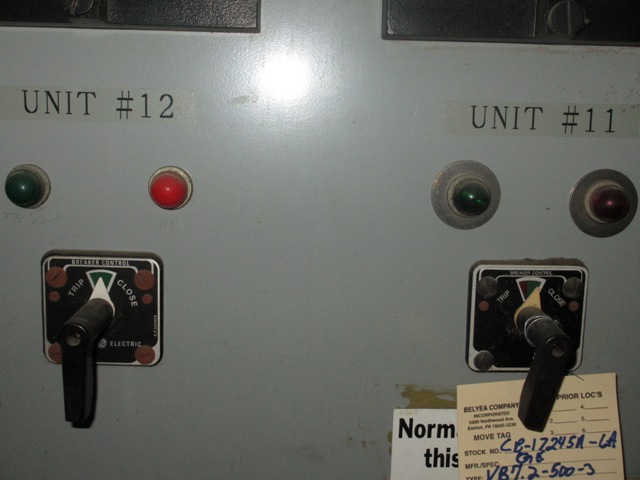

CB-17245A (TOP):

TWO (2) BREAKER CONT. SWITCHES
TWO (2) INDICATING LIGHTS (RED & GREEN)

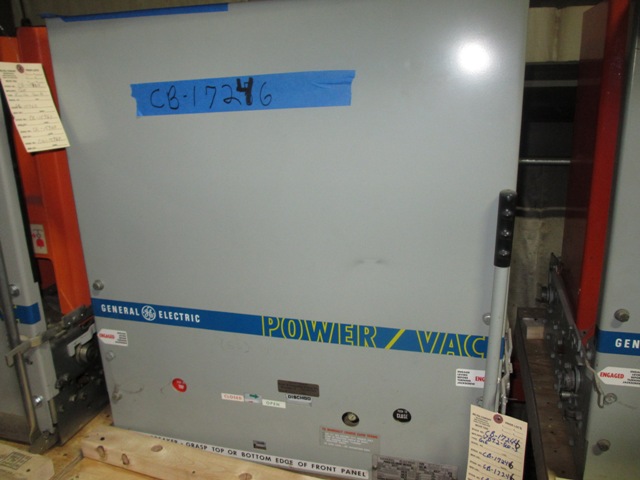

CB-17246A (BOTTOM):

EMPTY
