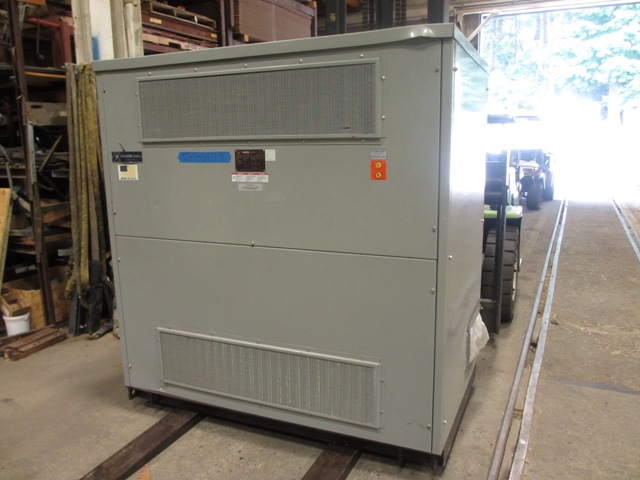

500 KVA, Pri 4160Y/2400, 208 D, 2009, OLSUN, OUTDOOR HOUSED:1
OUTDOOR HOUSED DRY TYPE TRANSFORMER
Product Number:
037238
Full Product Description
JVT-3409

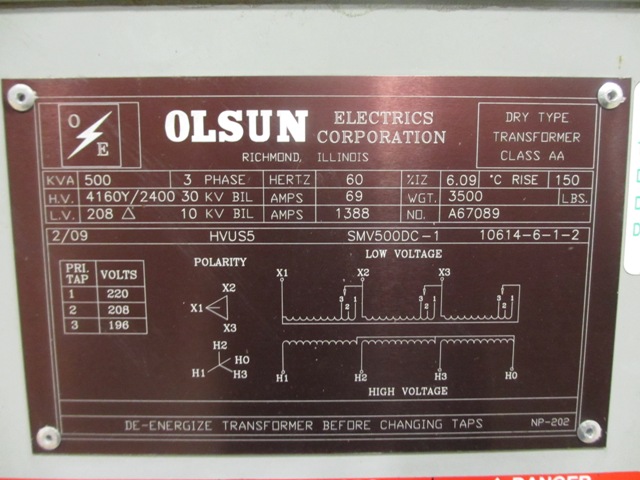

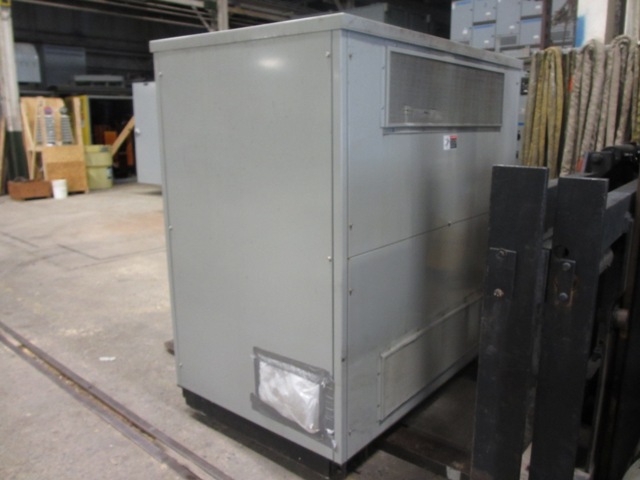

ONE (1) 500 KVA OLSUN OUTDOOR ENCLOSED DRY TYPE TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS AA, 150 DEG. C RISE, 6.09% IMPEDANCE, MFG. 2009,
S/N 10614-6-1-2
HIGH VOLTAGE: 4160Y/2400 BIL: 30 KV
LOW VOLTAGE: 208 DELTA BIL: 10 KV
TAPS: 220-208-196
TOTAL WEIGHT: 3,500 LBS.
DIMENSIONS: 72"H X 70"W X 44"D

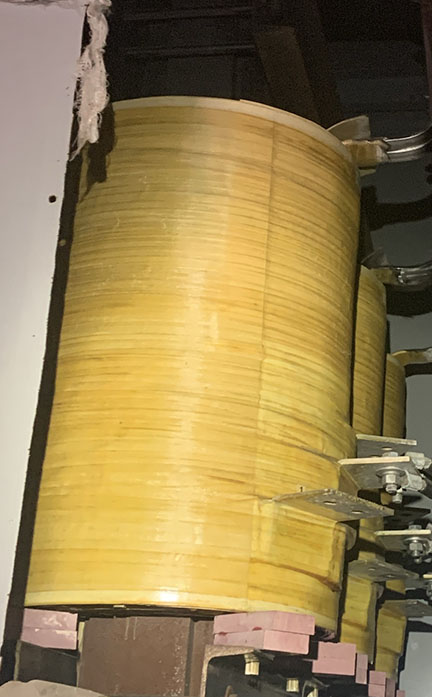

CORE & COILS: 49"H X 50"W X 26"D
ONE (1) 500 KVA OLSUN OUTDOOR ENCLOSED DRY TYPE TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS AA, 150 DEG. C RISE, 6.09% IMPEDANCE, MFG. 2009,
S/N 10614-6-1-2
HIGH VOLTAGE: 4160Y/2400 BIL: 30 KV
LOW VOLTAGE: 208 DELTA BIL: 10 KV
TAPS: 220-208-196
TOTAL WEIGHT: 3,500 LBS.
DIMENSIONS: 72"H X 70"W X 44"D
CORE & COILS: 49"H X 50"W X 26"D
