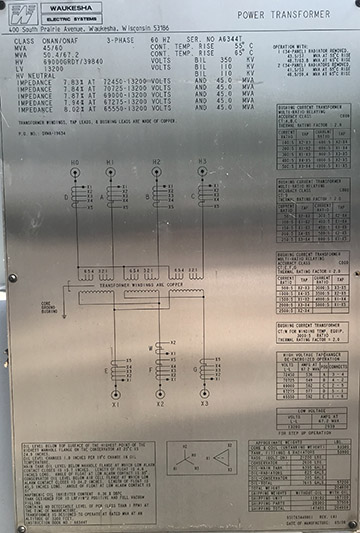

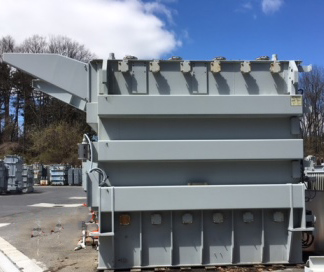

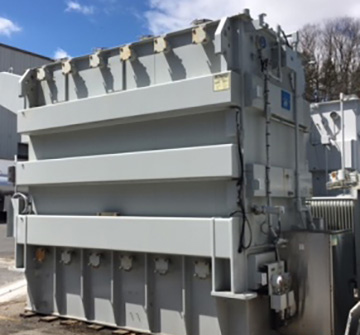

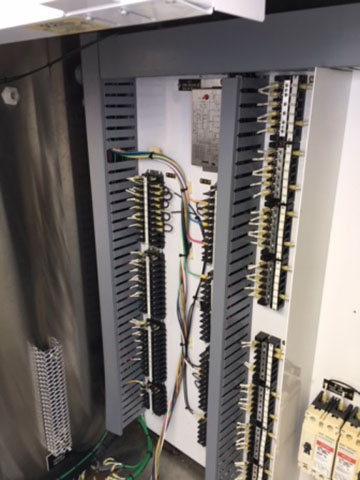

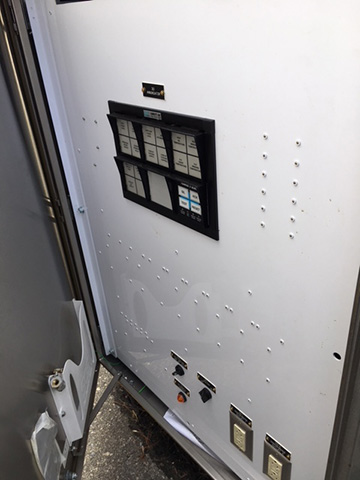

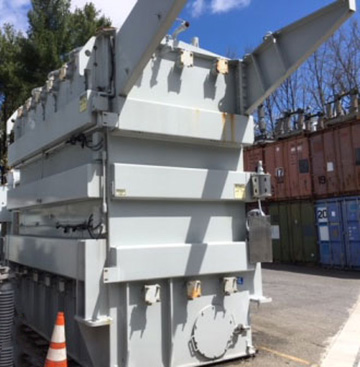

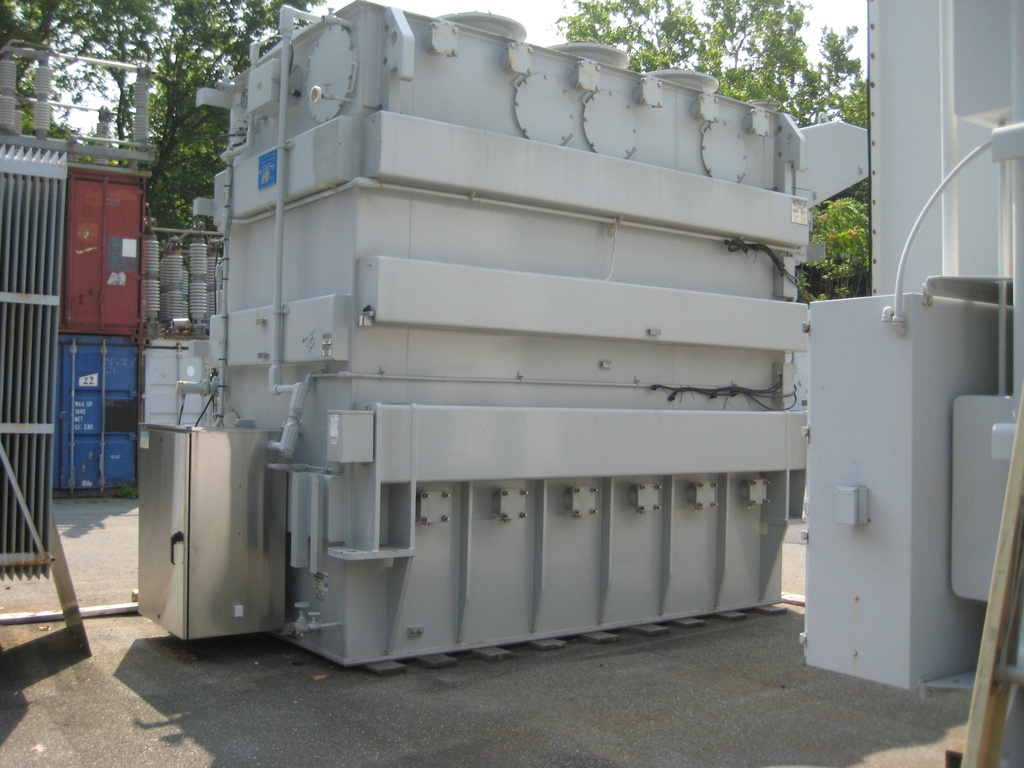

45000/67200 KVA, Pri 69000GRDY/39840, Sec 13200 D, 2008, WAUKESHA, SUBSTATION

ONE (1) 45/50.4/60/67.2 MVA WAUKESHA GENERATOR STEP-UP TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS ONAN/ONAF, 55/65 DEG. C RISE, 7.87% IMPEDANCE, COPPER
WINDINGS, 3 X 1200:5 HV MRCT'S C800, 1 X 600:5 HV NEUTRAL MRCT C800,
3 X 5000:5 LV MRCT'S C800, MFG. 2008, CORE GROUND BUSHING, S/N A6344T,
MFG. 2008

HIGH VOLTAGE: 69000GRDY/39840 BIL: 350 KV
LOW VOLTAGE: 13200 DELTA BIL: 110 KV
TAPS: 72450-70725-69000-67275-65550

TOTAL WEIGHT: 204,600 LBS.
CORE & COILS: 93,500 LBS.
TANK & FIT.: 53,900 LBS.
OIL: 57,200 LBS. (7,615 GALS.)
SHIPPING WGT: 119,100 LBS.
DIMENSIONS: 216"H X 268"L X 175"D
SHIPPING: 167"H X 183"L X 110"D
