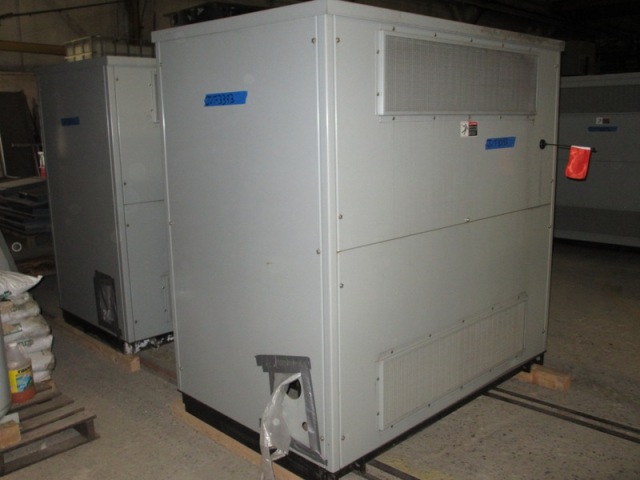

500 KVA, Pri 4160Y/2400, Sec 208 D, 2009, OLSUN, OUTDOOR, DRY:1
OUTDOOR DRY TYPE TRANSFORMER
Product Number:
037167
Full Product Description
JVT-3393
ONE (1) 500 KVA OLSUN OUTDOOR DRY TYPE TRANSFORMER, 3 PHASE, 60 HERTZ, CLASS
AA, 150 DEG. C RISE, 6.18% IMPEDANCE, MFG. 09, 10614-6-1-3
HIGH VOLTAGE: 4160Y/2400 BIL: 30 KV
LOW VOLTAGE: 208 DELTA BIL: 10 KV
TAPS: 220-208-196
TOTAL WEIGHT: 3500 LBS.
DIMENSIONS: 73"H X 70"W X 46"D

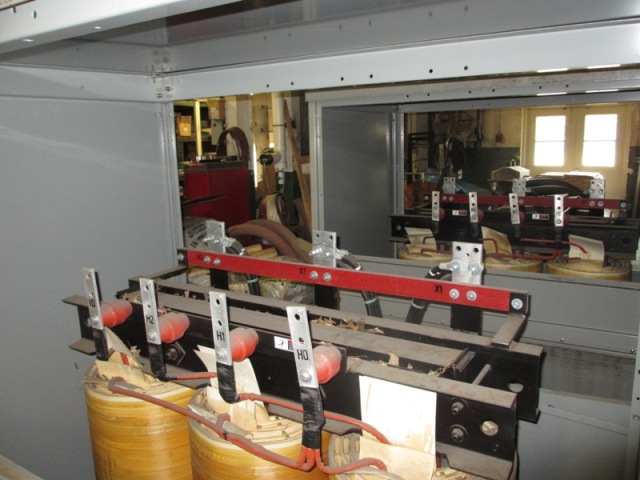

CORE & COILS: 48"H X 50"W X 33"D
