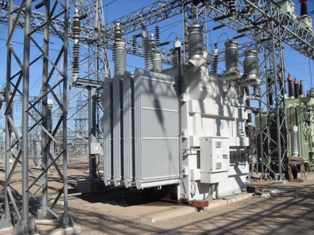

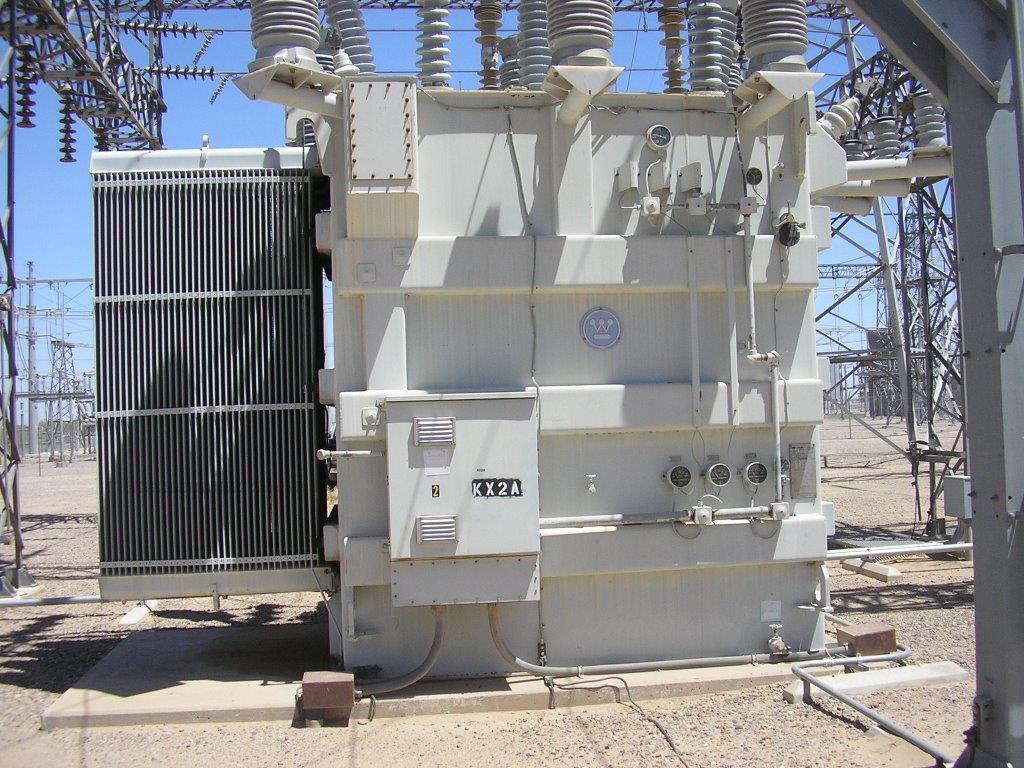

25000/41687 KVA, Pri 115000 Y, Sec 69000 Y, 12470 D, WESTINGHOUSE, AUTOTRANSFORM

ONE (1) 25000/33333/41667 KVA WESTINGHOUSE AUTO TRANSFORMER, 3 PHASE, 60
HERTZ, CLASS OA/FA/FA, 65 DEG. C RISE, 4.1% IMPEDANCE*, 6 X 600:5
HV MRCT'S C-400, 6 X 2000:5 HV MRCT'S C-800, 3 X 2000:5 NRCT'S C-400,
9 X 1200:5 MRCT'S C-400, 3 X 2000:5 LV MRCT'S C-800, 1 X 1200:5
NEUTRAL MRCT'S C-400, 6 X 600:5 LV MRCT'S C-200, MFG. 1974
,

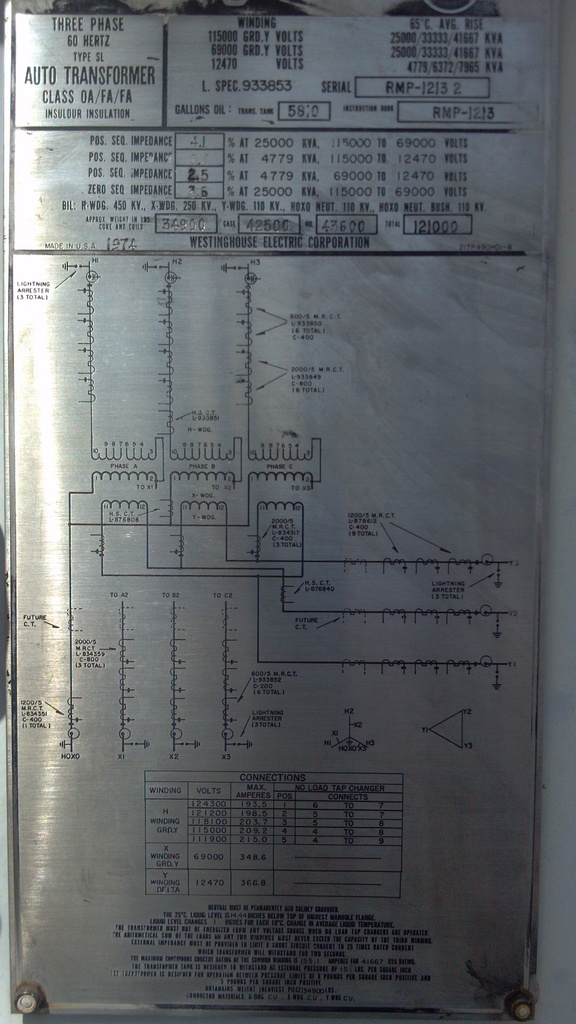

HIGH VOLTAGE: 115000 WYE BIL: 450 KV
LOW VOLTAGE: 69000 WYE BIL: 250 KV
12470 DELTA BIL: 110 KV
TAPS: 124300-121200-118100-115000-111900


TOTAL WEIGHT: 121,000 LBS.
CORE & COILS: 34,900 LBS.
TANK & FIT.: 42,500 LBS.
OIL: 43,000 LBS. (5,810 GALS.)

*IMPEDANCE:
4.1% AT 25000 KVA, 115000 V TO 69000 V
3,4% AT 4779 KVA, 115000 V TO 12470 V
2.5% AT 4779 KVA, 69000 V TO 12470 V
3.6% AT 25000 KVA, 115000 V TO 69000 V
