1200 Amp, GENERAL ELECTRIC, FKA-72.5-27000-2, 72.5 KV, 1972, 125 VDC, ML-14-0:1

CB-17151:

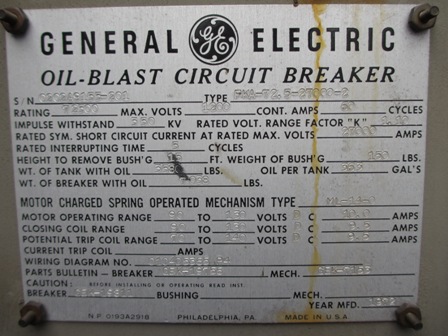

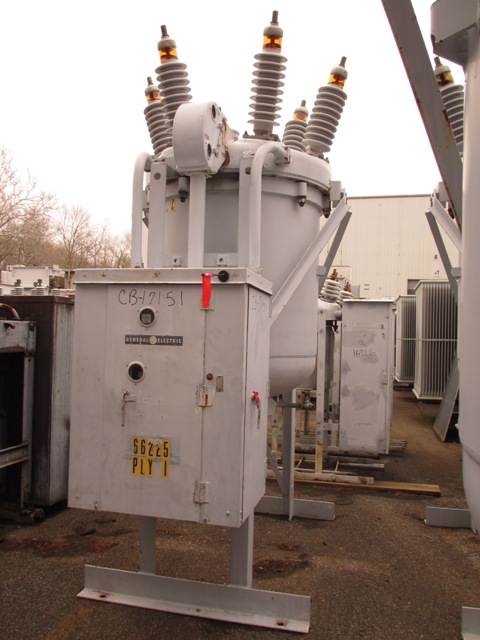

ONE (1) 1200 AMP GENERAL ELECTRIC SINGLE TANK OIL BREAKER
TYPE FKA-72.5-27000-2
72500 VOLT MAX.
60 CYCLE
27 KA SHORT CIRCUIT
1.10 K FACTOR
5 CYCLE
125 VDC MOTOR
125 VDC CLOSE & TRIP

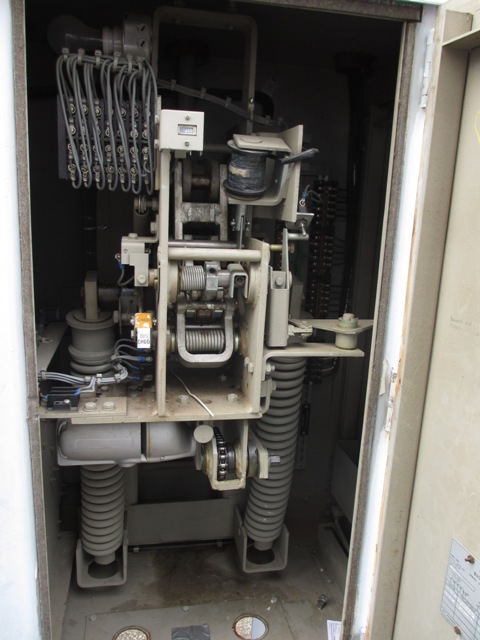

ML-14-0 SPRING CHARGED MECHANISM
WIRING DIAGRAM #0104D5365 P4
BREAKER PARTS BULLETIN - GEK-19756
MECHANISM BULLETIN - GEK-7153
BREAKER BULLETIN - GEK-19811
MFG. 1972
7,038 LBS. WITH OIL
3,580 LBS. TANK WITH OIL
363 GALLONS OF OIL PER TANK
141"H X 60"W X 96"D
S/N 0202A9155-201
