5000/7000 KVA, Pri 22900 D, Sec 4160Y/2400, FEDERAL PACIFIC, SUBSTATION
SUBSTATION TRANSFORMER
Product Number:
036922
Full Product Description

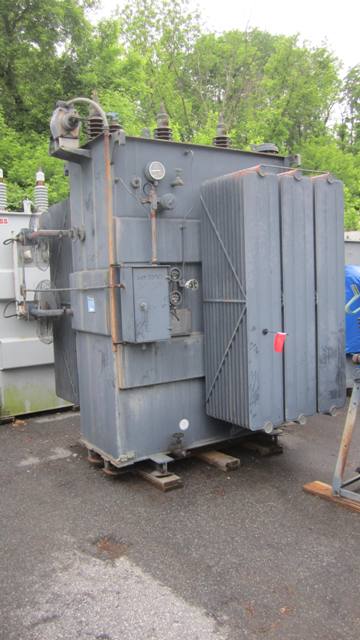

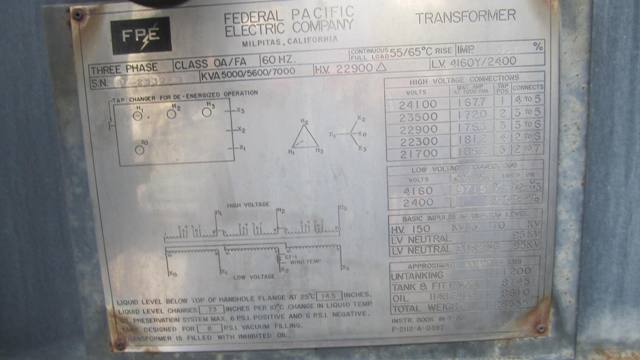

ONE (1) 5000/5600/7000 KVA FEDERAL PACIFIC SUBSTATION TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS OA/FA, 55/65 DEG. C RISE, 5.7% IMPEDANCE, LIQUID
LEVEL GAUGE, VACUUM PRESSURE GAUGE, WINDING TEMPERATURE GAUGE,
PRESSURE RELIEF CAP, LIQUID TEMPERATURE GAUGE, FAN CONTROL BOX,
2 X LEESON 115 KV FANS, S/N F-2532-2
HIGH VOLTAGE: 22900 DELTA BIL: 150 KV
LOW VOLTAGE: 4160Y/2400 BIL: 110 KV
TAPS: 24100-23500-22900-22300-21700
TOTAL WEIGHT: 28,555 LBS.
CORE & COILS: 11,200 LBS.
TANK & FIT.: 8,745 LBS.
OIL: 8,610 LBS. (1,148 GALS.)
DIMENSIONS: 144"H X 127"W X 98"D
60 HERTZ, CLASS OA/FA, 55/65 DEG. C RISE, 5.7% IMPEDANCE, LIQUID
LEVEL GAUGE, VACUUM PRESSURE GAUGE, WINDING TEMPERATURE GAUGE,
PRESSURE RELIEF CAP, LIQUID TEMPERATURE GAUGE, FAN CONTROL BOX,
2 X LEESON 115 KV FANS, S/N F-2532-2
HIGH VOLTAGE: 22900 DELTA BIL: 150 KV
LOW VOLTAGE: 4160Y/2400 BIL: 110 KV
TAPS: 24100-23500-22900-22300-21700
TOTAL WEIGHT: 28,555 LBS.
CORE & COILS: 11,200 LBS.
TANK & FIT.: 8,745 LBS.
OIL: 8,610 LBS. (1,148 GALS.)
DIMENSIONS: 144"H X 127"W X 98"D
