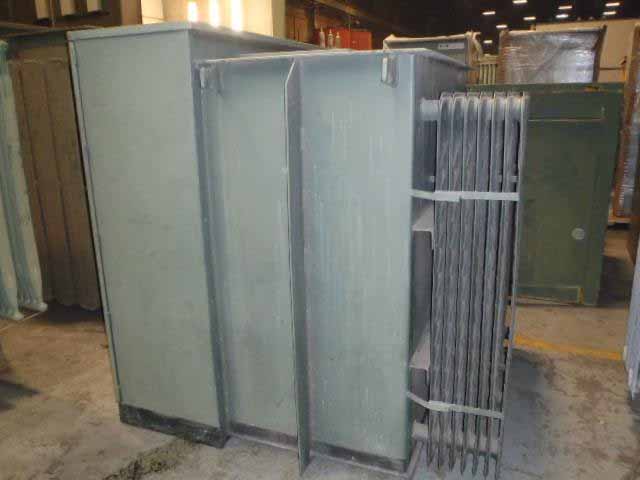

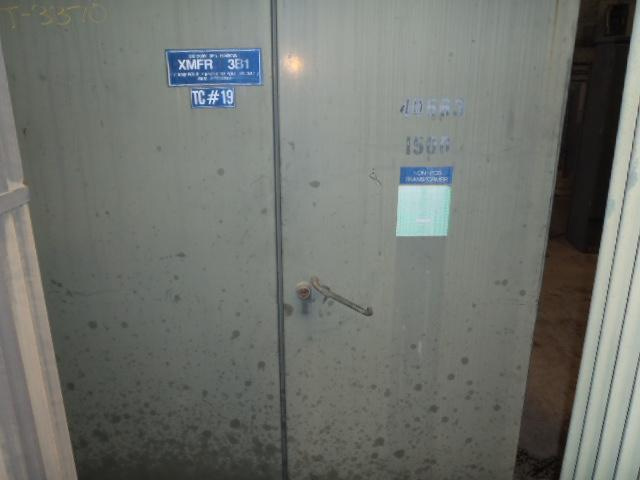

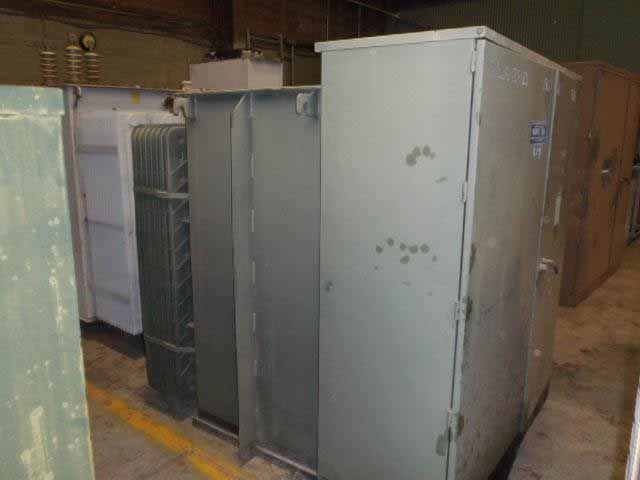

1500 KVA, Pri 34500GRDY/19920, Sec 208Y/120, GE, LIVE FRONT, RADIAL FEED:1

JVT-3370

ONE (1) 1500 KVA GE COMPARTMENTALIZED PADMOUNT TRANSFORMER, 3 PHASE, 60 HERTZ,
CLASS OA, 65 DEG. C RISE, 5.78% IMPEDANCE, LIVE FRONT, RADIAL FEED,
1-2 POS. LBOR SWITCH, DRAIN AND SAMPLE VALVE, PRESSURE RELIEF VALVE,

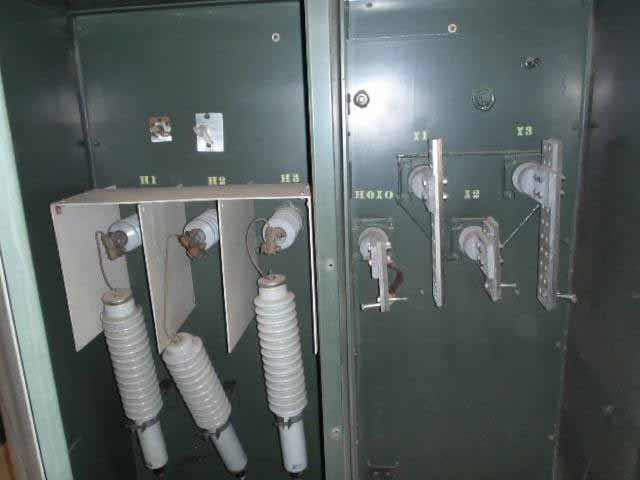

HV ARRESTERS, HV 2 HOLE, LV 6 HOLE, S/N P013984

HIGH VOLTAGE: 34500 GRDY/19920 BIL: 125 KV
LOW VOLTAGE: 208Y/120 BIL: 30 KV
TAPS: 36230-35360-34500-33640-32780

TOTAL WEIGHT: 11,000 LBS.
CORE & COILS: 4,400 LBS.
TANK & FIT.: 3,200 LBS.
OIL: 3,400 LBS. (460 GALS.)
DIMENSIONS: 77"H X 69"W X 76"D
HV COMP.: 35"W
LV COMP.: 31"W
HV BUSHING: 48.5"H
LV BUSHING: 46"H & 54"H
CABINET: 23"D
TANK: 35"D X 59"W
BACK RAD.: 15"D
