400 Amp, 5000 Volt, MERLIN GERIN, FVNR, OUTDOOR HOUSED, MOTOR STARTER, UNUSED:1

B-13388A:

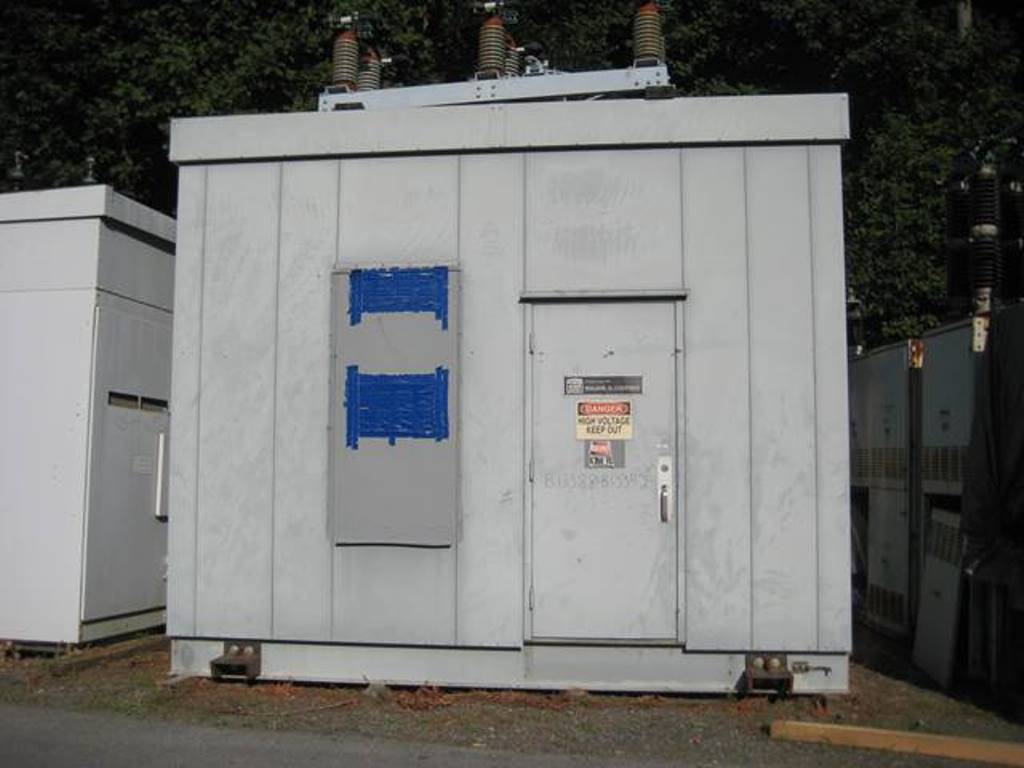

ONE (1) UNUSED 5 COLUMN LINE-UP OF MERLIN GERIN FVNR MEDIUM VOLTAGE STARTERS
HOUSED IN AN OUTDOOR POWER HOUSE CONSISTING OF:

B-13388 TO B-13391:

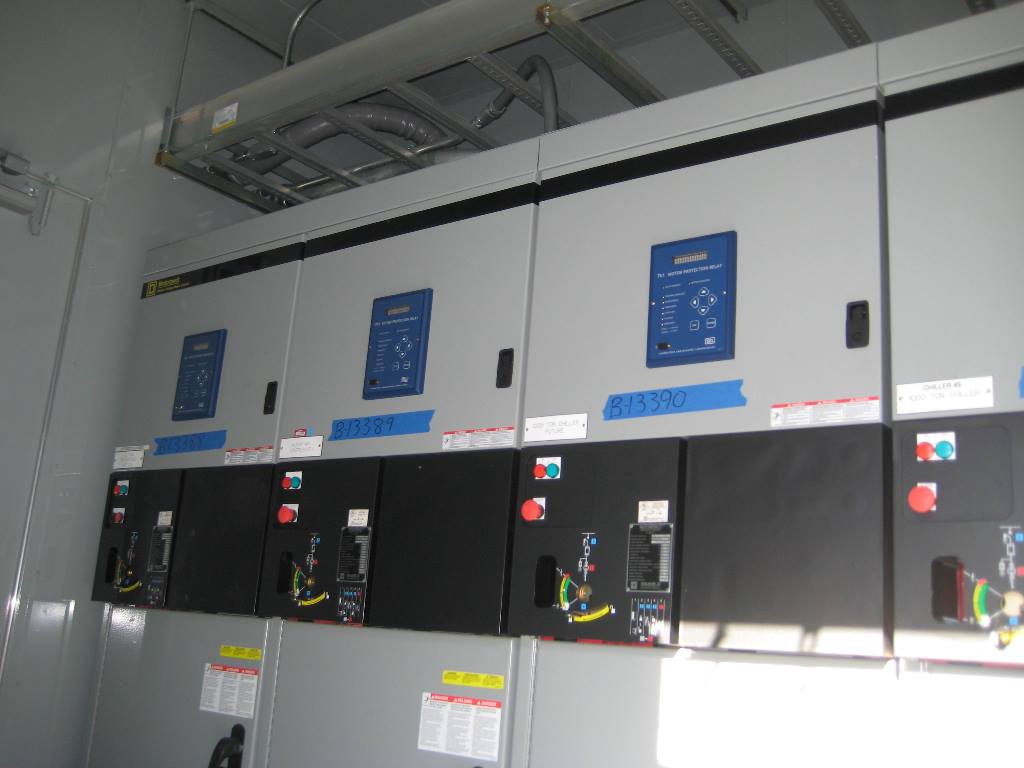

FOUR (4) 400 AMP MERLIN GERIN MEDIUM VOLTAGE VACUUM CONTACTORS
TYPE HCV-5HS (MOTORPACT)
1 X LATCHING TYPE & 3 X MAGNETICALLY HELD
7.2 KV MAX.
60 KV BIL
20 KV POWER FREQUENCY WITHSTAND
50/60 HERTZ
3 PHASE
30 MILISECOND OPENING TIME
50 KA SYM. HORIZONTAL BUS RATING
1200 AMP CONT. HORIZONTAL BUS RATING
7.0 KA INTERRUPT AT 5.0 KV
4.5 KA INTERRUPT AT 7.2 KV
120 VAC CONTROL
DRAWOUT
MFG. 12/2004
INSTRUCTION BOOK 46032-700-02
CAT. #CBD225NBMMN

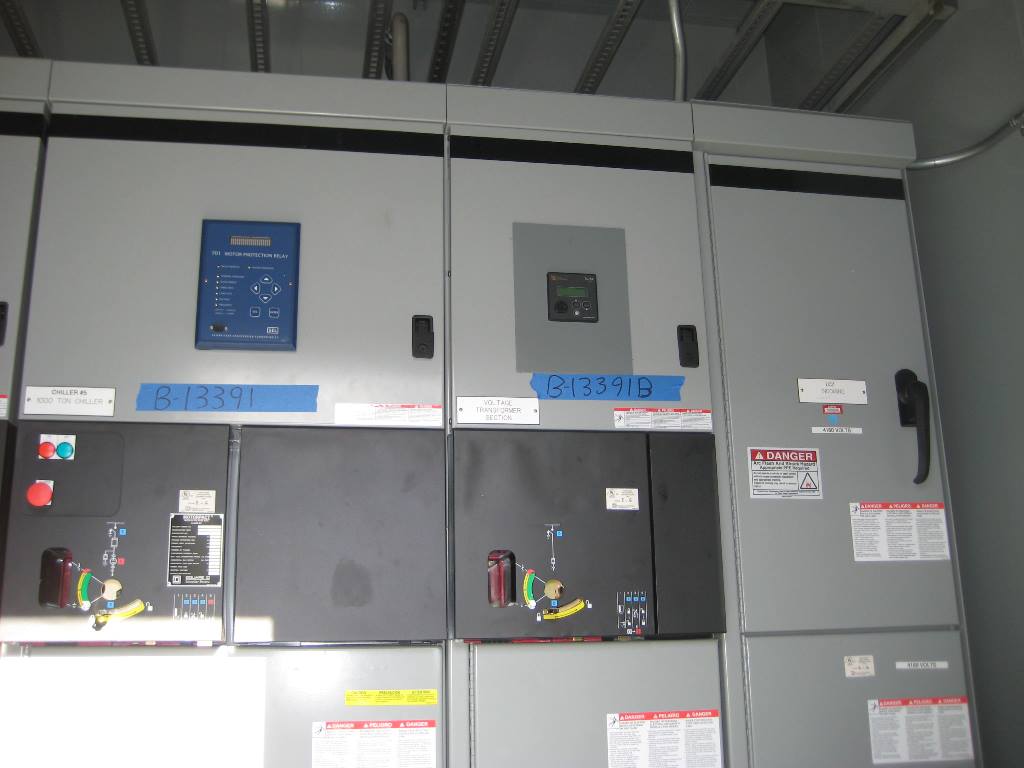

SCHWEITZER SEL 701 MOTOR PROTECTION RELAY
1 X 5 KV INSTRUMENT TRANSFORMER CPT RATED 4160:120/240
1 X 75 KVAR, 4160 VOLT GE CAPACITOR

1 X PT SECTION
1 X INCOMING SECTION
