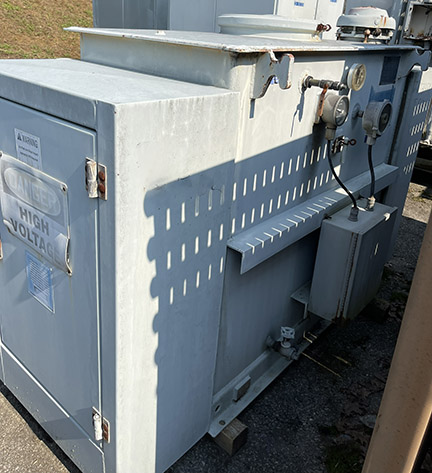

750/862 KVA, Pri 4160 D, Sec 480Y/277, GEC ALSTHOM, SUBSTATION
SUBSTATION TRANSFORMER
Product Number:
036840
Full Product Description
T-5632

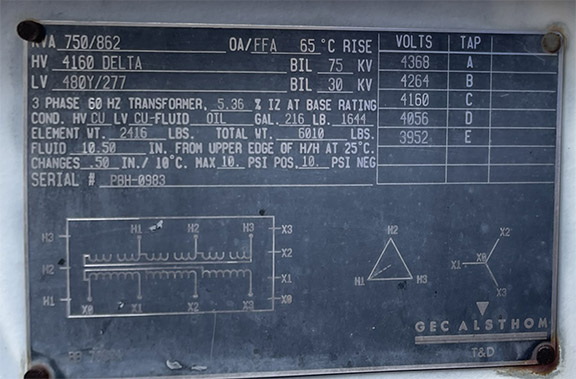

ONE (1) 750/862 KVA GEC ALSTHOM SUBSTATION TRANSFORMER, 3 PHASE, 60 HERTZ,
65 DEG. C RISE, CLASS OA/FFA, 5.36% IMPEDANCE, COPPER WINDINGS,
VACUUM PRESSURE GAUGE, WINDING TEMPERATURE GAUGE, DRAIN AND SAMPLE

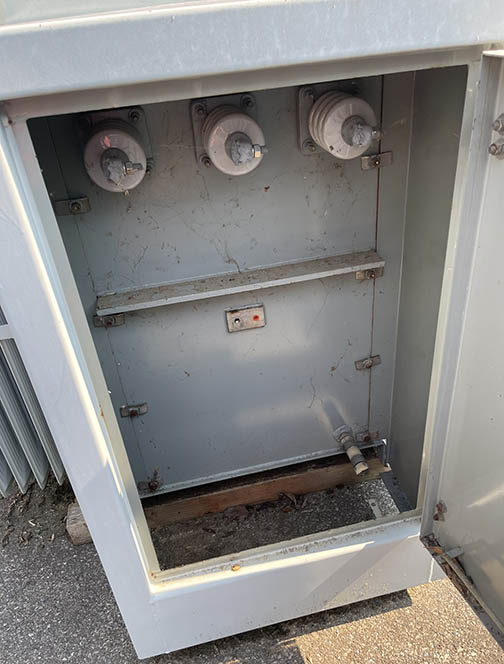

VALVE, LIQUID LEVEL GAUGE, SIDE X SIDE BUSHINGS, S/N PBH-0983
HIGH VOLTAGE: 4160 DELTA BIL: 75 KV
LOW VOLTAGE: 480Y/277 BIL: 30 KV
TAPS: 4368-4264-4160-4056-3952
TOTAL WEIGHT: 6,010 LBS.
CORE & COILS: 2,416 LBS.
TANK & FIT.: 1,950 LBS.
OIL: 1,644 LBS. (216 GALS.)
DIMENSIONS: 52"H X 88"W X 56.5"D
