750 KVA, Pri 4160 D, Sec 480Y/277, UNUSED 2005, SQUARE D, SUBSTATION, BIOTEMP
SUBSTATION TRANSFORMER
Product Number:
036835
Full Product Description
JVT-3356

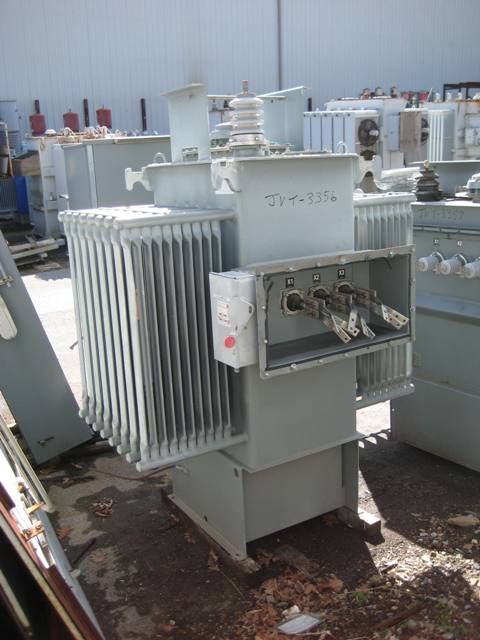

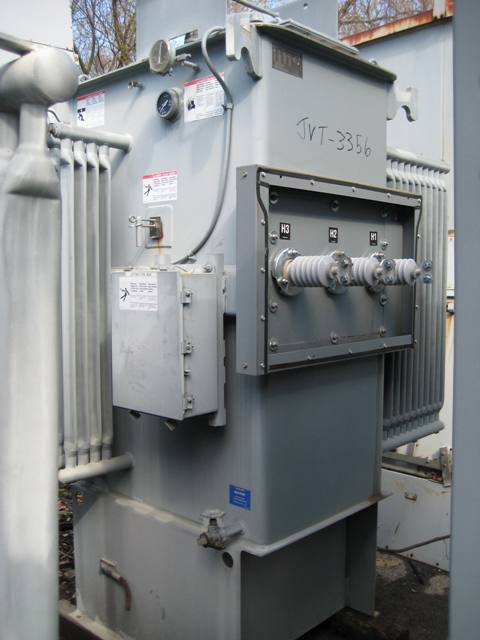

ONE (1) 750 KVA SQUARE D UNUSED SUB TRANSFORMER, 3 PHASE, 60 HERTZ, 65 DEG. C
RISE, CLASS KNAN, 5.87% IMPEDANCE, COPPER WINDINGS, SIDE X SIDE
BUSHINGS, VACUUM PRESSURE GAUGE, WINDING TEMPERATURE GAUGE, DRAIN AND
SAMPLE VALVE, LIQUID LEVEL GAUGE, BIOTEMP FILLED, TOP MOUNTED NEUTRAL

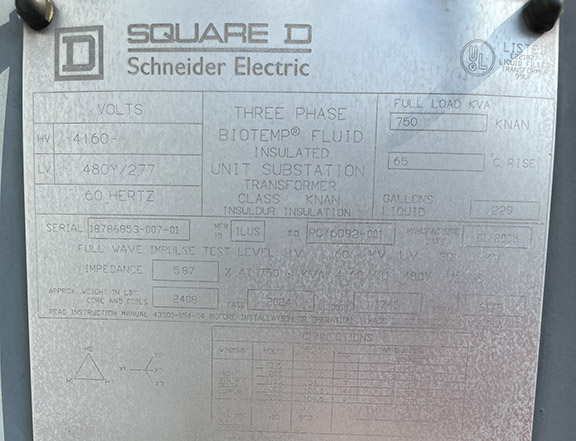

BUSHING, MFG. 2005, S/N 18786853-007-01
HIGH VOLTAGE: 4160 DELTA BIL: 60 KV
LOW VOLTAGE: 480Y/277 BIL: 30 KV
TAPS: 4370-4264-4160-4055-3950
TOTAL WEIGHT: 6,172 LBS.
CORE & COILS: 2,408 LBS.
TANK & FIT.: 2,024 LBS.
BIOTEMP: 1,740 LBS. (229 GALS.)
DIMENSIONS: 99"H X 62.5"W X 58"D
