1500 KVA, Pri 13200 D, Sec 480 D, 2003, SQ.D, PADMOUNT, LIVE FRONT/RADIAL FEED;

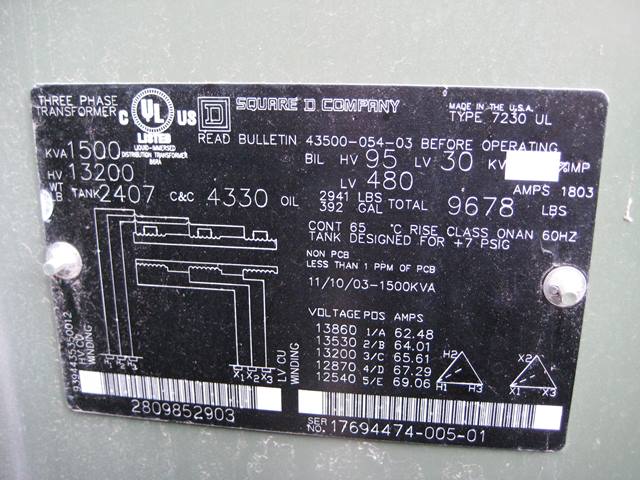

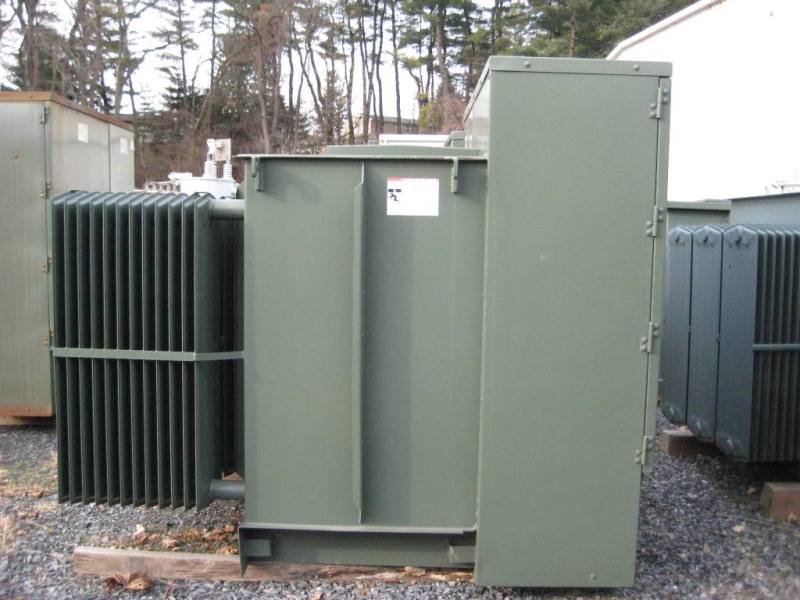

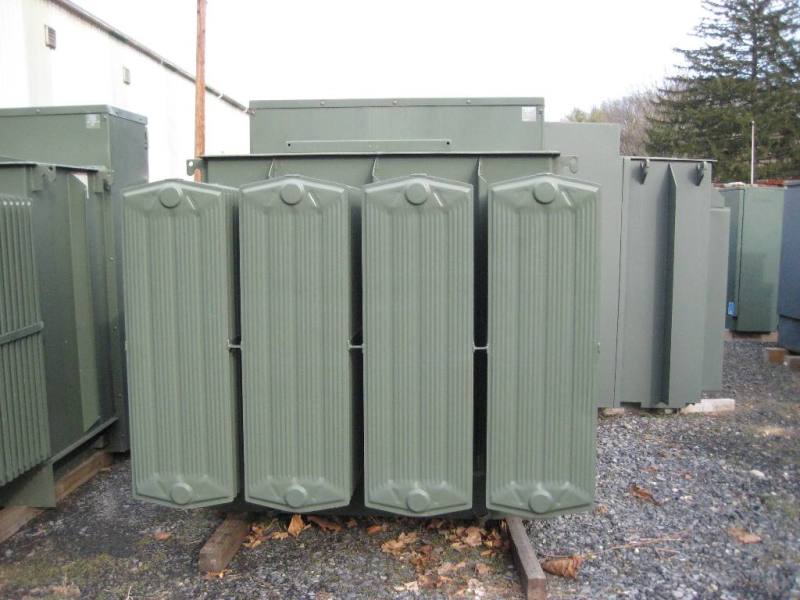

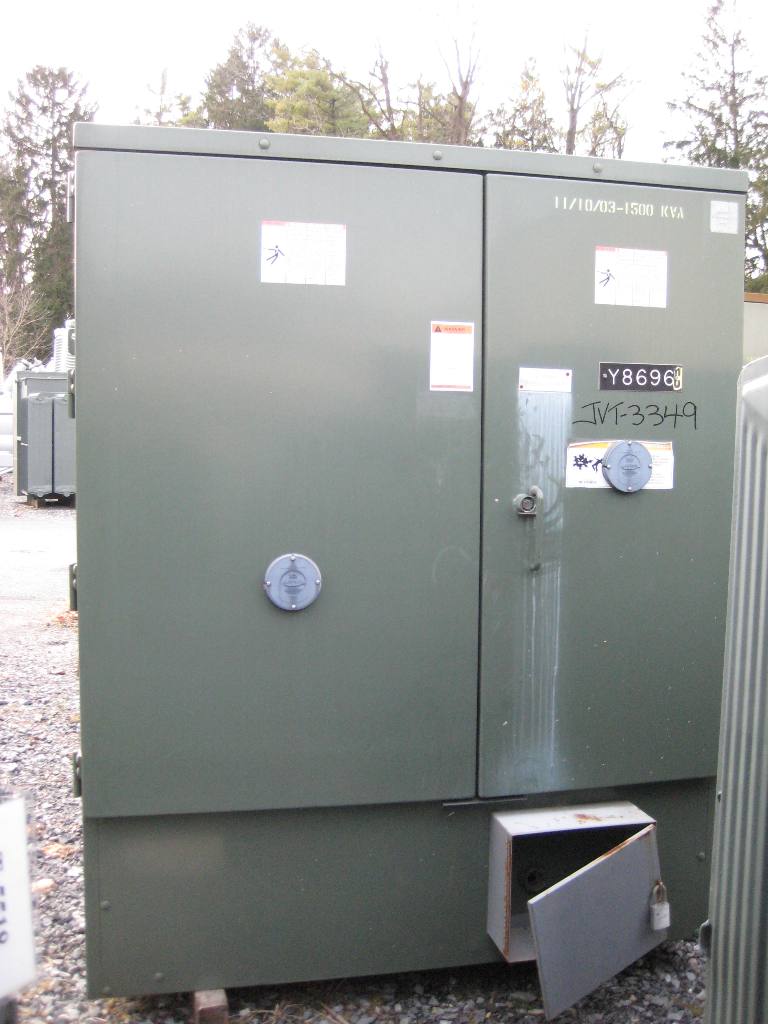

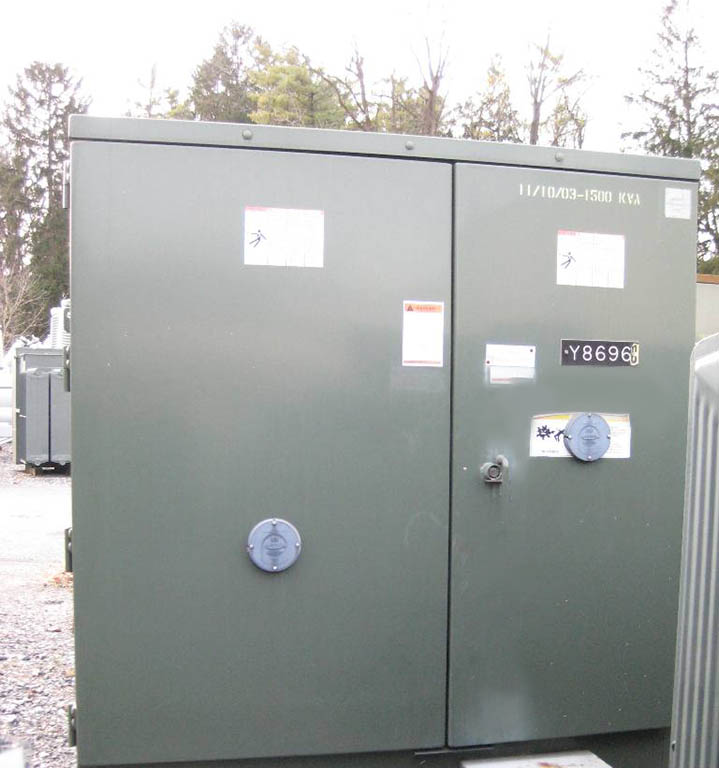

ONE (1) 1500KVA SQUARED D COMPARTMENTALIZED PADMOUNT TRANSFORMER
- 3 PHASE/ 60 HZ
- OIL FILLED
- CLASS OA
- 65 DEGREE C RISE
- 5.6% IMPEDANCE
- MFG 11/03

HV: 13200 VOLTS DELTA BIL: 95KV
LV: 480 VOLTS DELTA BIL: 30KV

TAPS: 13860, 13530, 13200, 12780, 12540

WEIGHTS
TOTAL : 9,678 LBS
C&C : 2,407 LBS
T&F : 4,330 LBS
FLUID : 2,941 LBS (392 GALLONS)

DIMENSIONS: 76"H x 63.5"W x 77"D

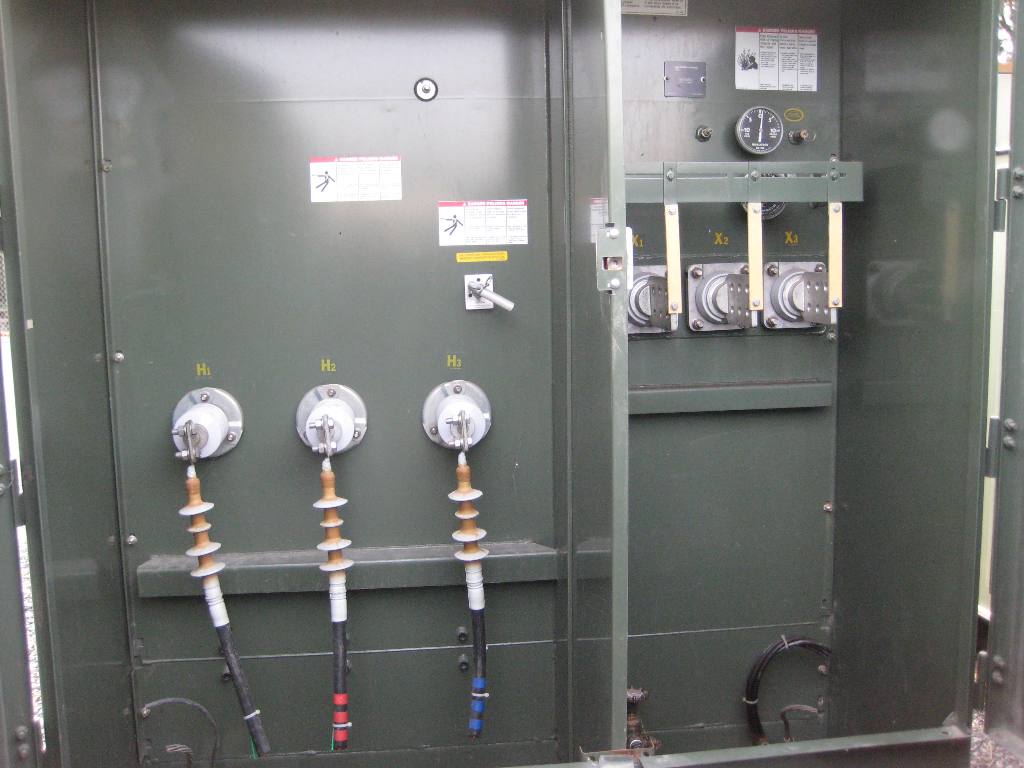

BUSHING HEIGHTS: HV-37.5" LV-47"
