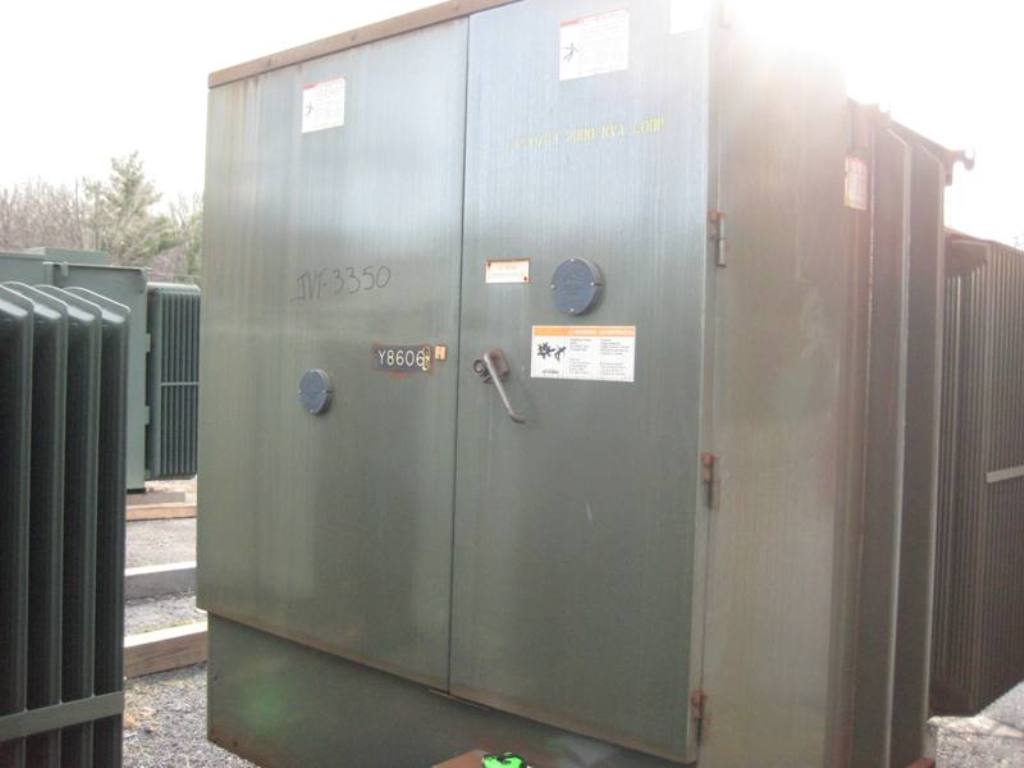

2000 KVA, Pri 13200 D, Sec 480 D, 2003, SQUARE D, LIVE FRONT, LOOP FEED:1
PADMOUNT TRANSFORMER
Product Number:
036770
Full Product Description
JVT-3350
ONE (1) 2000 KVA SQUARE D COMPARTMENTALIZED PADMOUNT TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS ONAN, 65 DEG. C RISE, 5.7% IMPEDANCE, LIVE FRONT,
LOOP FEED, UL LISTED, 4 POS. LBOR SWITCH, BAYONET FUSES, LIQUID
TEMPERATURE GAUGE, PRESSURE VACUUM GAUGE, DRAIN & SAMPLE VALVE,

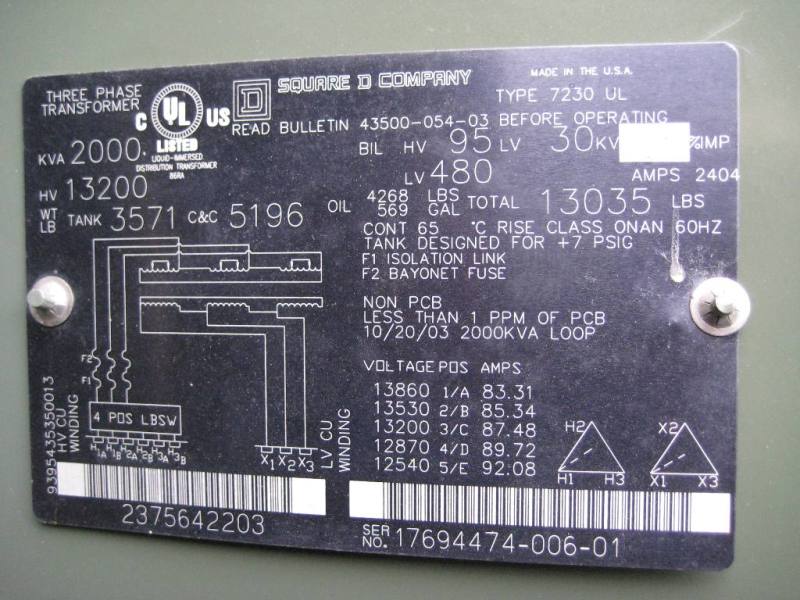

COPPER WINDINGS, MFG. 10/2003, S/N 17694474-006-01

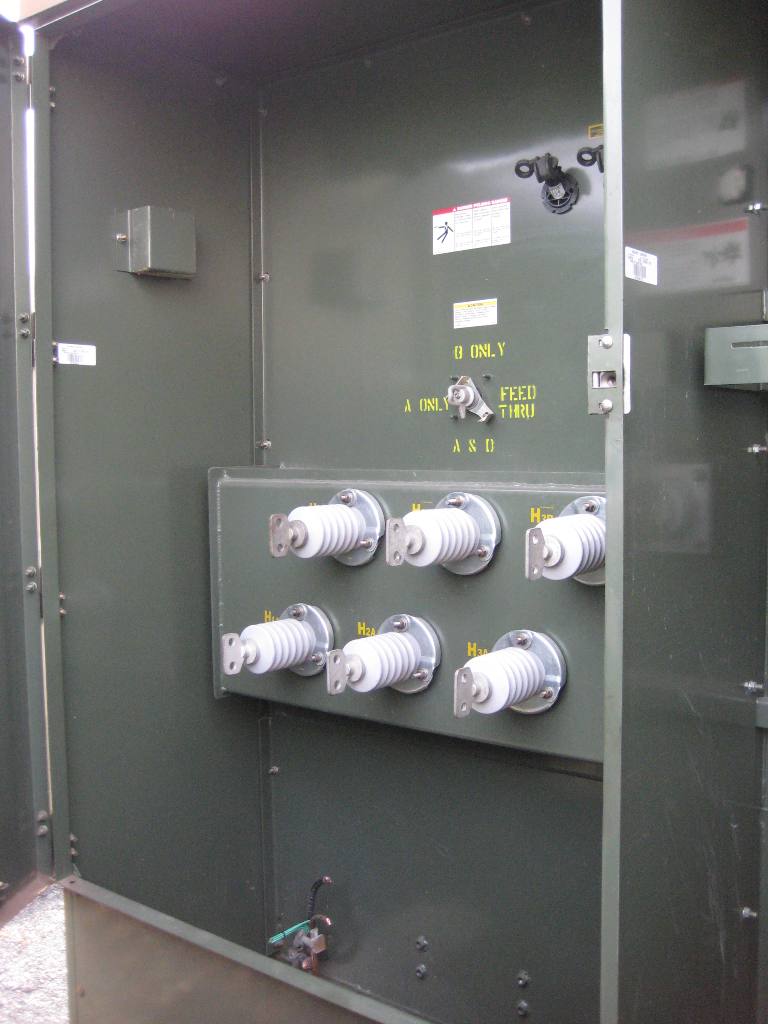

HIGH VOLTAGE: 13200 DELTA BIL: 95 KV

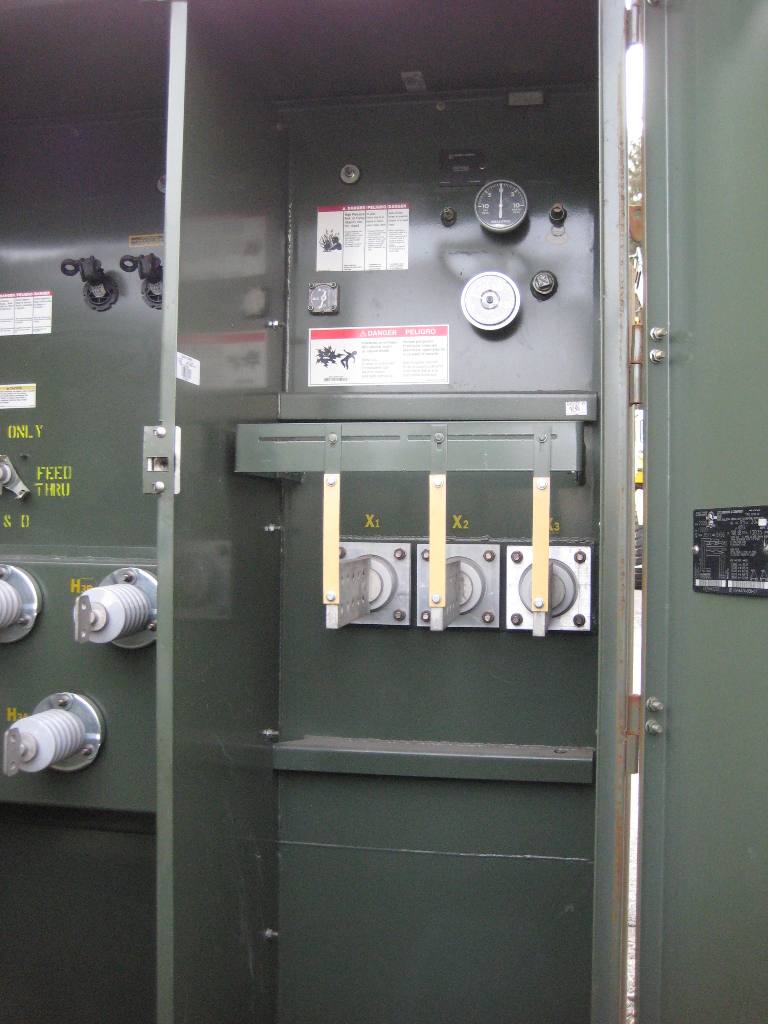

LOW VOLTAGE: 480 DELTA BIL: 30 KV
TAPS: 13860-13530-13200-12870-12540
TOTAL WEIGHT: 13,035 LBS.
CORE & COILS: 3,571 LBS.
TANK & FIT.: 5,196 LBS.
OIL: 567 GALS. 4,268 LBS.
DIMENSIONS: 84"H X 73"W X 92"D
