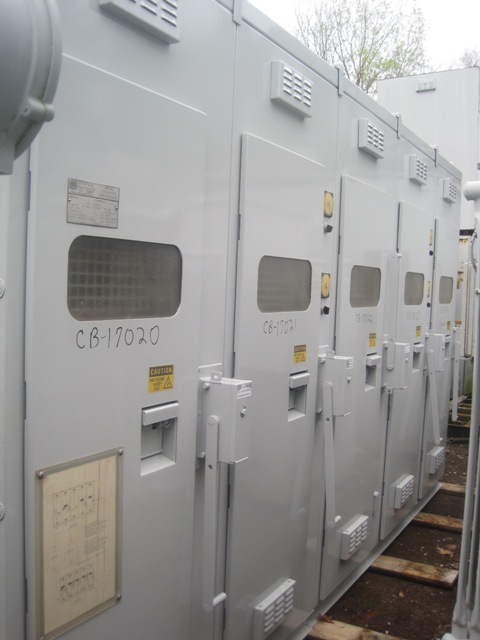

600 Amp, EEI, No. AUTO JET, 4800 V., OUTDOOR LINE-UP, ALTERNATE PREFERRED, 5:1

CB-17020A

ONE (1) OUTDOOR HOUSED LINE-UP OF SWITCHES IN AN ALTERNATE PREFERRED
CONFIGURATION WITH 600 AMP MAIN BUSS, MAIN-TIE-MAIN. EACH SWITCH
DESCRIBED:

CB-17020:

ONE (1) 600 AMP EEI AUTO JET SWITCH
OUTDOOR HOUSED
4800 VOLT
5500 VOLT MAX.
40 KA MOM.
40 KA FAULT CLOSING
25 KA SHORT CIRCUIT
620 MVA
3 X GE TRANQUIL 3.0 KV ARRESTERS, 2.55 MCOV

CB-17021:

ONE (1) 600 AMP EEI AUTO JET SWITCH
OUTDOOR HOUSED
4800 VOLT
5500 VOLT MAX.
40 KA MOM.
40 KA FAULT CLOSING
25 KA SHORT CIRCUIT
620 MVA
S & C TYPE SM-5 400E FUSES
3 X GE TRANQUIL 3.0 KV ARRESTERS, 2.55 MCOV
1 X AMMETER WITH SELECTOR SWITCH
1 X VOLTMETER WITH SELECTOR SWITCH
3 X GE 600:5 CT'S
3 X GE TYPE JVM-3 PTS RATED 2400 VOLT, 20:1

CB-17022: (IN-LINE MOUNT) TIE

ONE (1) 600 AMP EEI AUTO JET SWITCH
OUTDOOR HOUSED
4800 VOLT
5500 VOLT MAX.
40 KA MOM.
40 KA FAULT CLOSING
25 KA SHORT CIRCUIT
620 MVA
S&C TYPE SM-5 400E FUSES
3 X GE TRANQUIL 3.0 KV ARRESTERS, 2.55 MCOV
1 X GE CPT RATED 5 KVA, 4160Y - 240/120

CB-17023:

ONE (1) 600 AMP EEI AUTO JET SWITCH
OUTDOOR HOUSED
4800 VOLT
5500 VOLT MAX.
40 KA MOM.
40 KA FAULT CLOSING
25 KA SHORT CIRCUIT
620 MVA
S & C TYPE SM-5 400E FUSES
3 X GE TRANQUIL 3.0 KV ARRESTERS, 2.55 MCOV
1 X AMMETER WITH SELECTOR SWITCH
1 X VOLTMETER WITH SELECTOR SWITCH
3 X GE 600:5 CT'S
3 X GE TYPE JVM-3 PR'S RATED 2400V, 20:1

CB-17024:

ONE (1) 600 AMP EEI AUTO JET SWITCH
OUTDOOR HOUSED
4800 VOLT
5500 VOLT MAX.
40 KA MOM.
40 KA FAULT CLOSING
25 KA SHORT CIRCUIT
620 MVA
3 X GE TRANQUIL 3.0 KV ARRESTERS, 2.55 MCOV
