1500 KVA, Pri 13200 D, Sec 480 D, 2003, SQUARE D, LIVE FRONT, RADIAL:1

JVT-3329

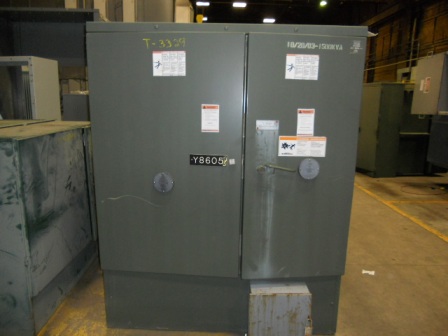

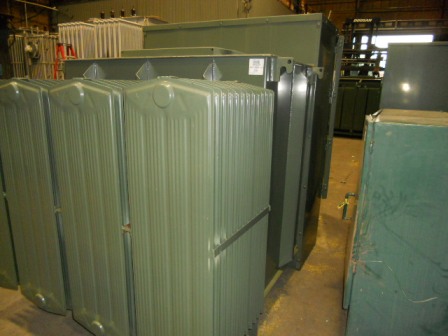

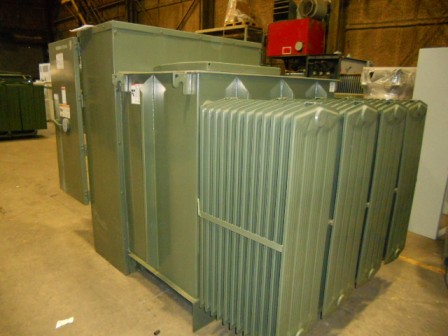

ONE (1) 1500 KVA SQUARE D COMPARTMENTALIZED PADMOUNT TRANSFORMER, 3 PHASE,

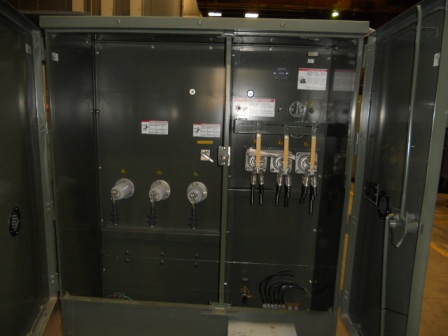

60 HERTZ, CLASS OA, 65 DEG. C RISE, 5.6% IMPEDANCE, LIVE FRONT,
RADIAL FEED, COPPER WINDINGS, DRAIN AND SAMPLE VALVE, DIAL TYPE
THERMOMETER, LIQUID LEVEL GAUGE, PRESSURE VACUUM GAUGE, PRESSURE

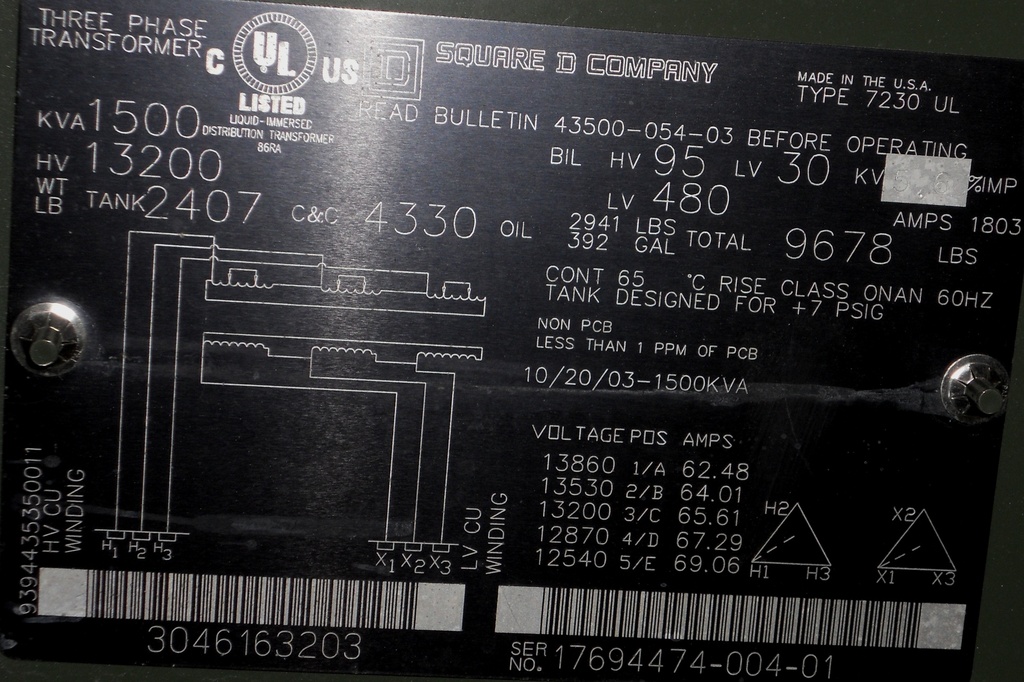

RELIEF VALVE, S/N 17694474-004-01, MFG. 2003

HIGH VOLTAGE: 13200 DELTA BIL: 95 KV
LOW VOLTAGE: 480 DELTA BIL: 30 KV
TAPS: 13860-13530-13200-12870-12540

TOTAL WEIGHT: 9,678 LBS.
CORE & COILS: 4,330 LBS.
TANK & FIT.: 2,407 LBS.
OIL: 2,941 LBS. (335 GALS.)
DIMENSIONS: 75.5"H X 68"W X 89"D
HV BUSHING: 38"H
LV BUSHING: 47"H
