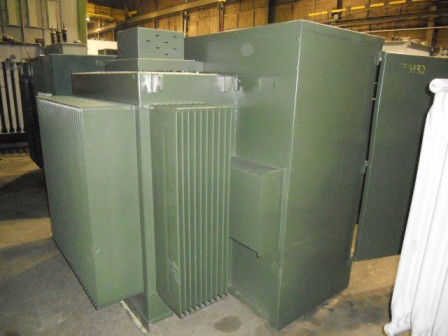

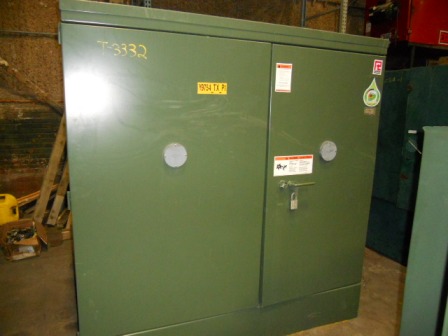

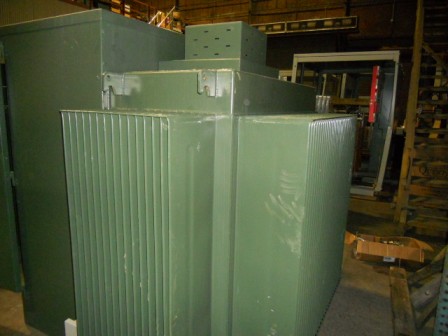

1500 KVA, Pri 13200 D, Sec 480 D, PAUWELS, DEAD FRONT, LOOP FEED, 2008, FR3:1
PADMOUNT TRANSFORMER
Product Number:
036646
Full Product Description
JVT-3332
ONE (1) 1500 KVA PAUWELS COMPARTMENTALIZED PADMOUNT TRANSFORMER, 3 PHASE,

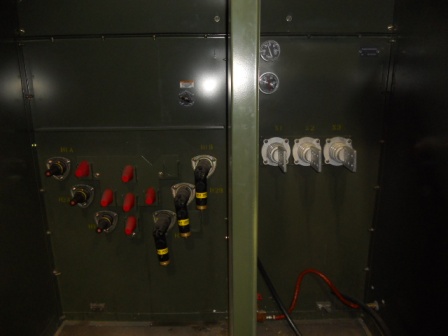

60 HERTZ, CLASS OA, 65 DEG. C RISE, 5.61% IMPEDANCE, DEAD FRONT,
LOOP FEED, COPPER WINDINGS, DRAIN AND SAMPLE VALVE, DIAL TYPE
THERMOMETER, LIQUID LEVEL GAUGE, PRESSURE VACUUM GAUGE, PRESSURE

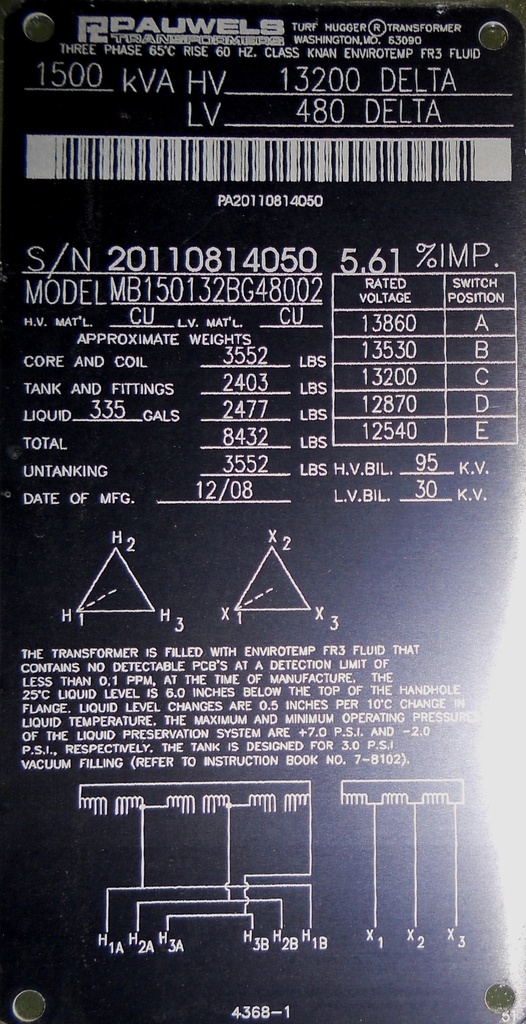

RELIEF VALVE, S/N 20110814050, MFG. 2008, FR3
HIGH VOLTAGE: 13200 DELTA BIL: 95 KV
LOW VOLTAGE: 480 DELTA BIL: 30 KV
TAPS: 13860-13530-13200-12870-12540
TOTAL WEIGHT: 8,432 LBS.
CORE & COILS: 3,552 LBS.
TANK & FIT.: 2,403 LBS.
OIL: 2,477 LBS. (335 GALS.)
DIMENSIONS: 77"H X 84"W X 76.5"D
HV BUSHING: 39"H
LV BUSHING: 42.5"H
