  2. 4000 KVA, Pri 12470 D, Sec 600Y/347, 1990, HAMMOND, DRY TYPE, CORE & COILS:1

4000 KVA, Pri 12470 D, Sec 600Y/347, 1990, HAMMOND, DRY TYPE, CORE & COILS:1

https://belyeapower.redstormlabs.com/web/image/product.template/26248/image_1920?unique=e3adc27

CORE & COILS

$ 0.00 0.0 USD $ 0.00

$ 0.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Product Number: 036605
    Request Quote

    Full Product Description

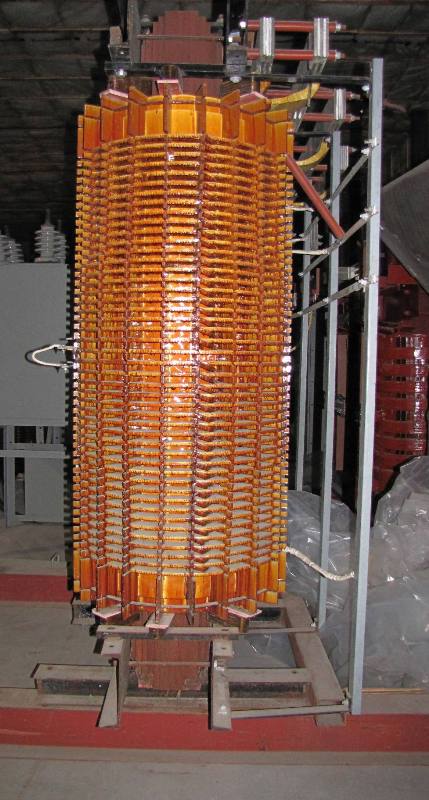

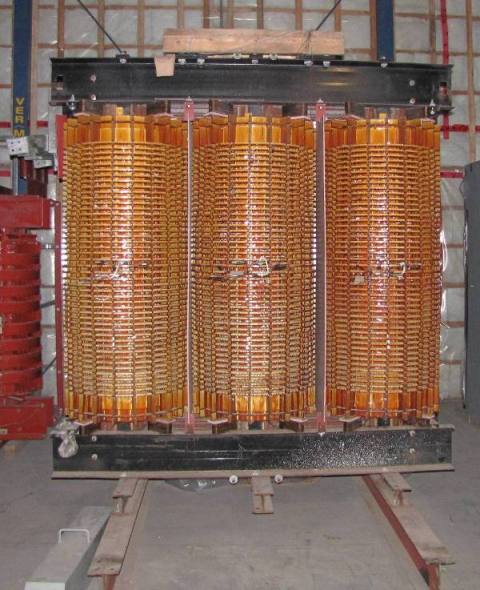

    ONE (1) 4000 KVA HAMMOND DRY TYPE TRANSFORMER, CORE & COILS, 3 PHASE, 60 HZ,
    CLASS ANN, 150/220 DEG. C RISE, 7.3% IMPEDANCE, ALUMINUM WINDINGS

    HIGH VOLTAGE: 12470 DELTA BIL: 95 KV
    LOW VOLTAGE: 600Y/347
    TAPS: 13094-12782-12470-12158-11846

    TOTAL WEIGHT: 15,800 LBS.
    CORE & COILS: 14,000 LBS.
    DIMENSIONS: 84"H X 36"W X 110"L
