150 KVA, Pri 13800 D, Sec 208 Y, SQUARE D, PADMOUNT, LIVE FRONT, RADIAL FEED

STOCK #: JVT-3321

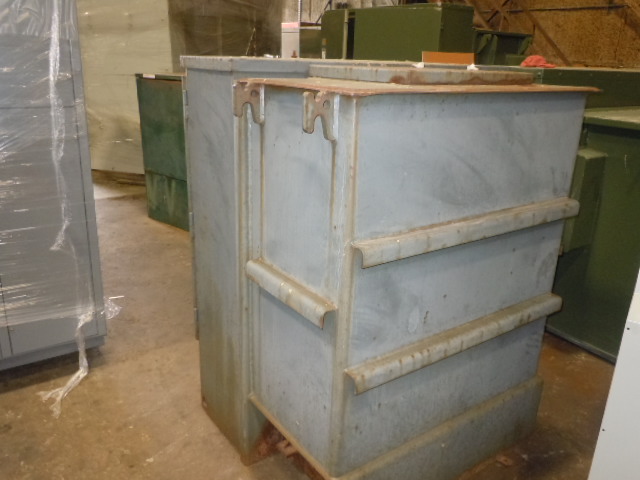

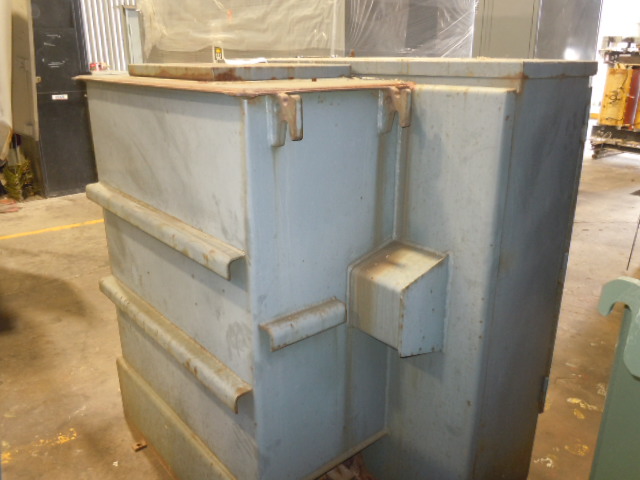

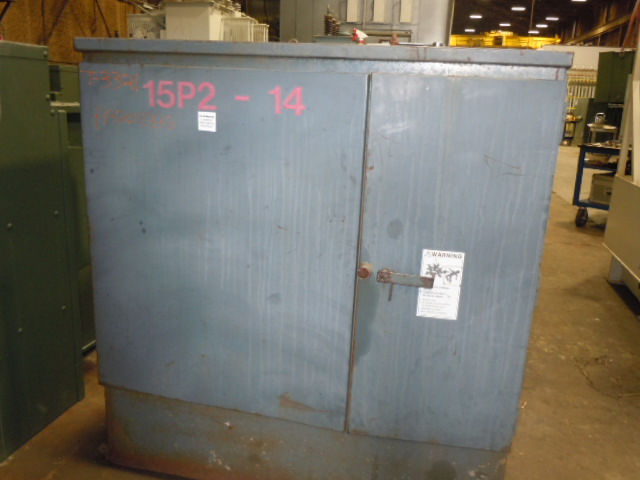

ONE (1) - 150 KVA SQ.D COMPARTMENTALIZED PADMOUNT TRANSFORMER
- 3 PH/60HZ
- CLASS OA
- 3.9% IMPEDANCE
- LIVE FRONT/RADIAL FEED
- ALUMINUM WINDINGS

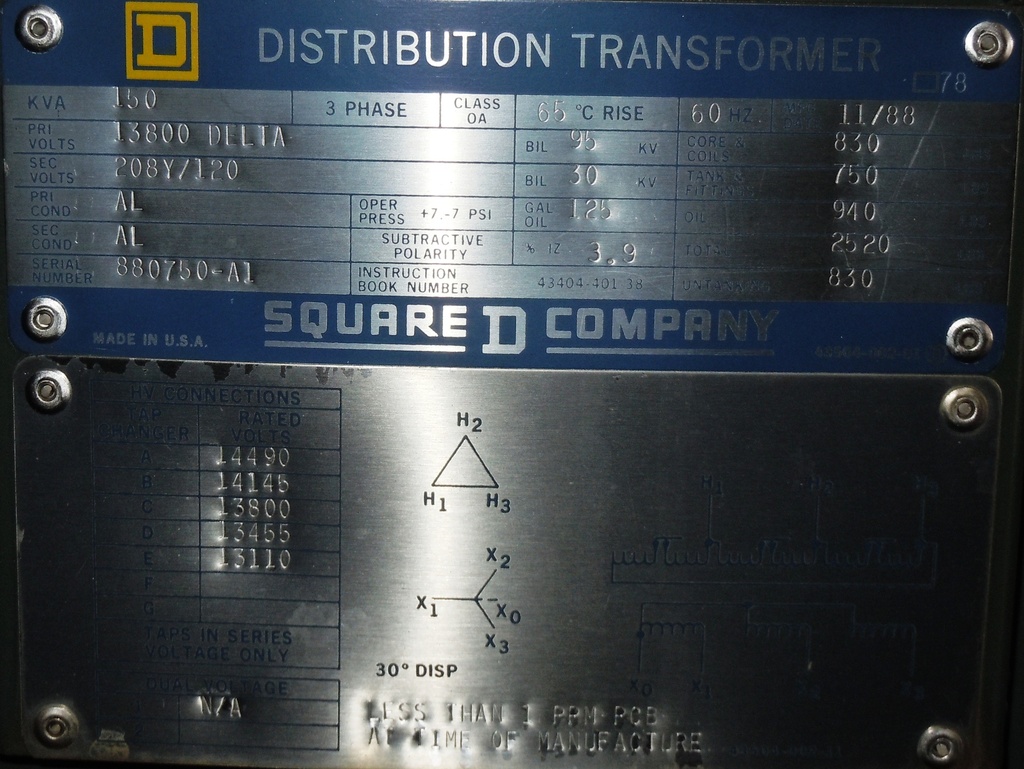

HV: 13800 VOLTS DELTA BIL:95KV
LV: 208Y/120 VOLTS WYE BIL:30KV

TAPS: 14490, 14145, 13800, 13455, 13110

ACCESSORIES: DRAIN & SAMPLE VALVE, LIQUID LEVEL GUAGE,
PRESSURE RELIEF DEVICE, DIAL TYPE THERMOMETER

WEIGHTS<
CORE & COILS: 830 LBS<
TANK & FITTINGS: 750 LBS<
FLUID (125 GAL.): 940 LBS<
TOTAL: 2,250 LBS<

DIMENSIONS: 59.5"H x 43"W x 58"D<
