  2. 5000/5600 KVA, Pri 12470 D, Sec 4160Y/2400, 1987, WESTINGHOUSE, SUBSTATION:1

5000/5600 KVA, Pri 12470 D, Sec 4160Y/2400, 1987, WESTINGHOUSE, SUBSTATION:1

https://belyeapower.redstormlabs.com/web/image/product.template/26097/image_1920?unique=632d99c

SUBSTATION TRANSFORMER

$ 0.00 0.0 USD $ 0.00

$ 0.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Product Number: 036449
    Request Quote

    Full Product Description

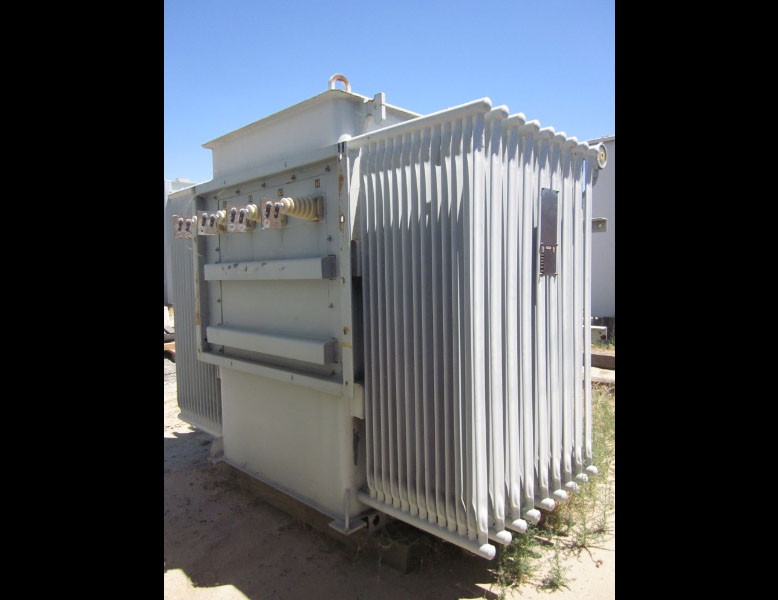

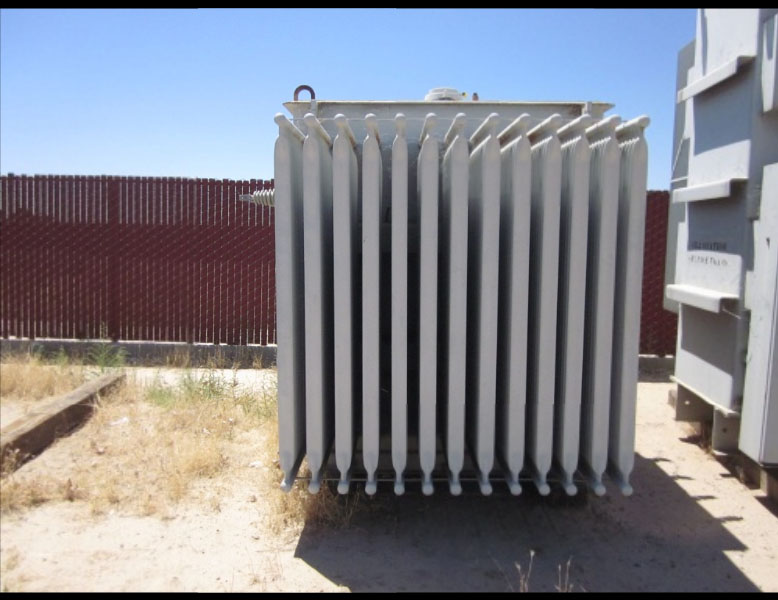

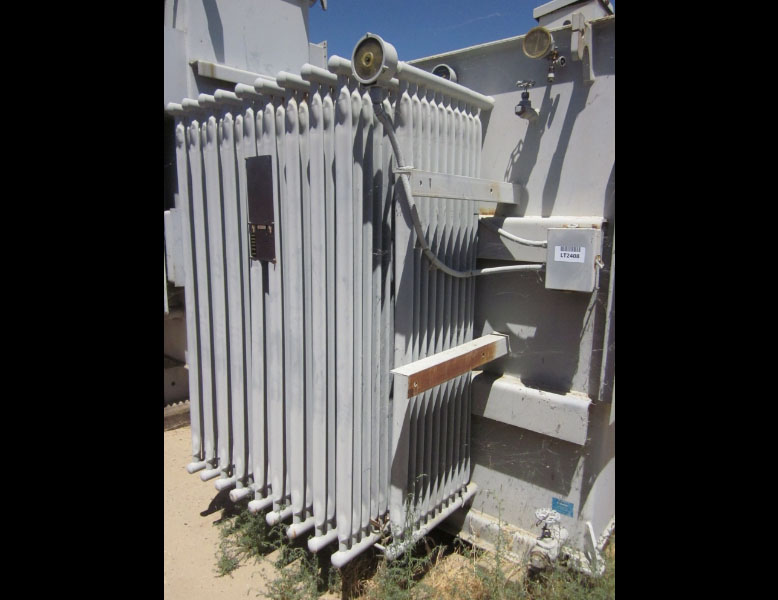

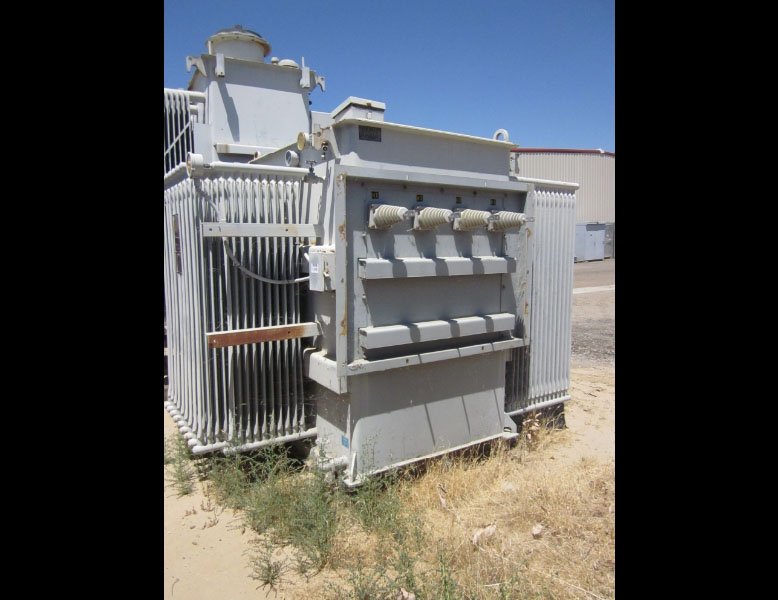

    ONE (1) 5000/5600 KVA WESTINGHOUSE SUBSTATION TRANSFORMER, 3 PHASE, 60 HERTZ,
    CLASS OA, 55/65 DEG. C RISE, 4.36% IMPEDANCE, ALUMINUM WINDINGS,
    LIQUID LEVEL GAUGE WITH CONTACTS, LIQUID TEMPERATURE GAUGE WITH
    CONTACTS, PRESSURE VACUUM GAUGE, FLANGE X FLANGE, MFG. 1987

    HIGH VOLTAGE: 12470 DELTA BIL: 150 KV
    LOW VOLTAGE: 4160Y/2400 BIL: 75 KV
    TAPS: 13094-12780-12470-12159-11849

    TOTAL WEIGHT: 24,919 LBS.
    OIL: 699 GALS.: 5,242 LBS.
    DIMENSIONS: 90"H X 96"W
    FOOTPRINT: 75"W X 55"D
